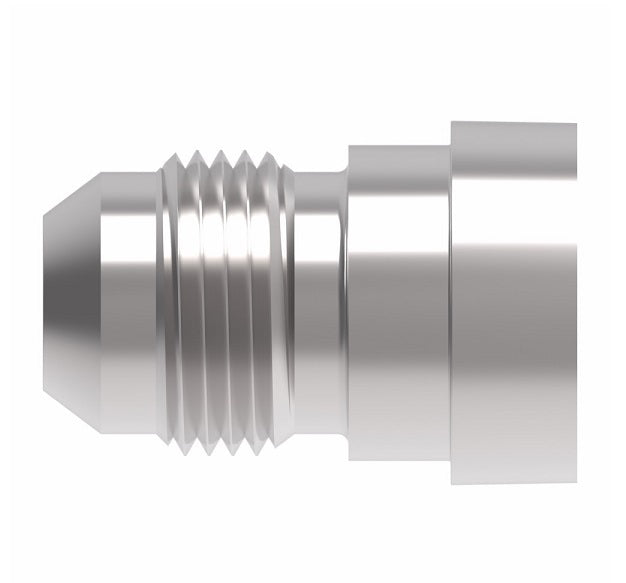

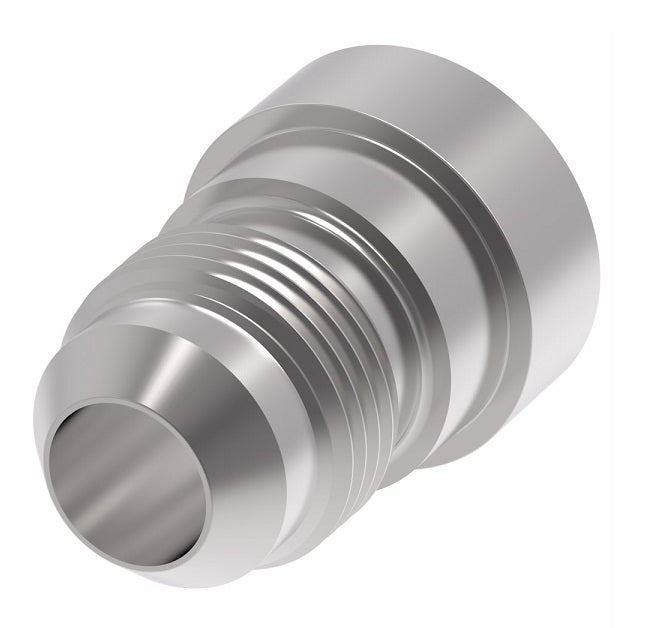

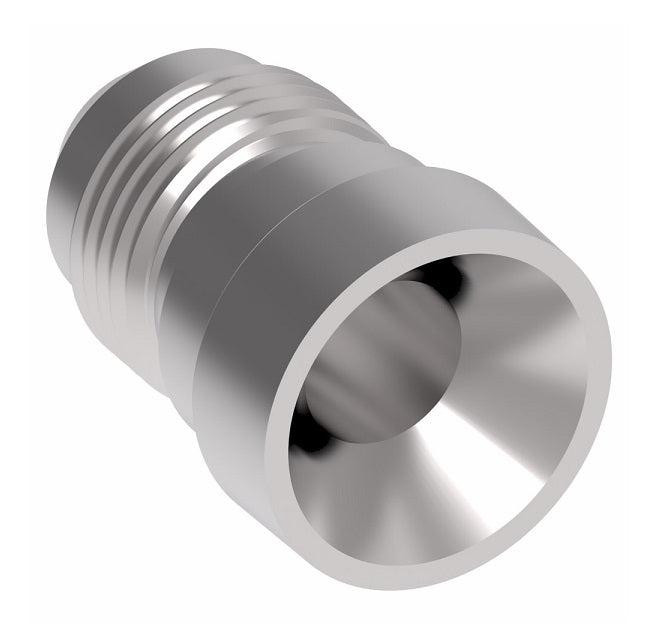

FF1066-0604S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -06 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel
FF1066-0604S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -06 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel
FF1066-0604S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -06 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel
FF1066-0604S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -06 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel

FF1066-0604S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -06 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel

$4.05 - $4.05
$4.05
$4.05 - $4.05
$4.05

Aeroquip® by Danfoss
Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter
Female 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1066-0604S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 1/4in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070123
Part Number
Steel		 Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A
221501-6-4S FF1066-0604S 0.25" 9/16-18 7/16-20 1.40"
221501-8-4S FF1066-0804S 0.25" 3/4-16 7/16-20 1.50"
221501-8-6S FF1066-0806S 0.38" 3/4-16 9/16-18 1.50"
221501-10-6S FF1066-1006S 0.38" 7/8-14 9/16-18 1.62"
- FF1066-1204S 0.75" 1-1/16-12 7/16-20 -
221501-12-6S FF1066-1206S 0.38" 1-1/16-12 9/16-18 1.69"
221501-12-8S FF1066-1208S 0.50" 1-1/16-12 3/4-16 1.79"
221501-16-6S FF1066-1606S 0.38" 1-5/16-12 9/16-18 1.84"
221501-16-8S FF1066-1608S 0.50" 1-5/16-12 3/4-16 1.94"
221501-16-10S - 0.63" 1-5/16-12 7/8-14 2.04"
221501-16-12S FF1066-1612S 0.75" 1-5/16-12 1-1/16-12 2.15"
- FF1066-2012S 0.75" 1-5/8-12 1-1/16-12 -
221501-20-16S FF1066-2016S 1.00" 1-5/8-12 1-5/16-12 2.23"
