FF1066-0804S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -08 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel
FF1066-0804S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -08 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel
FF1066-0804S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -08 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel
FF1066-0804S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -08 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel

FF1066-0804S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter (without Nut) | -08 Female 37° JIC Flare x -04 Male 37° JIC Flare Steel

$4.73 - $4.73
$4.73
$4.73 - $4.73
$4.73

Aeroquip® by Danfoss

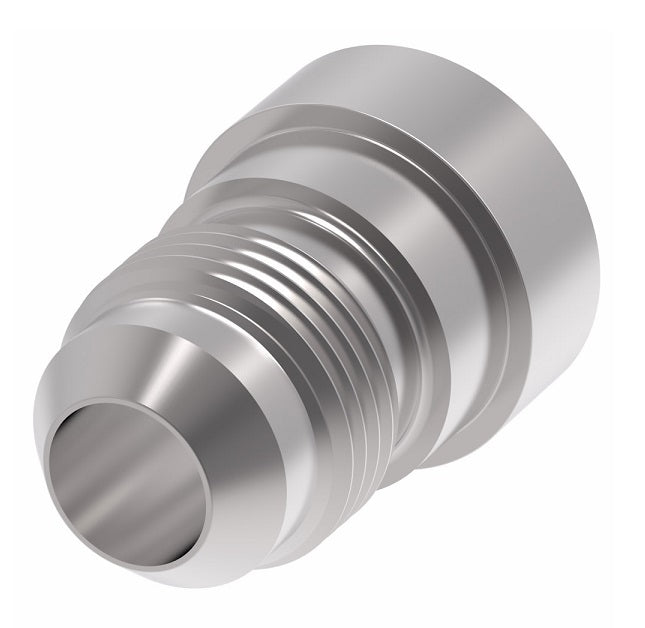

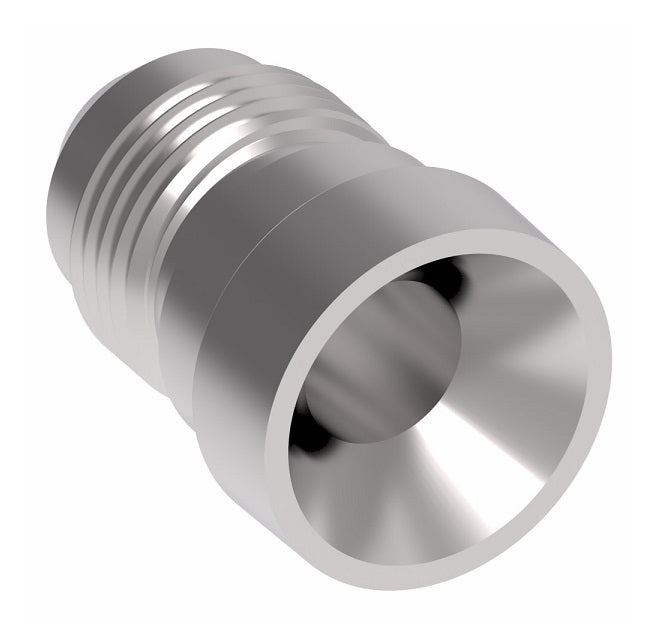

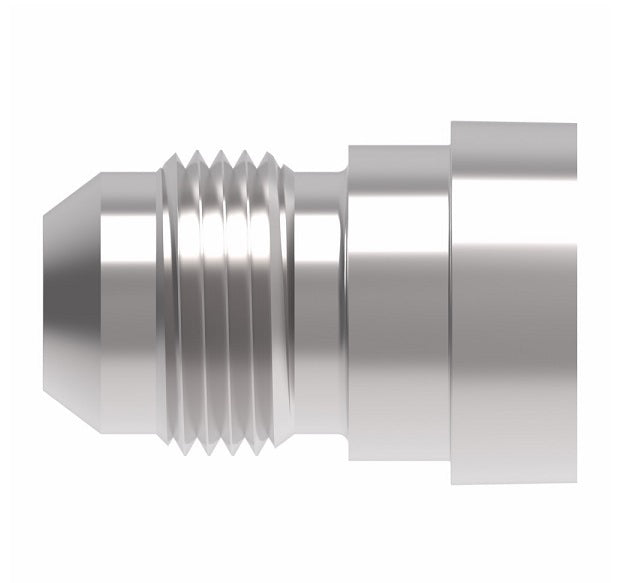

Female 37° JIC Flare Swivel Reducer/Male 37° JIC Flare Adapter
Female 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1066-0804S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/4in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070123
Part Number
Steel		 Part Number
Steel
without Nut		 Tube O.D. Thread T1 Thread T2 A
221501-6-4S FF1066-0604S 0.25" 9/16-18 7/16-20 1.40"
221501-8-4S FF1066-0804S 0.25" 3/4-16 7/16-20 1.50"
221501-8-6S FF1066-0806S 0.38" 3/4-16 9/16-18 1.50"
221501-10-6S FF1066-1006S 0.38" 7/8-14 9/16-18 1.62"
- FF1066-1204S 0.75" 1-1/16-12 7/16-20 -
221501-12-6S FF1066-1206S 0.38" 1-1/16-12 9/16-18 1.69"
221501-12-8S FF1066-1208S 0.50" 1-1/16-12 3/4-16 1.79"
221501-16-6S FF1066-1606S 0.38" 1-5/16-12 9/16-18 1.84"
221501-16-8S FF1066-1608S 0.50" 1-5/16-12 3/4-16 1.94"
221501-16-10S - 0.63" 1-5/16-12 7/8-14 2.04"
221501-16-12S FF1066-1612S 0.75" 1-5/16-12 1-1/16-12 2.15"
- FF1066-2012S 0.75" 1-5/8-12 1-1/16-12 -
221501-20-16S FF1066-2016S 1.00" 1-5/8-12 1-5/16-12 2.23"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
