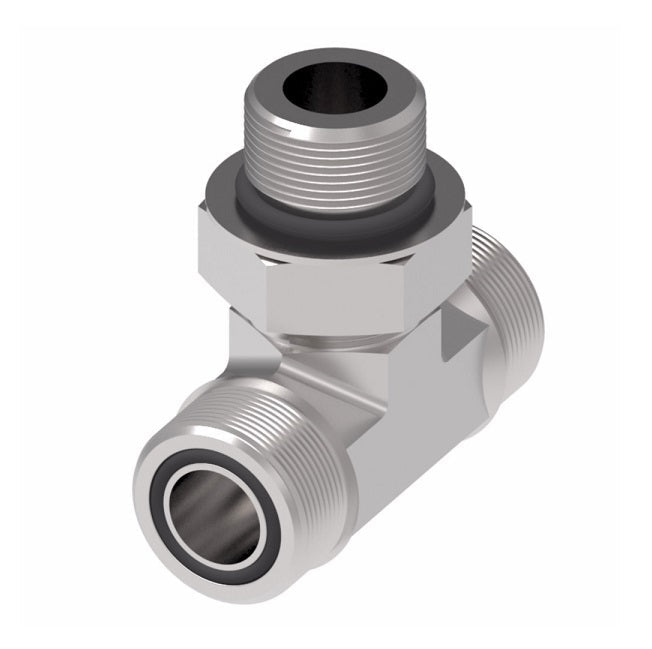

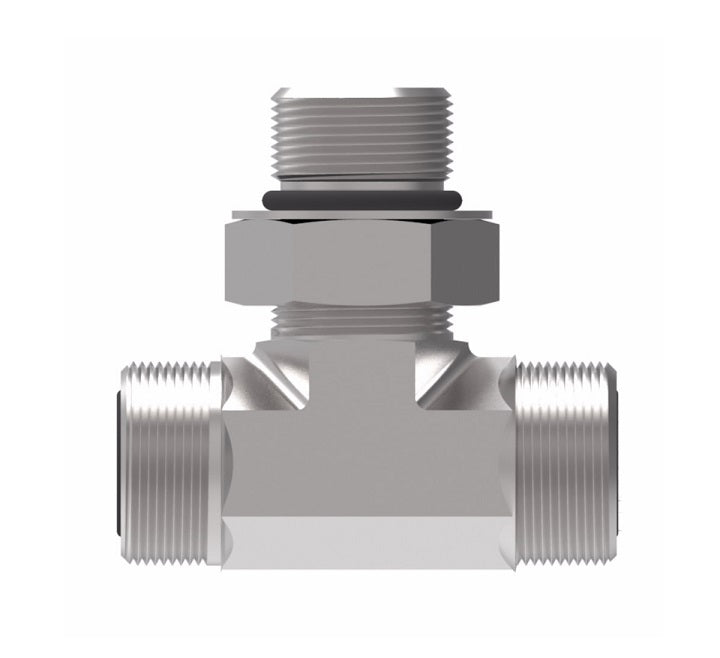

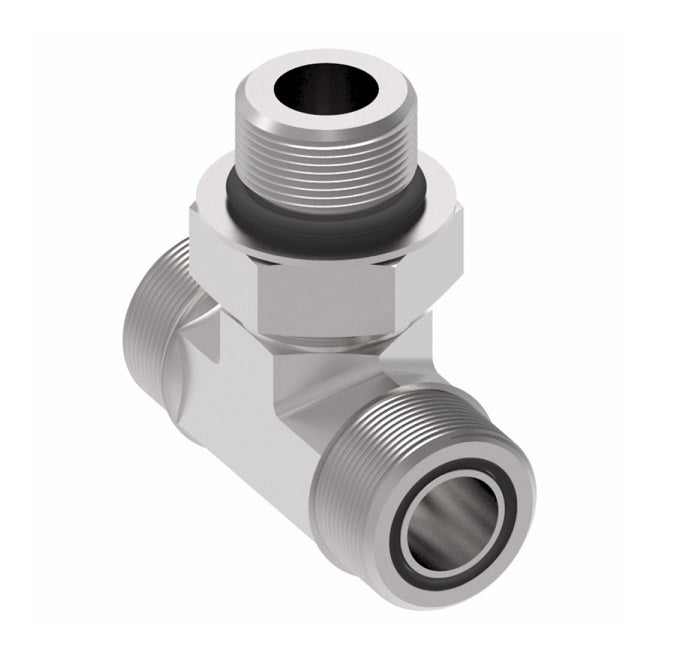

FF1861T1210S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
FF1861T1210S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
FF1861T1210S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel
FF1861T1210S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel

FF1861T1210S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -10 Male SAE O-Ring Boss | Steel

$131.38 - $131.38
$131.38
$131.38 - $131.38
$131.38

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Branch Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1861T1210S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 5/8in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520429
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B C
FF1861T0404S 0.25" 9/16-18 7/16-20 0.85" 1.29" 0.43"
FF1861T0606S 0.38" 11/16-16 9/16-18 0.98" 1.45" 0.47"
FF1861T0608S 0.38" 11/16-16 3/4-16 1.04" 1.60" 0.55"
FF1861T0806S 0.50" 13/16-16 9/16-18 1.10" 1.97" 0.55"
FF1861T0808S 0.63" 1-14 3/4-16 1.44" 1.97" 0.63"
FF1861T1010S 0.75" 1-3/16-12 7/8-14 1.47" 2.17" 0.63"
FF1861T1210S 0.75" 1-3/16-12 7/8-14 1.62" 2.35" 0.73"
FF1861T1212S 0.75" 1-3/16-12 1-5/16-12 1.64" 2.35" 0.73"
FF1861T1216S 1.00" 1-7/16-12 1-5/16-12 1.64" 2.35" 0.73"
FF1861T1616S 1.00" 1-7/16-12 1-5/16-12 1.64" 2.35" 0.71"
FF1861T2020S 1.25" 1-11/16-12 1-5/8-12 1.76" 2.45" 0.73"
