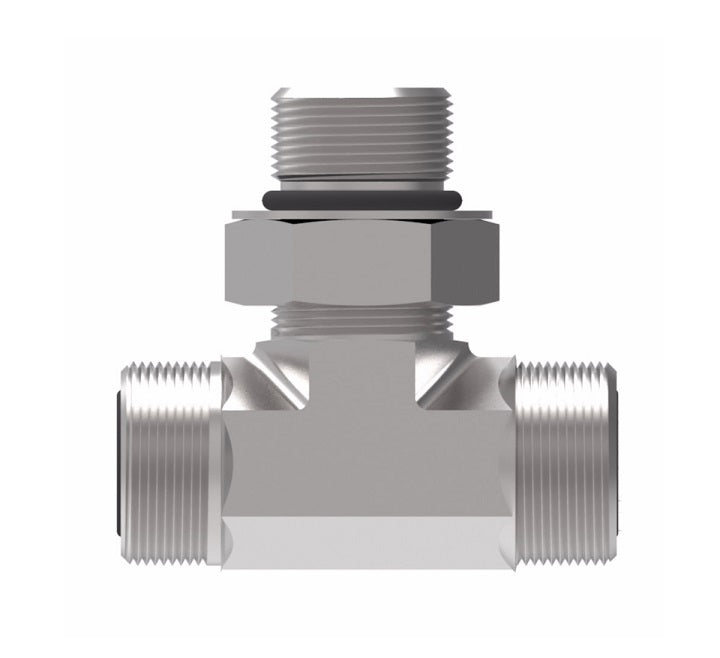

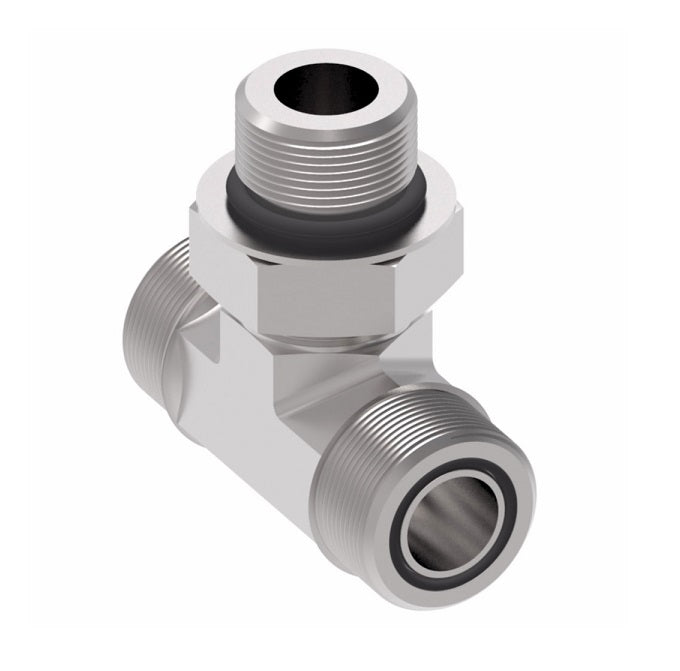

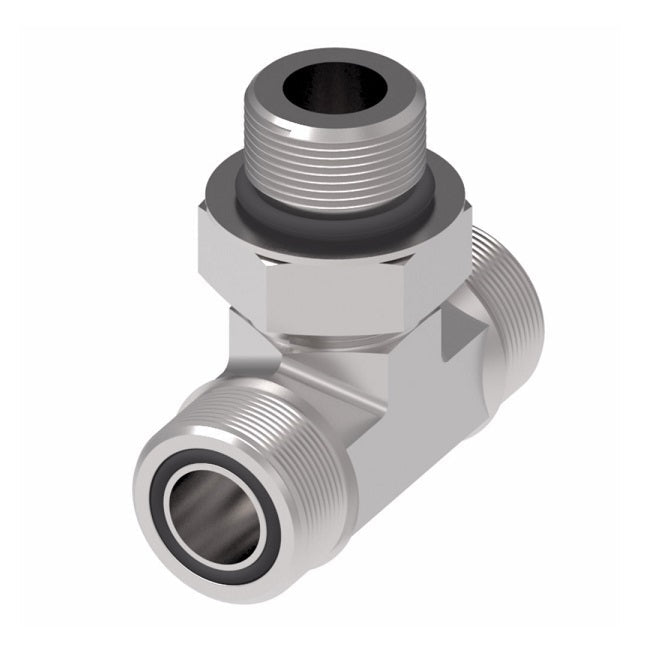

FF1861T1216S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Steel

FF1861T1216S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -16 Male SAE O-Ring Boss | Steel

$42.14 - $42.14
$42.14
$42.14 - $42.14
$42.14

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Branch Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF1861T1216S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 1in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520429
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B C
FF1861T0404S 0.25" 9/16-18 7/16-20 0.85" 1.29" 0.43"
FF1861T0606S 0.38" 11/16-16 9/16-18 0.98" 1.45" 0.47"
FF1861T0608S 0.38" 11/16-16 3/4-16 1.04" 1.60" 0.55"
FF1861T0806S 0.50" 13/16-16 9/16-18 1.10" 1.97" 0.55"
FF1861T0808S 0.63" 1-14 3/4-16 1.44" 1.97" 0.63"
FF1861T1010S 0.75" 1-3/16-12 7/8-14 1.47" 2.17" 0.63"
FF1861T1210S 0.75" 1-3/16-12 7/8-14 1.62" 2.35" 0.73"
FF1861T1212S 0.75" 1-3/16-12 1-5/16-12 1.64" 2.35" 0.73"
FF1861T1216S 1.00" 1-7/16-12 1-5/16-12 1.64" 2.35" 0.73"
FF1861T1616S 1.00" 1-7/16-12 1-5/16-12 1.64" 2.35" 0.71"
FF1861T2020S 1.25" 1-11/16-12 1-5/8-12 1.76" 2.45" 0.73"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
