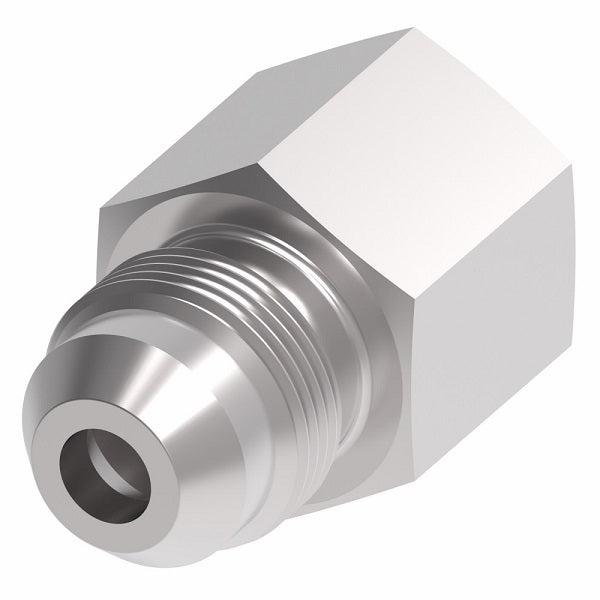

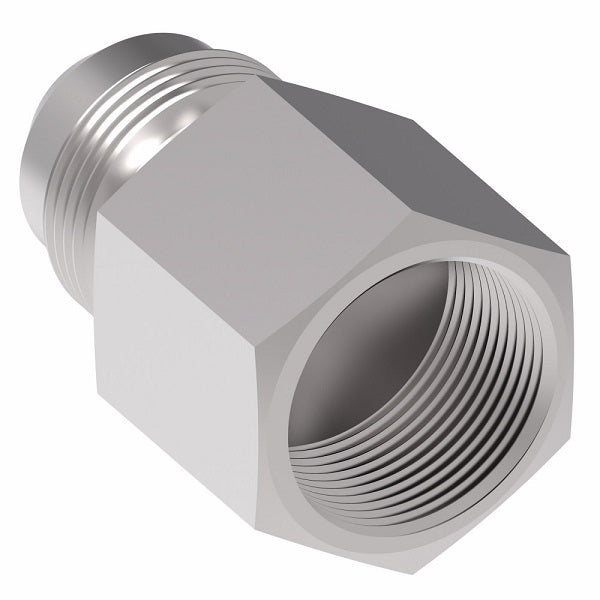

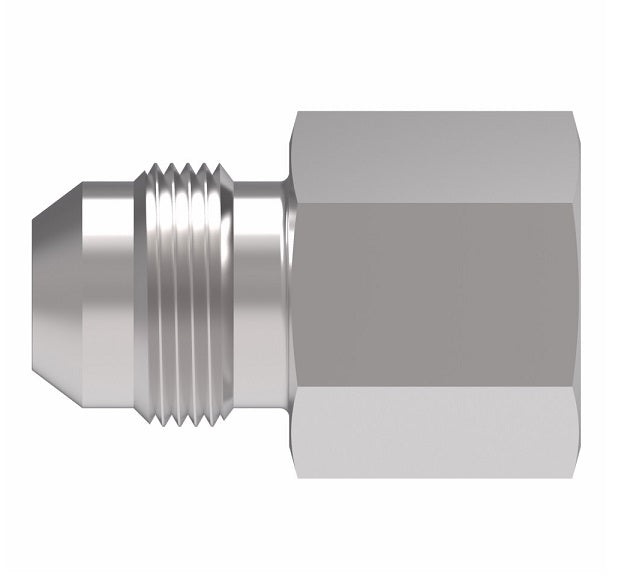

FF1981-030-0606 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -06 Male 37° JIC Flare x -06 Female 37° JIC Flare | 0.030" Drill Size | Steel
FF1981-030-0606 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -06 Male 37° JIC Flare x -06 Female 37° JIC Flare | 0.030" Drill Size | Steel
FF1981-030-0606 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -06 Male 37° JIC Flare x -06 Female 37° JIC Flare | 0.030" Drill Size | Steel
FF1981-030-0606 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -06 Male 37° JIC Flare x -06 Female 37° JIC Flare | 0.030" Drill Size | Steel

FF1981-030-0606 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -06 Male 37° JIC Flare x -06 Female 37° JIC Flare | 0.030" Drill Size | Steel

$31.98 - $31.98
$31.98
$31.98 - $31.98
$31.98

Aeroquip® by Danfoss
Restrictor 37° Male Flare/37° Female Adapter
Male 37° JIC Flare x Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1981-030-0606 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 3/8in Female JIC
Material(s): Steel
Steel
Part Number 		Tube O.D. Drill Size Thread T1 Thread T2 A B*
FF1981-000-0404 0.25" - 7/16-20 7/16-20 1.14" 0.69"
FF1981-031-0404 0.25" 0.031" 7/16-20 7/16-20 1.14" 0.69"
FF1981-045-0404 0.25" 0.045" 7/16-20 7/16-20 1.14" 0.69"
FF1981-047-0404 0.25" 0.047" 7/16-20 7/16-20 1.14" 0.69"
FF1981-000-0606 0.38" - 9/16-18 9/16-18 1.19" 0.72"
FF1981-015-0606 0.38" 0.015" 9/16-18 9/16-18 1.19" 0.72"
FF1981-020-0606 0.38" 0.020" 9/16-18 9/16-18 1.19" 0.72"
FF1981-030-0606 0.38" 0.030" 9/16-18 9/16-18 1.19" 0.72"
FF1981-031-0606 0.38" 0.031" 9/16-18 9/16-18 1.19" 0.72"
FF1981-039-0606 0.38" 0.039" 9/16-18 9/16-18 1.19" 0.72"
FF1981-047-0606 0.38" 0.047" 9/16-18 9/16-18 1.19" 0.72"
FF1981-060-0606 0.38" 0.060" 9/16-18 9/16-18 1.19" 0.72"
FF1981-062-0606 0.38" 0.062" 9/16-18 9/16-18 1.19" 0.72"
FF1981-125-0606 0.38" 0.125" 9/16-18 9/16-18 1.19" 0.72"
FF1981-000-0808 0.50" - 3/4-16 3/4-16 1.36" 1.01"
FF1981-031-0808 0.50" 0.031" 3/4-16 3/4-16 1.36" 1.01"
FF1981-078-0808 0.50" 0.078" 3/4-16 3/4-16 1.36" 1.01"
FF1981-125-0808 0.50" 0.125" 3/4-16 3/4-16 1.36" 1.01"

*Length required to insert adapter at installation.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
