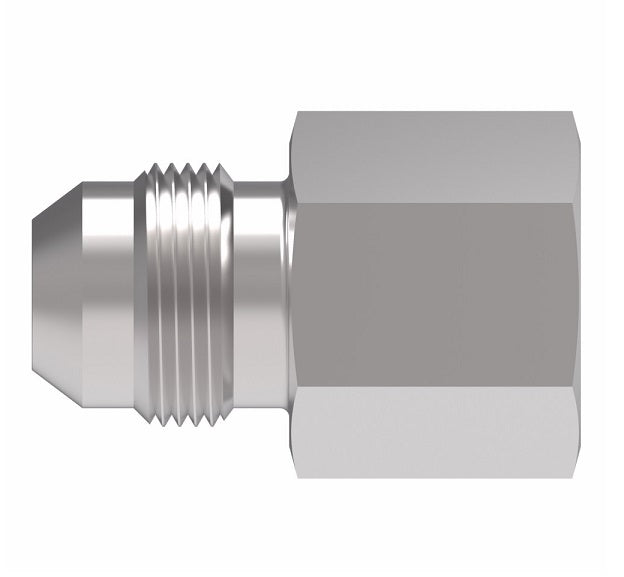

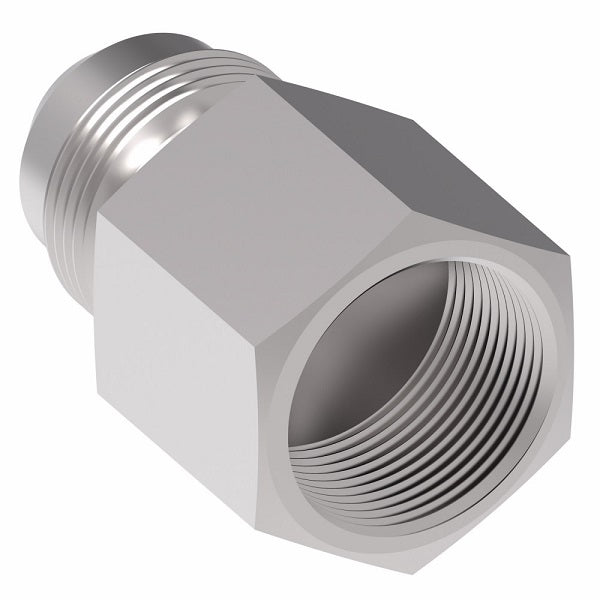

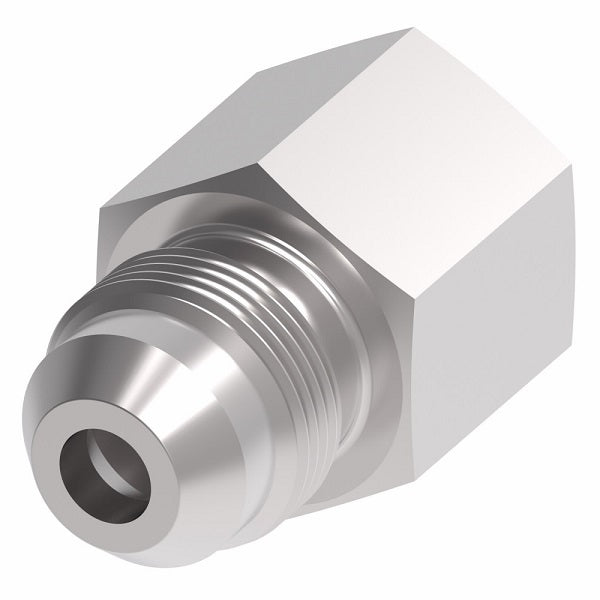

FF1981-078-0808 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -08 Male 37° JIC Flare x -08 Female 37° JIC Flare | 0.078" Drill Size | Steel
FF1981-078-0808 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -08 Male 37° JIC Flare x -08 Female 37° JIC Flare | 0.078" Drill Size | Steel
FF1981-078-0808 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -08 Male 37° JIC Flare x -08 Female 37° JIC Flare | 0.078" Drill Size | Steel
FF1981-078-0808 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -08 Male 37° JIC Flare x -08 Female 37° JIC Flare | 0.078" Drill Size | Steel

FF1981-078-0808 Aeroquip by Danfoss | Restrictor 37° Male Flare/37° Female Adapter | -08 Male 37° JIC Flare x -08 Female 37° JIC Flare | 0.078" Drill Size | Steel

$51.83 - $51.83
$51.83
$51.83 - $51.83
$51.83

Aeroquip® by Danfoss
Restrictor 37° Male Flare/37° Female Adapter
Male 37° JIC Flare x Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1981-078-0808 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 1/2in Female JIC
Material(s): Steel
Steel
Part Number 		Tube O.D. Drill Size Thread T1 Thread T2 A B*
FF1981-000-0404 0.25" - 7/16-20 7/16-20 1.14" 0.69"
FF1981-031-0404 0.25" 0.031" 7/16-20 7/16-20 1.14" 0.69"
FF1981-045-0404 0.25" 0.045" 7/16-20 7/16-20 1.14" 0.69"
FF1981-047-0404 0.25" 0.047" 7/16-20 7/16-20 1.14" 0.69"
FF1981-000-0606 0.38" - 9/16-18 9/16-18 1.19" 0.72"
FF1981-015-0606 0.38" 0.015" 9/16-18 9/16-18 1.19" 0.72"
FF1981-020-0606 0.38" 0.020" 9/16-18 9/16-18 1.19" 0.72"
FF1981-030-0606 0.38" 0.030" 9/16-18 9/16-18 1.19" 0.72"
FF1981-031-0606 0.38" 0.031" 9/16-18 9/16-18 1.19" 0.72"
FF1981-039-0606 0.38" 0.039" 9/16-18 9/16-18 1.19" 0.72"
FF1981-047-0606 0.38" 0.047" 9/16-18 9/16-18 1.19" 0.72"
FF1981-060-0606 0.38" 0.060" 9/16-18 9/16-18 1.19" 0.72"
FF1981-062-0606 0.38" 0.062" 9/16-18 9/16-18 1.19" 0.72"
FF1981-125-0606 0.38" 0.125" 9/16-18 9/16-18 1.19" 0.72"
FF1981-000-0808 0.50" - 3/4-16 3/4-16 1.36" 1.01"
FF1981-031-0808 0.50" 0.031" 3/4-16 3/4-16 1.36" 1.01"
FF1981-078-0808 0.50" 0.078" 3/4-16 3/4-16 1.36" 1.01"
FF1981-125-0808 0.50" 0.125" 3/4-16 3/4-16 1.36" 1.01"

*Length required to insert adapter at installation.
