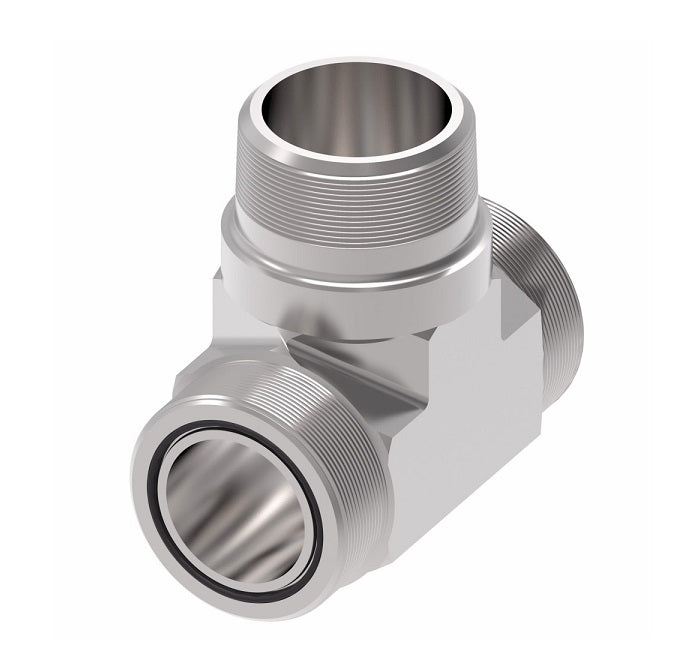

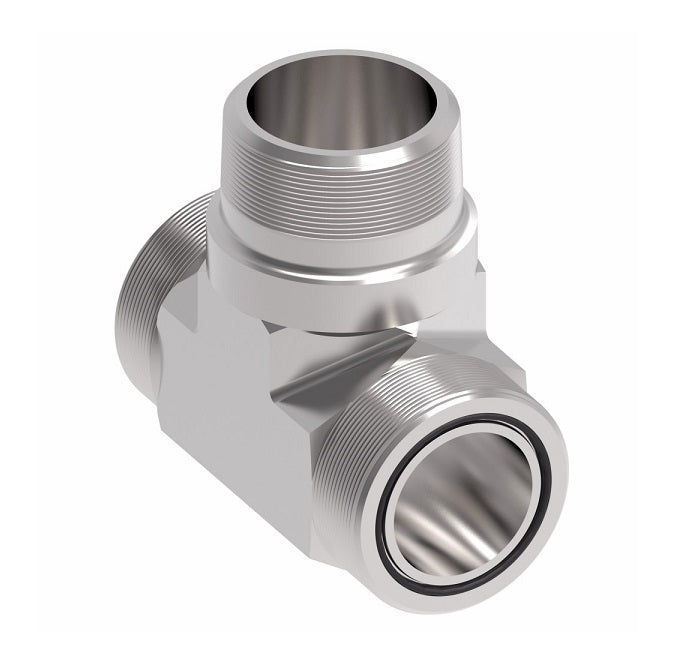

FF2001T0808S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -08 Male NPTF | Steel

FF2001T0808S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -08 Male NPTF | Steel

Name: FF2001T0808S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -08 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: FF2001T0808S Danfoss
Price: 41.99 USD
Availability: InStock

$41.99 - $41.99

$41.99

$41.99 - $41.99

$41.99

Aeroquip® by Danfoss
ORS/ORS/Male NPTF Branch Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male NPTF
Tee

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2001T0808S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Face Seal, 1/2in Male NPTF
Material(s):	Steel

Specifications:
Ref. SAE 520425
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2001T0404S	0.25"	9/16-18	1/4-18	0.92"	1.08"
FF2001T0604S	0.38"	11/16-16	1/4-18	0.98"	1.08"
FF2001T0606S	0.38"	11/16-16	3/8-18	1.04"	1.21"
FF2001T0806S	0.50"	13/16-16	3/8-18	1.10"	1.21"
FF2001T0808S	0.50"	13/16-16	1/2-14	1.21"	1.53"
FF2001T1212S	0.75"	1-3/16-12	3/4-14	1.47"	1.65"
FF2001T1616S	1.00"	1-7/16-12	1-11-1/2	1.64"	2.03"
FF2001T2424S	1.50"	2-12	1-1/2-11-1/2	1.92"	2.70"
