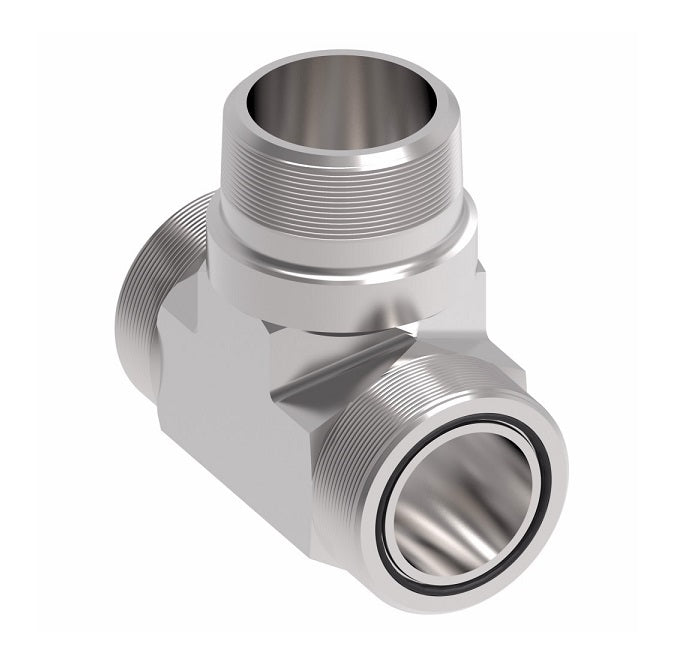

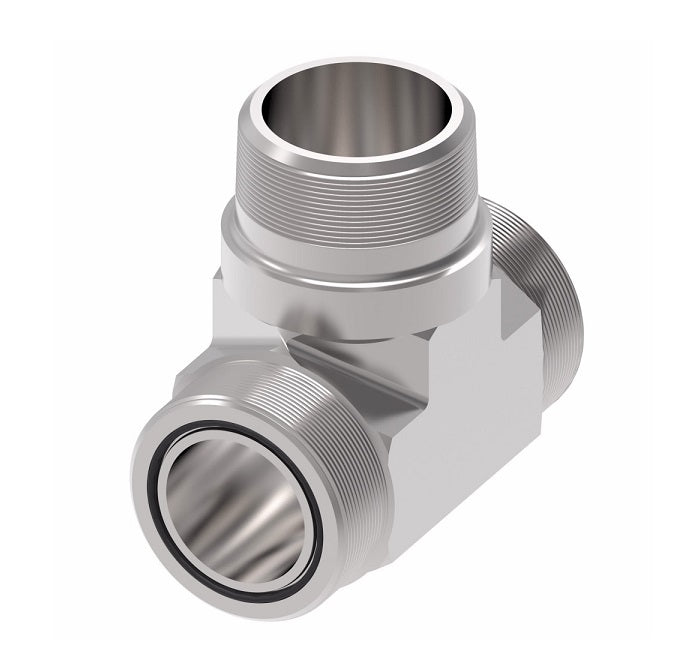

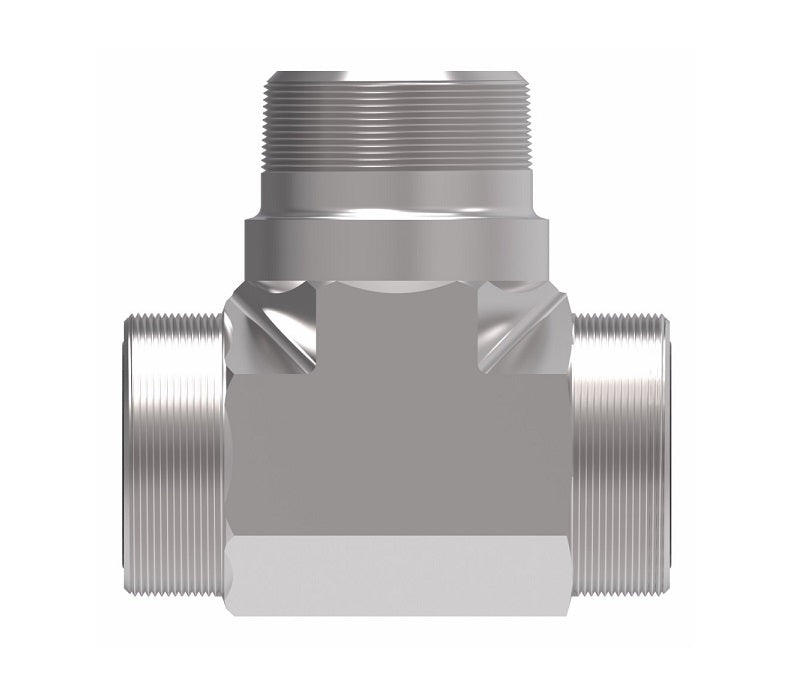

FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

FF2001T1212S Aeroquip by Danfoss | ORS/ORS/Male NPTF Branch Tee Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

$59.88 - $59.88
$59.88
$59.88 - $59.88
$59.88

Aeroquip® by Danfoss
ORS/ORS/Male NPTF Branch Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male NPTF
Tee

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2001T1212S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal, 3/4in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 520425
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2001T0404S 0.25" 9/16-18 1/4-18 0.92" 1.08"
FF2001T0604S 0.38" 11/16-16 1/4-18 0.98" 1.08"
FF2001T0606S 0.38" 11/16-16 3/8-18 1.04" 1.21"
FF2001T0806S 0.50" 13/16-16 3/8-18 1.10" 1.21"
FF2001T0808S 0.50" 13/16-16 1/2-14 1.21" 1.53"
FF2001T1212S 0.75" 1-3/16-12 3/4-14 1.47" 1.65"
FF2001T1616S 1.00" 1-7/16-12 1-11-1/2 1.64" 2.03"
FF2001T2424S 1.50" 2-12 1-1/2-11-1/2 1.92" 2.70"
