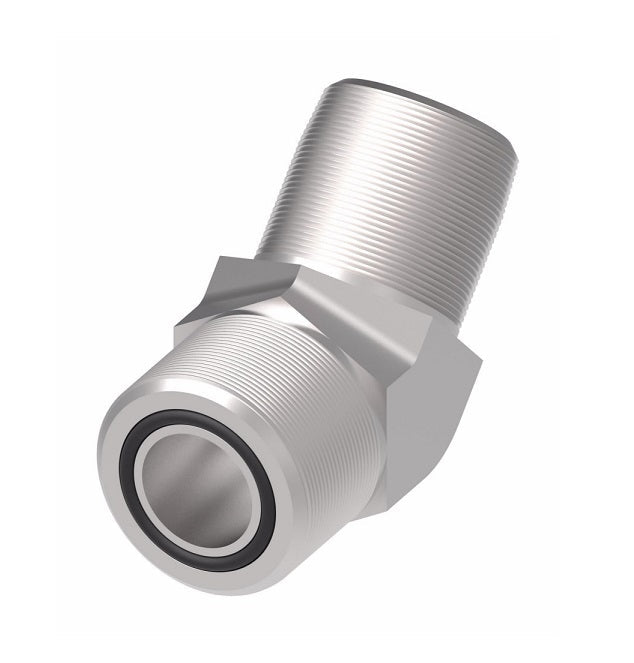

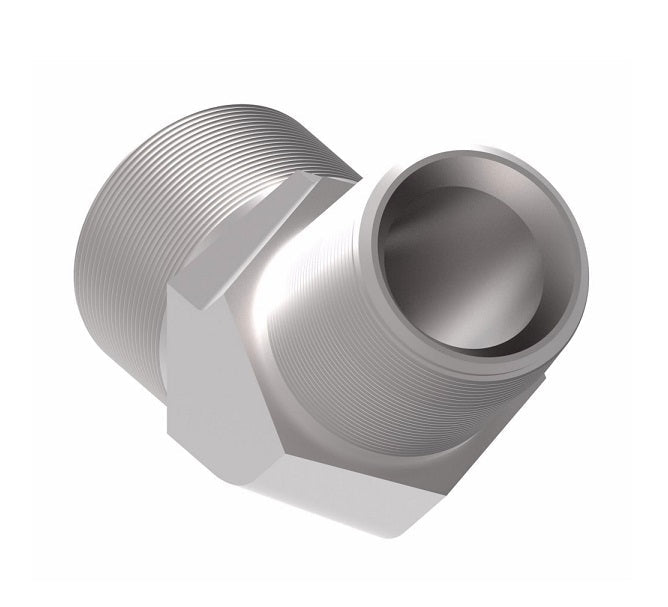

FF2093T0604S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -06 Male O-Ring Face Seal x -04 Male NPTF | Steel
FF2093T0604S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -06 Male O-Ring Face Seal x -04 Male NPTF | Steel
FF2093T0604S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -06 Male O-Ring Face Seal x -04 Male NPTF | Steel
FF2093T0604S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -06 Male O-Ring Face Seal x -04 Male NPTF | Steel

FF2093T0604S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -06 Male O-Ring Face Seal x -04 Male NPTF | Steel

$31.31 - $31.31
$31.31
$31.31 - $31.31
$31.31

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2093T0604S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male O-Ring Face Seal, 1/4in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 520302
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2093T0402S 0.25" 9/16-18 1/8-27 0.63" 0.68"
FF2093T0404S 0.25" 9/16-18 1/4-18 0.68" 0.93"
FF2093T0604S 0.38" 11/16-16 1/4-18 0.74" 0.93"
FF2093T0606S 0.38" 11/16-16 3/8-18 0.74" 1.04"
FF2093T0806S 0.50" 13/16-16 3/8-18 0.80" 1.04"
FF2093T0808S 0.50" 13/16-16 1/2-14 0.82" 1.20"
FF2093T1008S 0.63" 1-14 1/2-14 0.92" 1.20"
FF2093T1212S 0.75" 1-3/16-12 3/4-14 1.02" 1.23"
FF2093T1616S 1.00" 1-7/16-12 1-11-1/2 1.18" 1.51"
FF2093T2020S 1.25" 1-11/16-12 1-1/4-11-1/2 1.26" 1.69"
FF2093T2424S 1.50" 2-12 1-1/2-11-1/2 1.45" 1.80"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
