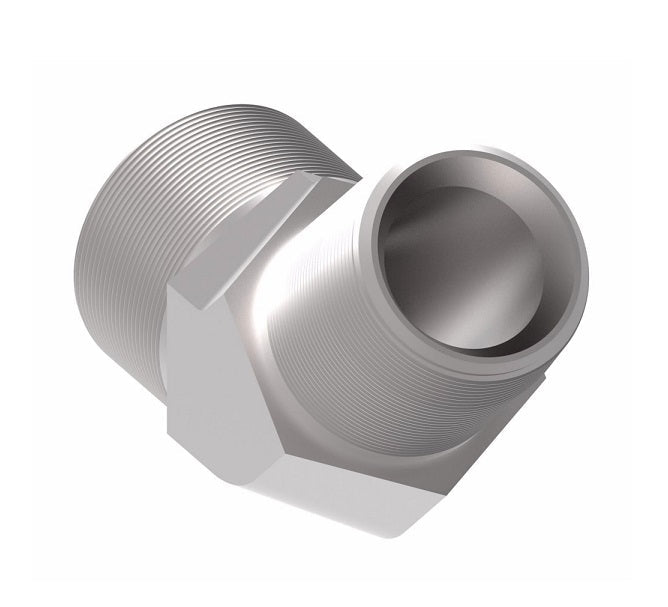

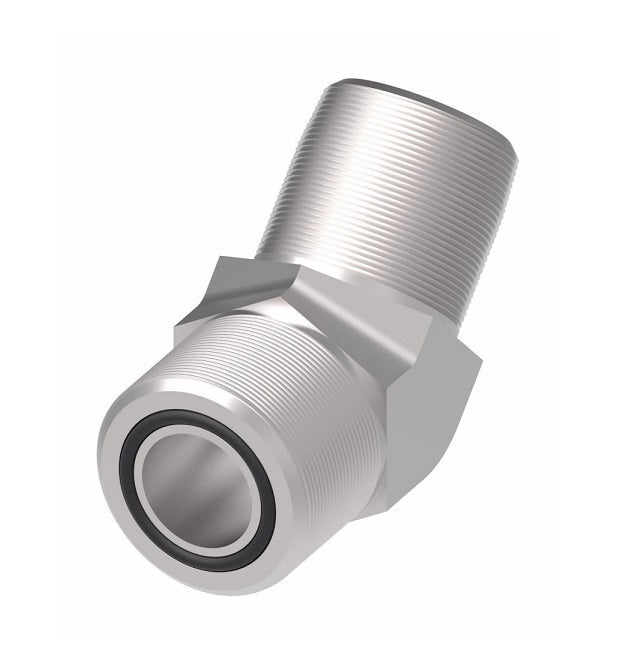

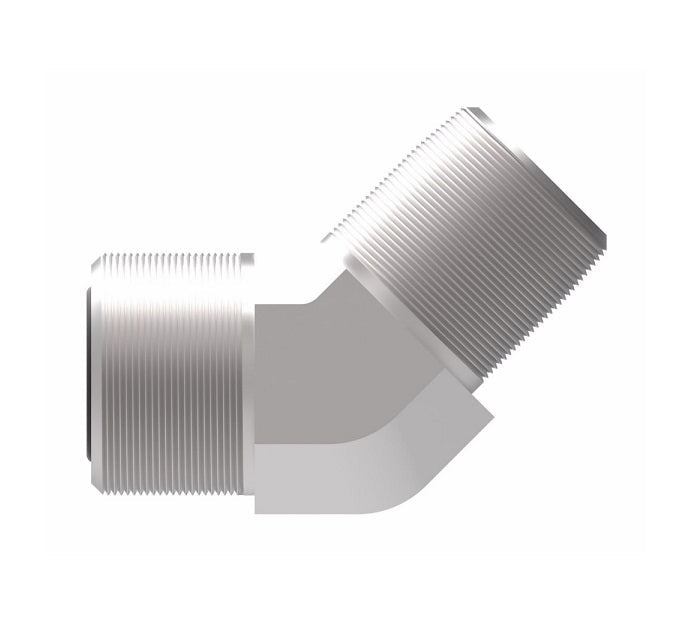

FF2093T1212S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

FF2093T1212S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male NPTF | Steel

Name: FF2093T1212S Aeroquip by Danfoss | ORS/Male NPTF 45° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male NPTF | Steel
Brand: Danfoss/Eaton
SKU: FF2093T1212S Danfoss
Price: 26.43 USD
Availability: InStock

$26.43 - $26.43

$26.43

$26.43 - $26.43

$26.43

Aeroquip® by Danfoss
ORS/Male NPTF Adapter
Male O-Ring Face Seal x Male NPTF
45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2093T1212S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Male NPTF
Material(s):	Steel

Specifications:
Ref. SAE 520302
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2093T0402S	0.25"	9/16-18	1/8-27	0.63"	0.68"
FF2093T0404S	0.25"	9/16-18	1/4-18	0.68"	0.93"
FF2093T0604S	0.38"	11/16-16	1/4-18	0.74"	0.93"
FF2093T0606S	0.38"	11/16-16	3/8-18	0.74"	1.04"
FF2093T0806S	0.50"	13/16-16	3/8-18	0.80"	1.04"
FF2093T0808S	0.50"	13/16-16	1/2-14	0.82"	1.20"
FF2093T1008S	0.63"	1-14	1/2-14	0.92"	1.20"
FF2093T1212S	0.75"	1-3/16-12	3/4-14	1.02"	1.23"
FF2093T1616S	1.00"	1-7/16-12	1-11-1/2	1.18"	1.51"
FF2093T2020S	1.25"	1-11/16-12	1-1/4-11-1/2	1.26"	1.69"
FF2093T2424S	1.50"	2-12	1-1/2-11-1/2	1.45"	1.80"
