FF2098T0404S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel

FF2098T0404S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel

Name: FF2098T0404S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2098T0404S Danfoss
Price: 8.67 USD
Availability: InStock

$8.67 - $8.67

$8.67

$8.67 - $8.67

$8.67

Aeroquip® by Danfoss

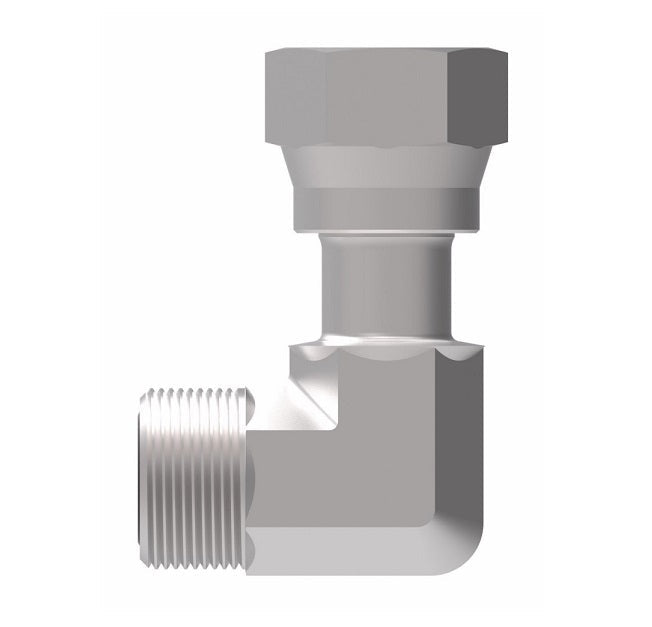

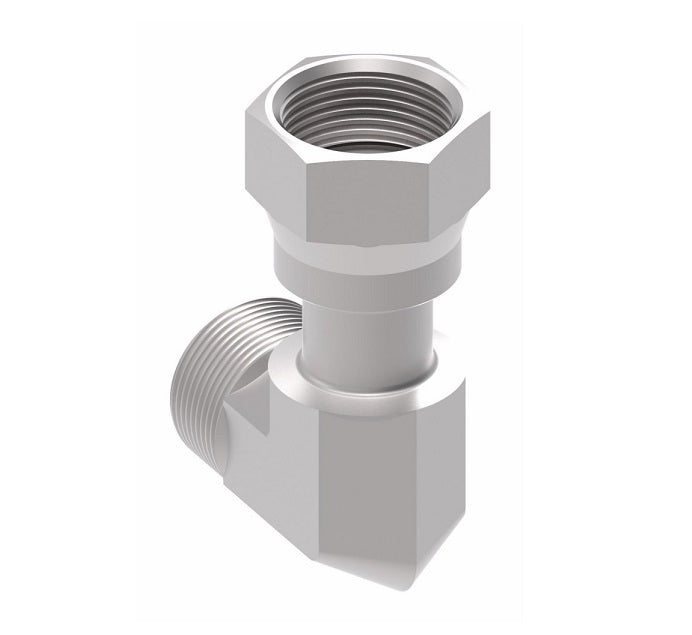

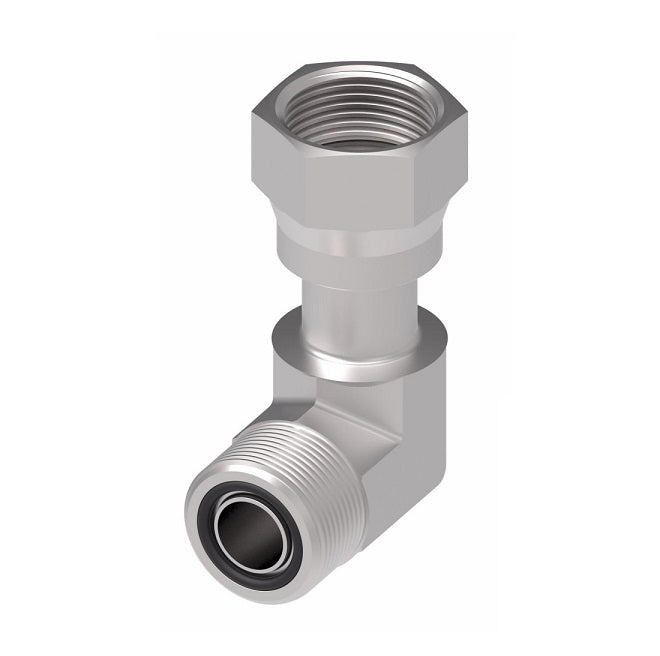

ORS Male/ORS Female Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2098T0404S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male O-Ring Face Seal, 1/4in Female O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520221
Construction:
Buna-N O-Rings are standard.


Steel Buna-N O-Ring Part Number	Steel Viton O-Ring Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2098T0404S	-	0.25"	9/16-18	9/16-18	0.85"	1.04"
FF2098T0606S	-	0.38"	11/16-16	11/16-16	0.98"	1.15"
FF2098T0808S	FF2098T0808-213	0.50"	13/16-16	13/16-16	1.10"	1.49"
FF2098T1010S	-	0.63"	1-14	1-14	1.31"	1.62"
FF2098T1212S	FF2098T1212-213	0.75"	1-3/16-12	1-3/16-12	1.47"	1.82"
FF2098T1616S	-	1.00"	1-7/16-12	1-7/16-12	1.64"	2.10"
FF2098T2020S	-	1.25"	1-11/16-12	1-11/16-12	1.76"	2.29"
FF2098T2424S	-	1.50"	2-12	2-12	1.92"	2.41"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
