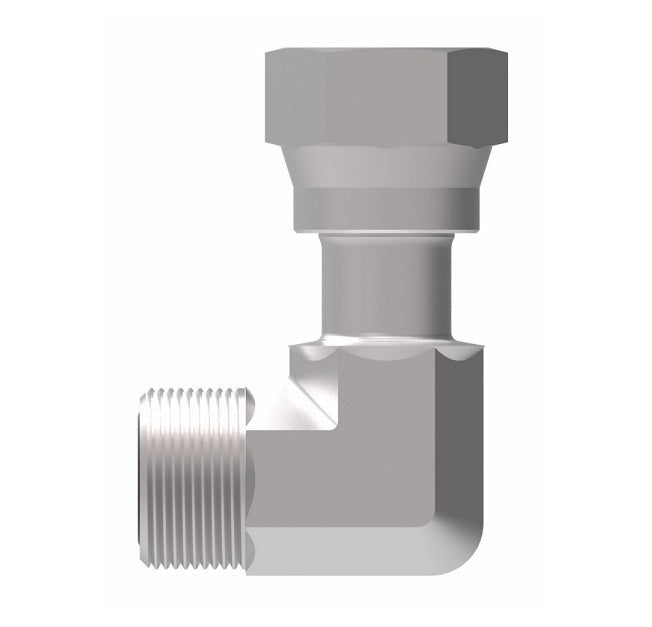

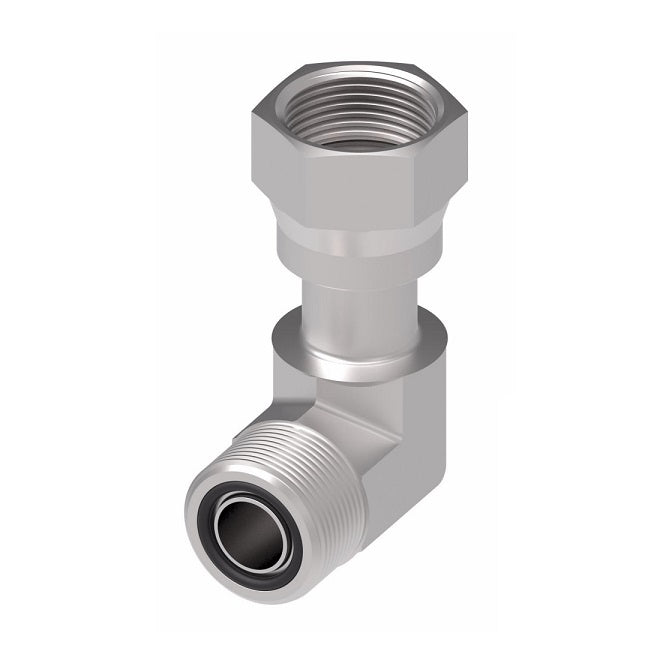

FF2098T1010S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel

FF2098T1010S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel

Name: FF2098T1010S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -10 Male O-Ring Face Seal x -10 Female O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2098T1010S Danfoss
Price: 15.19 USD
Availability: InStock

$15.19 - $15.19

$15.19

$15.19 - $15.19

$15.19

Aeroquip® by Danfoss
ORS Male/ORS Female Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2098T1010S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male O-Ring Face Seal, 5/8in Female O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520221
Construction:
Buna-N O-Rings are standard.


Steel Buna-N O-Ring Part Number	Steel Viton O-Ring Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2098T0404S	-	0.25"	9/16-18	9/16-18	0.85"	1.04"
FF2098T0606S	-	0.38"	11/16-16	11/16-16	0.98"	1.15"
FF2098T0808S	FF2098T0808-213	0.50"	13/16-16	13/16-16	1.10"	1.49"
FF2098T1010S	-	0.63"	1-14	1-14	1.31"	1.62"
FF2098T1212S	FF2098T1212-213	0.75"	1-3/16-12	1-3/16-12	1.47"	1.82"
FF2098T1616S	-	1.00"	1-7/16-12	1-7/16-12	1.64"	2.10"
FF2098T2020S	-	1.25"	1-11/16-12	1-11/16-12	1.76"	2.29"
FF2098T2424S	-	1.50"	2-12	2-12	1.92"	2.41"
