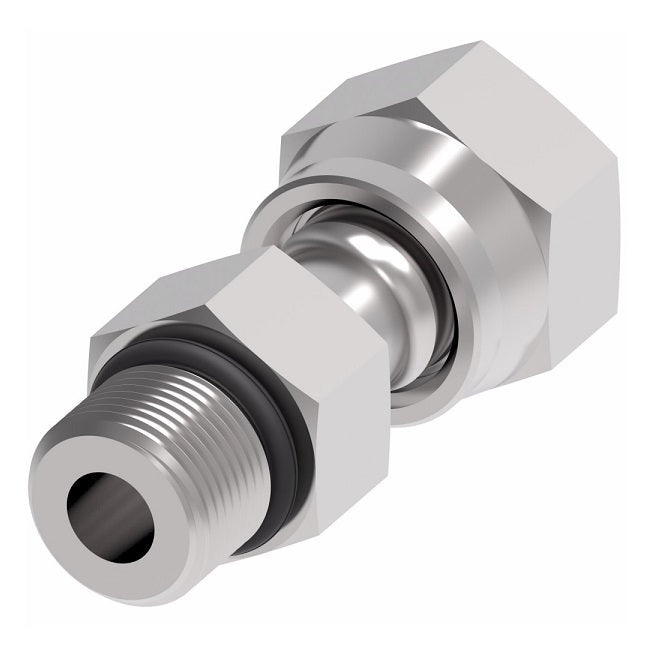

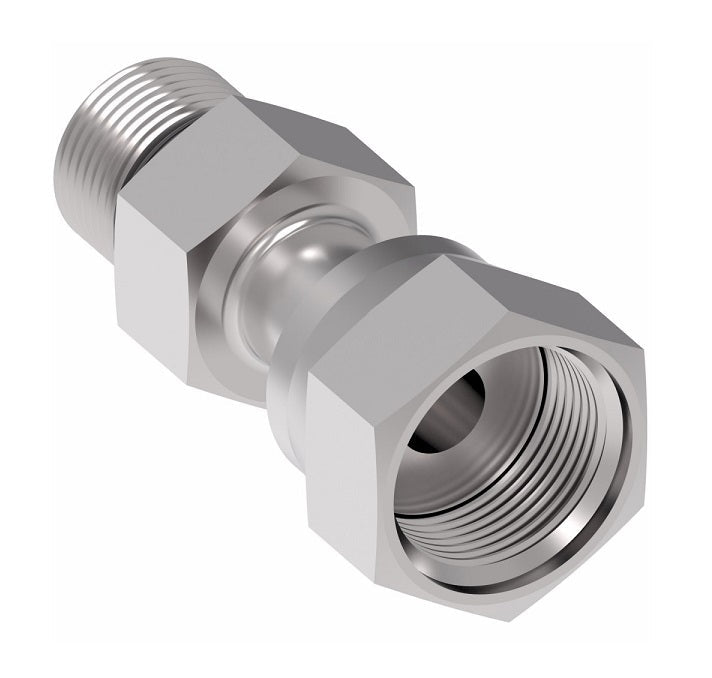

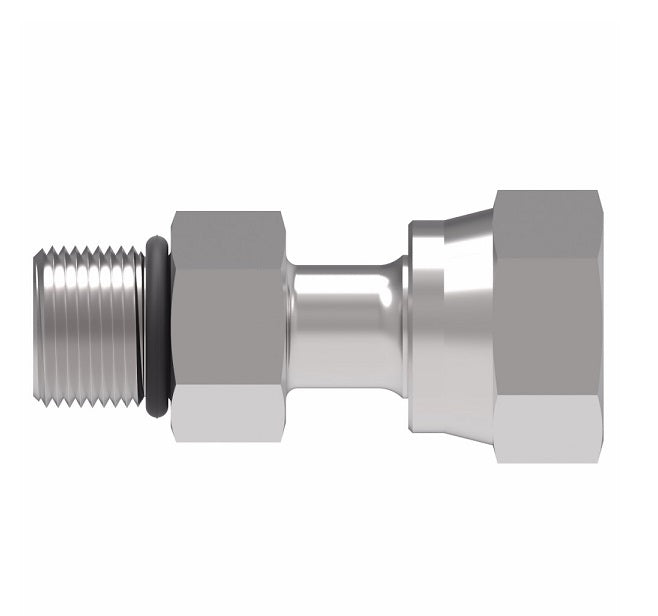

FF2130T0606S Aeroquip by Danfoss | ORS Female Swivel/SAE O-Ring Boss Adapter | -06 Female O-Ring Face Seal Swivel x -06 Male SAE O-Ring Boss | Steel

FF2130T0606S Aeroquip by Danfoss | ORS Female Swivel/SAE O-Ring Boss Adapter | -06 Female O-Ring Face Seal Swivel x -06 Male SAE O-Ring Boss | Steel

Name: FF2130T0606S Aeroquip by Danfoss | ORS Female Swivel/SAE O-Ring Boss Adapter | -06 Female O-Ring Face Seal Swivel x -06 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2130T0606S Danfoss
Price: 25.94 USD
Availability: InStock

$25.94 - $25.94

$25.94

$25.94 - $25.94

$25.94

Aeroquip® by Danfoss
ORS Female Swivel/SAE O-Ring Boss Adapter
Female O-Ring Face Seal Swivel x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2130T0606S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female O-Ring Face Seal, 3/8in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520181
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B	Hex 1
FF2130T0606S	0.38"	11/16-16	9/16-18	1.11"	0.47"	0.69"
FF2130T0808S	0.50"	13/16-16	3/4-16	1.39"	0.55"	0.88"
FF2130T1212S	0.75"	1-3/16-12	1-11/16-12	1.62"	0.73"	1.25"
FF2130T1616S	1.00"	1-7/16-12	1-5/16-12	1.93"	0.73"	1.50"
FF2130T2020S	1.25"	1-11/16-12	1-5/8-12	1.86"	0.73"	1.88"
