FF2130T0808S Aeroquip by Danfoss | ORS Female Swivel/SAE O-Ring Boss Adapter | -08 Female O-Ring Face Seal Swivel x -08 Male SAE O-Ring Boss | Steel

FF2130T0808S Aeroquip by Danfoss | ORS Female Swivel/SAE O-Ring Boss Adapter | -08 Female O-Ring Face Seal Swivel x -08 Male SAE O-Ring Boss | Steel

Name: FF2130T0808S Aeroquip by Danfoss | ORS Female Swivel/SAE O-Ring Boss Adapter | -08 Female O-Ring Face Seal Swivel x -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2130T0808S Danfoss
Price: 26.26 USD
Availability: InStock

$26.26 - $26.26

$26.26

$26.26 - $26.26

$26.26

Aeroquip® by Danfoss

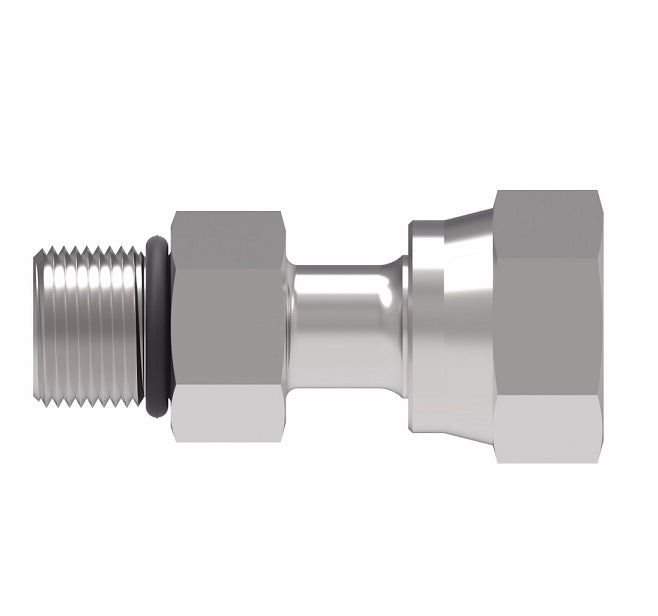

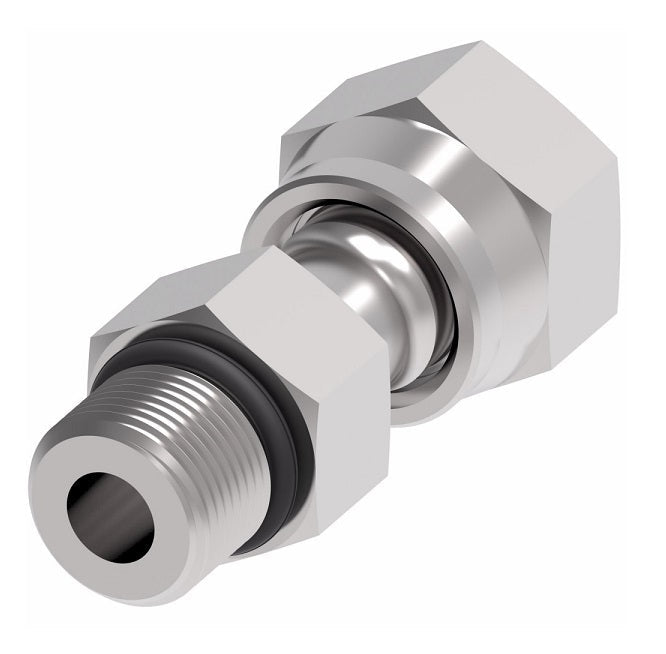

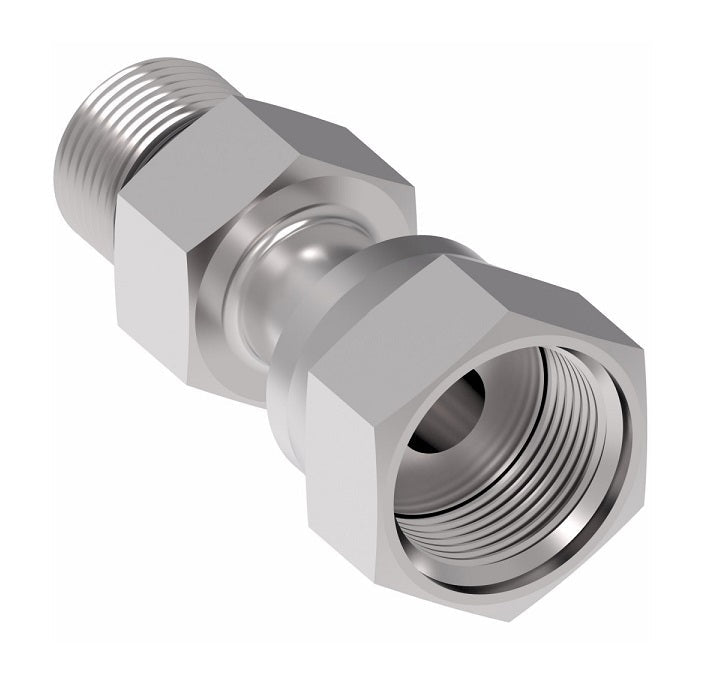

ORS Female Swivel/SAE O-Ring Boss Adapter
Female O-Ring Face Seal Swivel x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2130T0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520181
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B	Hex 1
FF2130T0606S	0.38"	11/16-16	9/16-18	1.11"	0.47"	0.69"
FF2130T0808S	0.50"	13/16-16	3/4-16	1.39"	0.55"	0.88"
FF2130T1212S	0.75"	1-3/16-12	1-11/16-12	1.62"	0.73"	1.25"
FF2130T1616S	1.00"	1-7/16-12	1-5/16-12	1.93"	0.73"	1.50"
FF2130T2020S	1.25"	1-11/16-12	1-5/8-12	1.86"	0.73"	1.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
