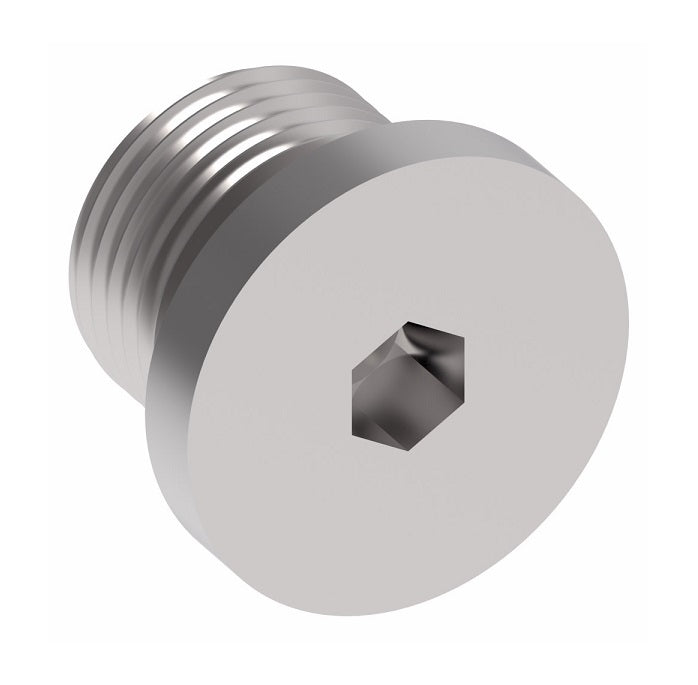

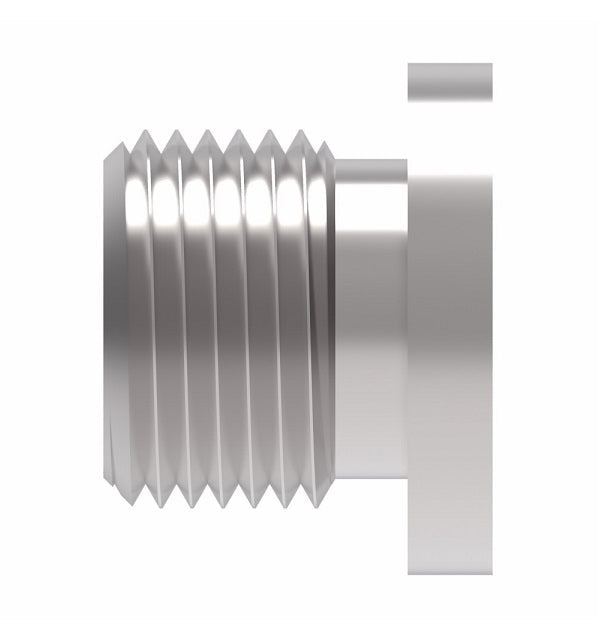

FF2137-16S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) (without O-Ring) | -16 Male SAE O-Ring Boss | Steel
FF2137-16S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) (without O-Ring) | -16 Male SAE O-Ring Boss | Steel
FF2137-16S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) (without O-Ring) | -16 Male SAE O-Ring Boss | Steel
FF2137-16S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) (without O-Ring) | -16 Male SAE O-Ring Boss | Steel

FF2137-16S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) (without O-Ring) | -16 Male SAE O-Ring Boss | Steel

$7.85 - $7.85
$7.85
$7.85 - $7.85
$7.85

Aeroquip® by Danfoss
SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2137-16S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1in Male O-Ring Boss
Material(s): Steel
Construction:
  • Buna-N O-Rings are standard.
Steel
with Buna-N O-Ring
Part Number 		Steel
without O-Ring
Part Number 		Tube O.D. Thread T1 A C
(Round)		 B
Hex
FF2138-02S FF2137-02S 0.13" 5/16-24 0.40" 0.44" 0.13"
FF2138-03S FF2137-03S 0.19" 3/8-24 0.40" 0.50" 0.16"
FF2138-04S FF2137-04S 0.25" 7/16-20 0.47" 0.56" 0.19"
FF2138-05S FF2137-05S 0.31" 1/2-20 0.47" 0.63" 0.22"
FF2138-06S FF2137-06S 0.38" 9/16-18 0.50" 0.69" 0.25"
FF2138-08S FF2137-08S 0.50" 3/4-16 0.58" 0.88" 0.32"
FF2138-10S FF2137-10S 0.63" 7/8-14 0.65" 1.00" 0.38"
FF2138-12S FF2137-12S 0.75" 1-1/16-12 0.77" 1.25" 0.57"
FF2138-14S FF2137-14S 0.88" 1-3/16-12 0.77" 1.38" 0.57"
FF2138-16S FF2137-16S 1.00" 1-5/16-12 0.77" 1.50" 0.63"
FF2138-20S FF2137-20S 1.25" 1-5/8-12 0.77" 1.88" 0.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
