Name: FF2138-02S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) | -02 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2138-02S Danfoss
Price: 3.41 USD
Availability: InStock

$3.41 - $3.41

$3.41

$3.41 - $3.41

$3.41

Aeroquip® by Danfoss

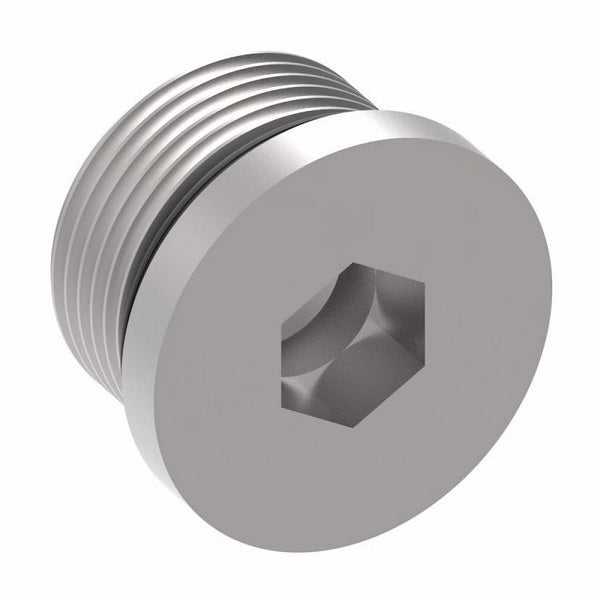

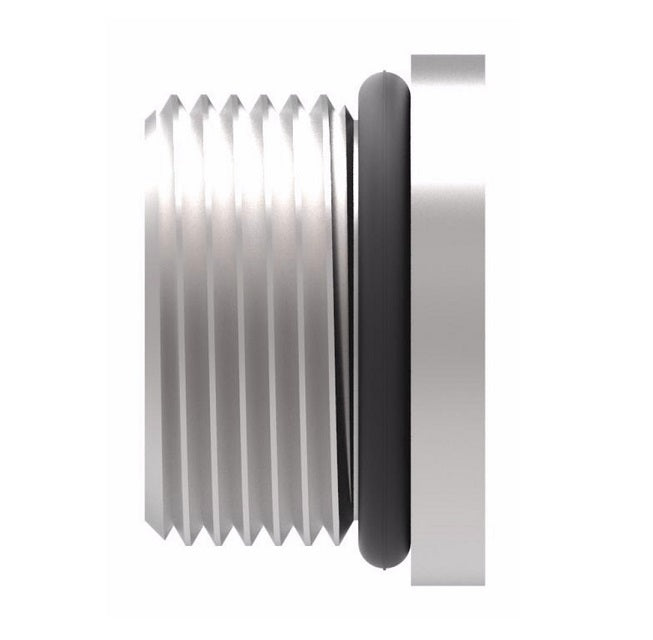

SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket)

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2138-02S Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1/8in Male O-Ring Boss
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel without O-Ring Part Number	Tube O.D.	Thread T1	A	C (Round)	B Hex
FF2138-02S	FF2137-02S	0.13"	5/16-24	0.40"	0.44"	0.13"
FF2138-03S	FF2137-03S	0.19"	3/8-24	0.40"	0.50"	0.16"
FF2138-04S	FF2137-04S	0.25"	7/16-20	0.47"	0.56"	0.19"
FF2138-05S	FF2137-05S	0.31"	1/2-20	0.47"	0.63"	0.22"
FF2138-06S	FF2137-06S	0.38"	9/16-18	0.50"	0.69"	0.25"
FF2138-08S	FF2137-08S	0.50"	3/4-16	0.58"	0.88"	0.32"
FF2138-10S	FF2137-10S	0.63"	7/8-14	0.65"	1.00"	0.38"
FF2138-12S	FF2137-12S	0.75"	1-1/16-12	0.77"	1.25"	0.57"
FF2138-14S	FF2137-14S	0.88"	1-3/16-12	0.77"	1.38"	0.57"
FF2138-16S	FF2137-16S	1.00"	1-5/16-12	0.77"	1.50"	0.63"
FF2138-20S	FF2137-20S	1.25"	1-5/8-12	0.77"	1.88"	0.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
