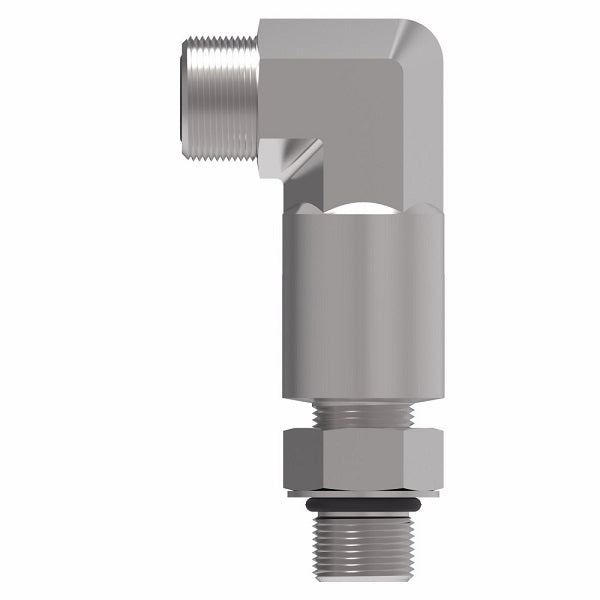

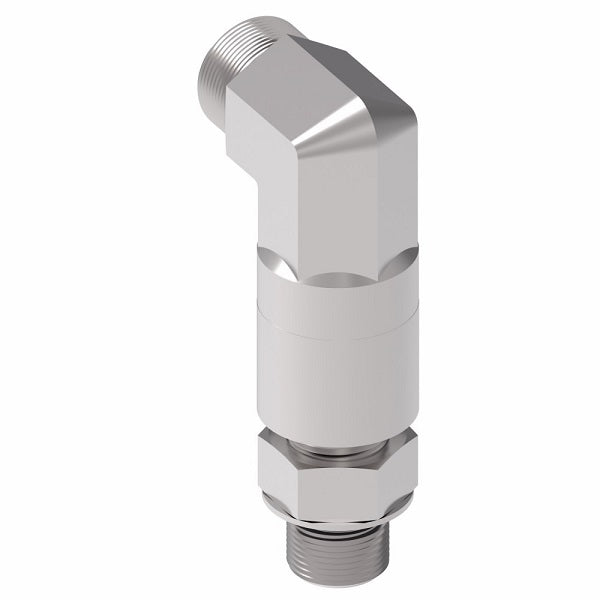

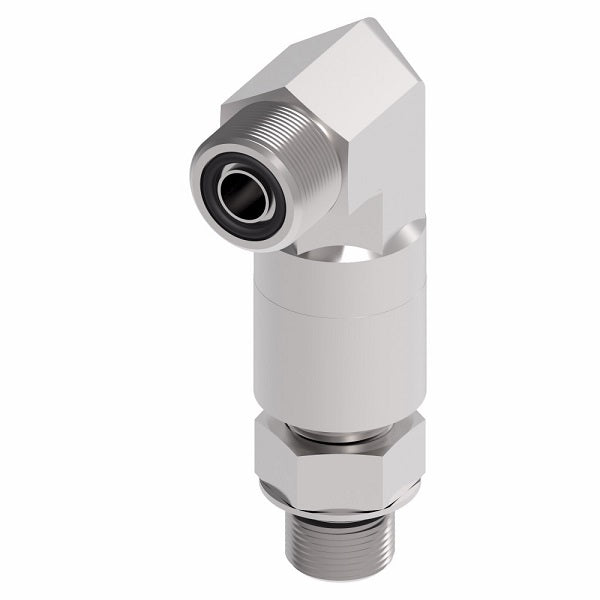

FF2227T0404S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male SAE O-Ring Boss | Steel

FF2227T0404S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male SAE O-Ring Boss | Steel

Name: FF2227T0404S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2227T0404S Danfoss
Price: 30.21 USD
Availability: InStock

$30.21 - $30.21

$30.21

$30.21 - $30.21

$30.21

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Long 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2227T0404S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male O-Ring Face Seal, 1/4in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 521520
Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Tube OD	Thread T1	Thread T2	A	B	C
FF2227T0404S		0.25"	9/16-18	7/16-20	0.85"	2.23"	0.43"
FF2227T0606S		0.38"	11/16-16	9/16-18	0.98"	2.61"	0.47"
FF2227T0808S		0.50"	13/16-16	3/4-16	1.10"	2.95"	0.55"
FF2227T1010S		0.63"	1-14	7/8-14	1.31"	3.51"	0.63"
FF2227T1212S		0.75"	1-3/16-12	1-1/16-12	1.47"	3.97"	0.73"
FF2227T1616S	FF2227T1616-213	1.00"	1-7/16-12	1-5/16-12	1.64"	4.51"	0.73"
FF2227T2020S		1.25"	1-11/16-12	1-5/8-12	1.76"	4.98"	0.73"
