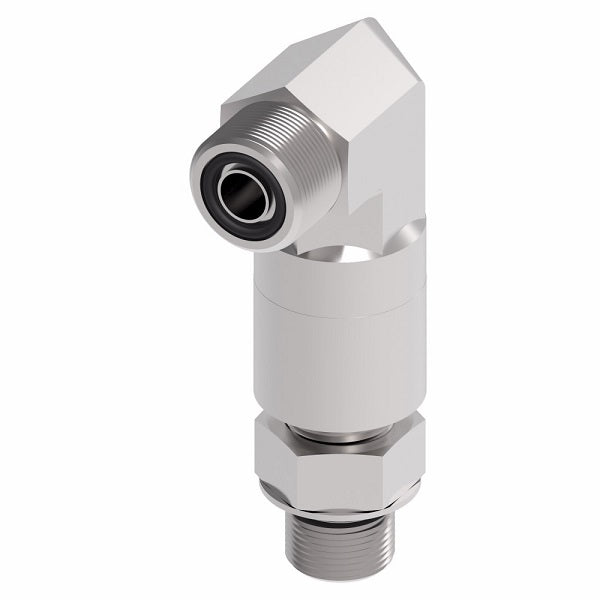

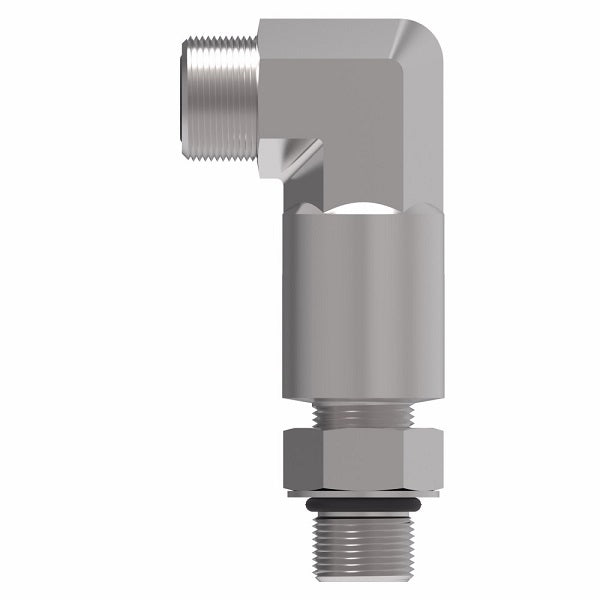

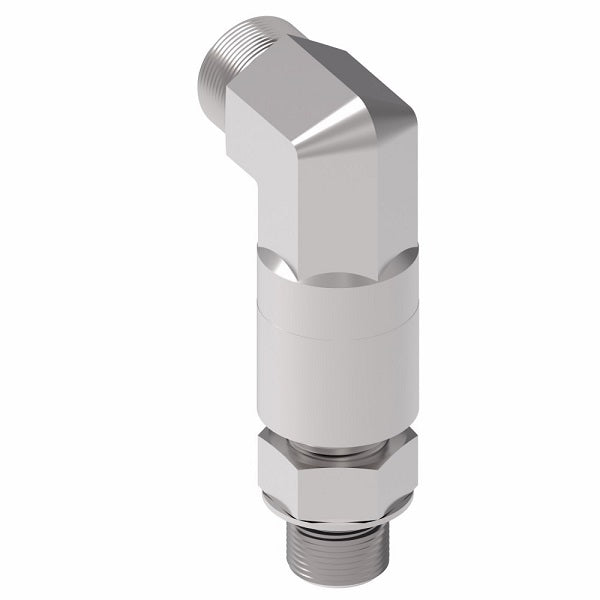

FF2227T1212S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

FF2227T1212S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

Name: FF2227T1212S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) Long 90° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2227T1212S Danfoss
Price: 51.78 USD
Availability: InStock

$51.78 - $51.78

$51.78

$51.78 - $51.78

$51.78

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Long 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2227T1212S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 521520
Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Tube OD	Thread T1	Thread T2	A	B	C
FF2227T0404S		0.25"	9/16-18	7/16-20	0.85"	2.23"	0.43"
FF2227T0606S		0.38"	11/16-16	9/16-18	0.98"	2.61"	0.47"
FF2227T0808S		0.50"	13/16-16	3/4-16	1.10"	2.95"	0.55"
FF2227T1010S		0.63"	1-14	7/8-14	1.31"	3.51"	0.63"
FF2227T1212S		0.75"	1-3/16-12	1-1/16-12	1.47"	3.97"	0.73"
FF2227T1616S	FF2227T1616-213	1.00"	1-7/16-12	1-5/16-12	1.64"	4.51"	0.73"
FF2227T2020S		1.25"	1-11/16-12	1-5/8-12	1.76"	4.98"	0.73"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
