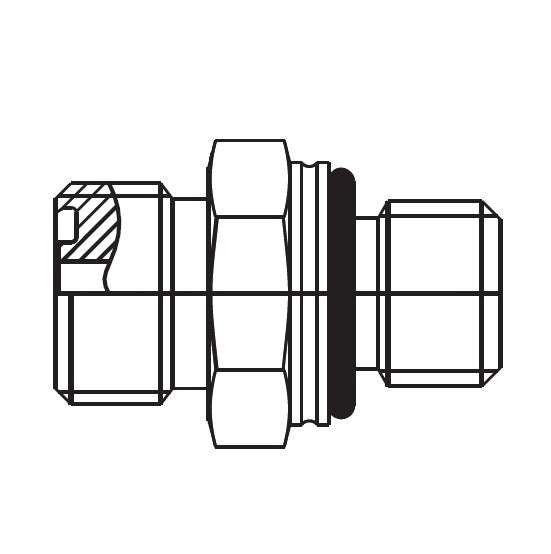

FF2742T1022S Aeroquip by Danfoss | ORS/Male ISO 6149 Boss (S-Series) Adapter | -10 Male O-Ring Face Seal x M22 Male ISO 6149 Boss | Steel

Name: FF2742T1022S Aeroquip by Danfoss | ORS/Male ISO 6149 Boss (S-Series) Adapter | -10 Male O-Ring Face Seal x M22 Male ISO 6149 Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2742T1022S Danfoss
Price: 19.72 USD
Availability: InStock

$19.72 - $19.72

$19.72

$19.72 - $19.72

$19.72

Aeroquip® by Danfoss
ORS/Male ISO 6149 Boss (S-Series) Adapter
Male O-Ring Face Seal x Male ISO 6149 Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2742T1022S Danfoss
Shape (Orientation):	Straight
Material(s):	Steel

Specifications:
Ref. SAE 52M0187


Steel Part Number	Tube O.D.	Thread T1	Thread T2	A	B	C
FF2742T0612S	0.38"	11/16-16	M12 x 1.5	1.26"	0.44"	0.43"
FF2742T0614S	0.38"	11/16-16	M14 x 1.5	1.26"	0.44"	0.43"
FF2742T0818S	-	-	-	-	-	-
FF2742T0822S	0.50"	13/16-16	M22 x 1.5	1.55"	0.50"	0.59"
FF2742T1022S	0.63"	1-14	M22 x 1.5	1.65"	0.61"	0.59"
FF2742T1222S	0.75"	1-3/16-12	M22 x 1.5	1.71"	0.67"	0.59"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
