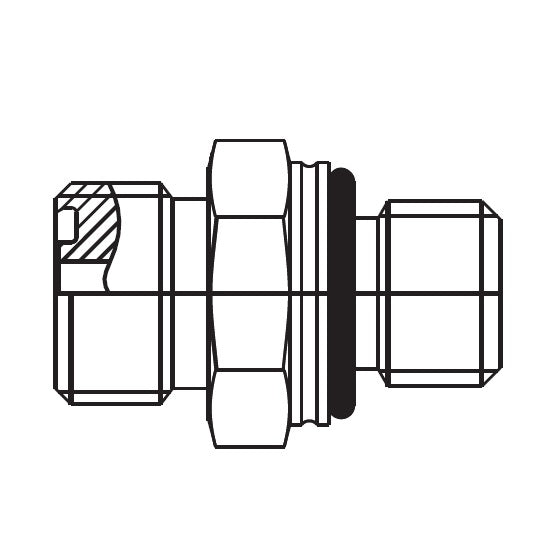

FF2742T1222S Aeroquip by Danfoss | ORS/Male ISO 6149 Boss (S-Series) Adapter | -12 Male O-Ring Face Seal x M22 Male ISO 6149 Boss | Steel

FF2742T1222S Aeroquip by Danfoss | ORS/Male ISO 6149 Boss (S-Series) Adapter | -12 Male O-Ring Face Seal x M22 Male ISO 6149 Boss | Steel

$47.86 - $47.86
$47.86
$47.86 - $47.86
$47.86

Aeroquip® by Danfoss
ORS/Male ISO 6149 Boss (S-Series) Adapter
Male O-Ring Face Seal x Male ISO 6149 Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2742T1222S Danfoss
Shape (Orientation): Straight
Material(s): Steel
Specifications:
  • Ref. SAE 52M0187
Steel
Part Number 		Tube O.D. Thread T1 Thread T2 A B C
FF2742T0612S 0.38" 11/16-16 M12 x 1.5 1.26" 0.44" 0.43"
FF2742T0614S 0.38" 11/16-16 M14 x 1.5 1.26" 0.44" 0.43"
FF2742T0818S - - - - - -
FF2742T0822S 0.50" 13/16-16 M22 x 1.5 1.55" 0.50" 0.59"
FF2742T1022S 0.63" 1-14 M22 x 1.5 1.65" 0.61" 0.59"
FF2742T1222S 0.75" 1-3/16-12 M22 x 1.5 1.71" 0.67" 0.59"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
