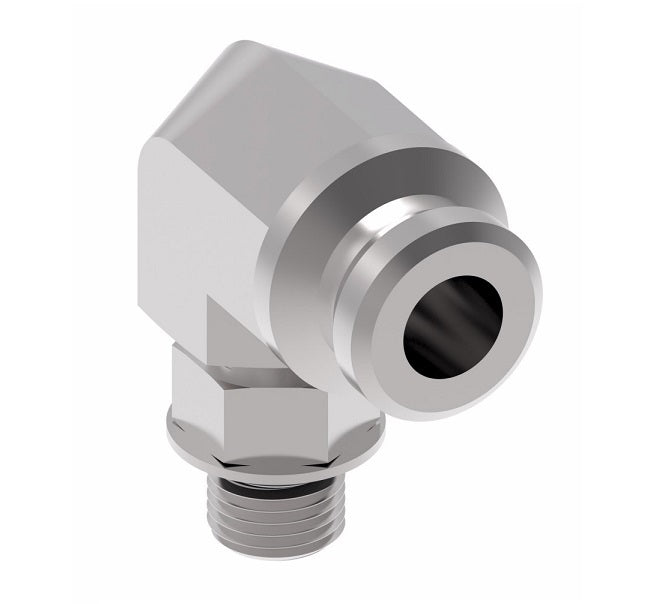

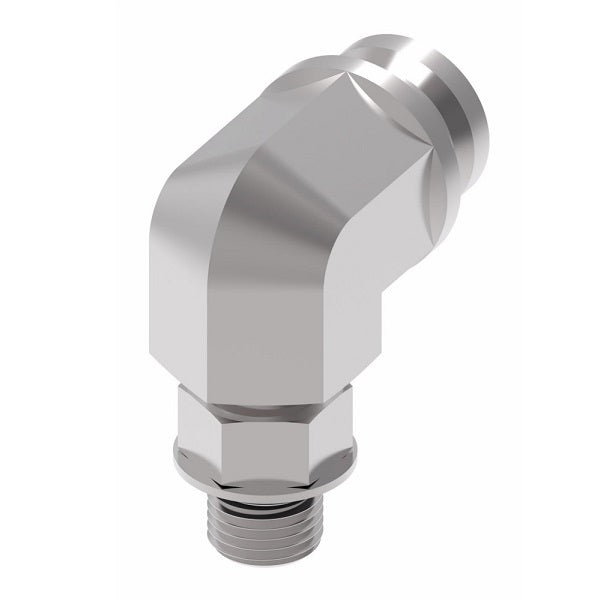

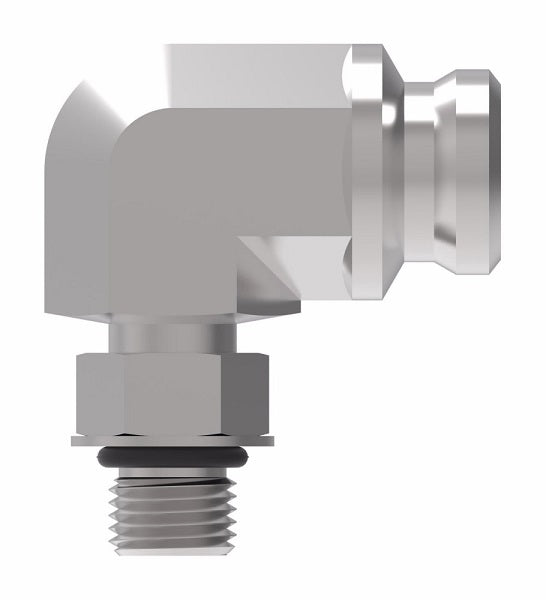

FF3046-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel
FF3046-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel
FF3046-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel
FF3046-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel

FF3046-0808S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) | -08 Male SAE O-Ring Boss x -08 Female STC | Steel

$50.24 - $50.24
$50.24
$50.24 - $50.24
$50.24

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) - 90° Elbow

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3046-0808S Danfoss
Ends Configuration: 1/2in Male O-Ring Boss, 1/2in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Nitrile O-Ring
Part Number		 Steel
Polyurethane O-Ring
Part Number		 Steel
Fluoroelastomer O-Ring
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3046-0406S - - 1.09" 1.29" 0.67" 0.17" 0.75" 7/16-20 2A FF90213-06
FF3046-0606S - - 1.09" 1.40" 0.67" 0.30" 0.75" 9/16-18 2A FF90213-06
FF3046-0806S - - 1.08" 1.70" 0.67" 0.39" 0.86" 3/4-16 2A FF90213-06
FF3046-0808S - - 1.08" 1.70" 0.80" 0.39" 0.86" 3/4-16 2A FF90213-08
FF3046-1008S - - 1.22" 1.97" 0.80" 0.48" 0.86" 7/8-14 2A FF90213-08
FF3046-1010S - - 1.25" 1.90" 0.96" 0.48" 1.05" 7/8-14 2A FF90213-10
FF3046-1210S - - - - - - - - FF90213-10
FF3046-1212S - - 1.50" 2.18" 1.23" 0.61" 1.25" 1-1/16-12 2A FF90213-12
FF3046-1616S - FF3046-1616-213 1.83" 2.50" 1.61" 0.85" 1.62" 1-5/16-12 2A FF90213-01-16S
