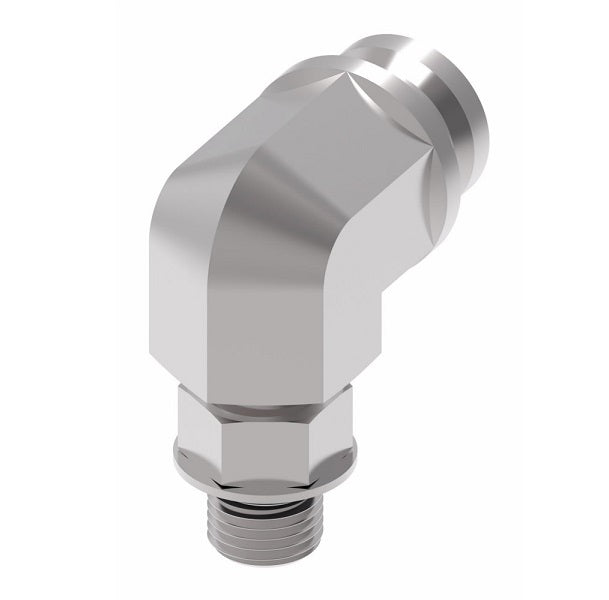

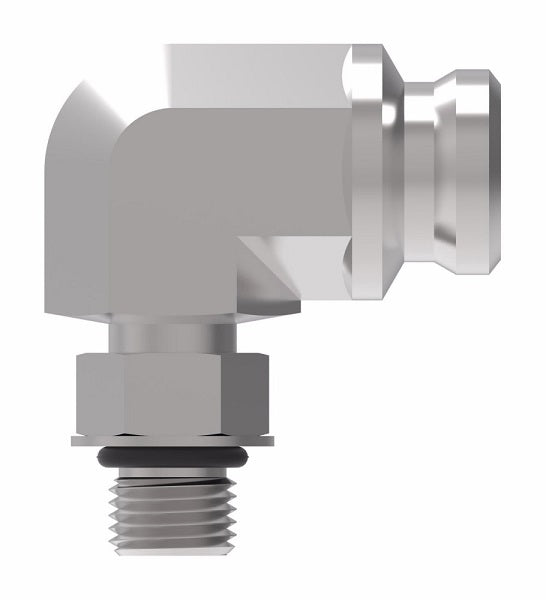

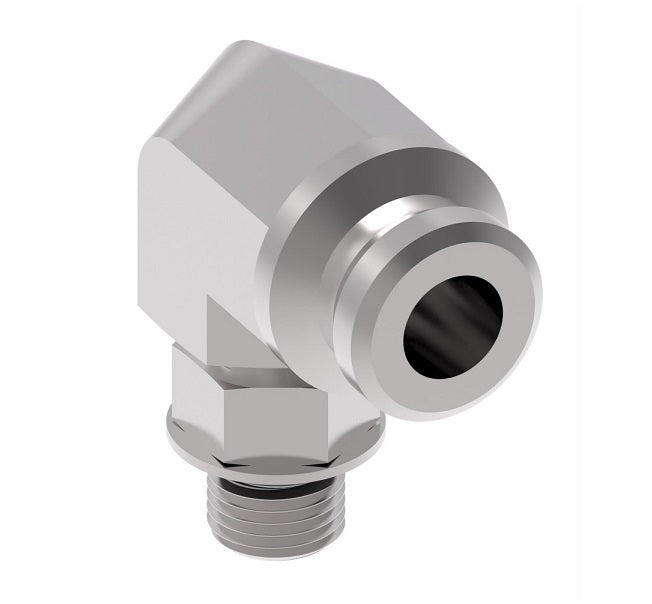

FF3046-1616-213 Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) (Fluoroelastomer O-Ring) | -16 Male SAE O-Ring Boss x -16 Female STC | Stainless Steel

FF3046-1616-213 Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) (Fluoroelastomer O-Ring) | -16 Male SAE O-Ring Boss x -16 Female STC | Stainless Steel

Name: FF3046-1616-213 Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) 90° Elbow Adapter (FF) (Fluoroelastomer O-Ring) | -16 Male SAE O-Ring Boss x -16 Female STC | Stainless Steel
Brand: Danfoss/Eaton
SKU: FF3046-1616-213 Danfoss
Price: 139.34 USD
Availability: InStock

$139.34 - $139.34

$139.34

$139.34 - $139.34

$139.34

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) - 90° Elbow

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF3046-1616-213 Danfoss
Ends Configuration:	1in Male O-Ring Boss, 1in Female STC
Material(s):	Stainless Steel

Applications:
Hydraulic Power Steering Auxiliary Hydraulics Power Brakes Turbochargers Fuel Injection Systems Hydraulic Work Circuits Air Conditioning, Refrigeration and Truck and Bus Refrigerant Supply Lines Compressor Discharge Power Steering Oil Cooler Pneumatic Brakes Air Supply Lines Cooling Transmission Oil Coolers Heat Exchangers Equipment Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
Positive round-wire style latching mechanism. Swivels for installation (in absence of pressure). Low profile; compact design. Elastomeric o-ring seal. Capable of direct porting into valve blocks or manifolds. Dual purpose dust seal/release sleeve. Simple stamped release tool for disconnecting.
Benefits:
Fast reliable one-hand connections requiring no assembly tools. Eliminates cross-threading, over or undertorquing, and hose twisting. Installs easily in confined areas. Virtually zero leak performance per SAE J1176. Direct porting eliminates adapters to maximize cost savings. Resists external contamination. Allows easy disconnection with release tool (sold separately).
Technical Info:
Danfoss STC Connectors.PDF


Steel Nitrile O-Ring Part Number	Steel Polyurethane O-Ring Part Number	Steel Fluoroelastomer O-Ring Part Number	A	B	DIA	E	Hex	"T" Thread	STC Release Tool
FF3046-0406S	-	-	1.09"	1.29"	0.67"	0.17"	0.75"	7/16-20 2A	FF90213-06
FF3046-0606S	-	-	1.09"	1.40"	0.67"	0.30"	0.75"	9/16-18 2A	FF90213-06
FF3046-0806S	-	-	1.08"	1.70"	0.67"	0.39"	0.86"	3/4-16 2A	FF90213-06
FF3046-0808S	-	-	1.08"	1.70"	0.80"	0.39"	0.86"	3/4-16 2A	FF90213-08
FF3046-1008S	-	-	1.22"	1.97"	0.80"	0.48"	0.86"	7/8-14 2A	FF90213-08
FF3046-1010S	-	-	1.25"	1.90"	0.96"	0.48"	1.05"	7/8-14 2A	FF90213-10
FF3046-1210S	-	-	-	-	-	-	-	-	FF90213-10
FF3046-1212S	-	-	1.50"	2.18"	1.23"	0.61"	1.25"	1-1/16-12 2A	FF90213-12
FF3046-1616S	-	FF3046-1616-213	1.83"	2.50"	1.61"	0.85"	1.62"	1-5/16-12 2A	FF90213-01-16S
