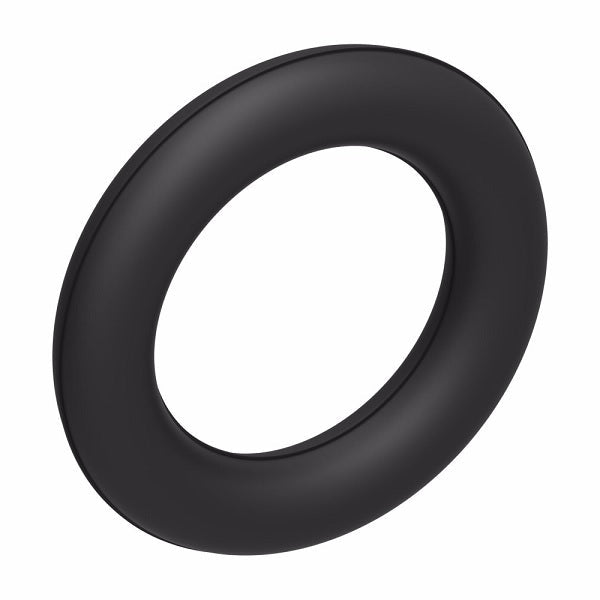

FF90319-16 Aeroquip by Danfoss | -16 CAT Flange D-Ring | Nitrile (Buna-N)

FF90319-16 Aeroquip by Danfoss | -16 CAT Flange D-Ring | Nitrile (Buna-N)

$13.03 - $13.03
$13.03
$13.03 - $13.03
$13.03

Aeroquip® by Danfoss
CAT Flange D-Ring - Nitrile (Buna-N)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF90319-16 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): Buna-N/Nitrile Rubber
Technical Info:
Important:
  • These D-Rings are to be used only with CAT flanges.
Specifications:
  • Material: Nitrile (Buna-N)
  • Temperature range: -40°F to +212°F
Part number A B C D E
FF90319-12 1.27" 1.00" 0.20" 0.10" 0.14"
FF90319-16 1.52" 1.25" 0.20" 0.10" 0.14"
FF90319-20 1.77" 1.50" 0.20" 0.10" 0.14"
FF90319-24 2.03" 1.76" 0.20" 0.10" 0.14"
FF90319-32 2.78" 2.52" 0.20" 0.10" 0.14"
