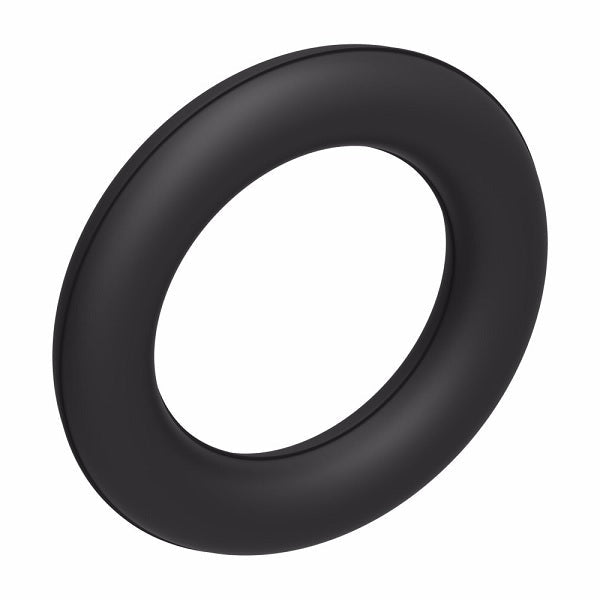

FF90319-32 Aeroquip by Danfoss | -32 CAT Flange D-Ring | Nitrile (Buna-N)

FF90319-32 Aeroquip by Danfoss | -32 CAT Flange D-Ring | Nitrile (Buna-N)

$15.44 - $15.44
$15.44
$15.44 - $15.44
$15.44

Aeroquip® by Danfoss
CAT Flange D-Ring - Nitrile (Buna-N)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF90319-32 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): Buna-N/Nitrile Rubber
Technical Info:
Important:
  • These D-Rings are to be used only with CAT flanges.
Specifications:
  • Material: Nitrile (Buna-N)
  • Temperature range: -40°F to +212°F
Part number A B C D E
FF90319-12 1.27" 1.00" 0.20" 0.10" 0.14"
FF90319-16 1.52" 1.25" 0.20" 0.10" 0.14"
FF90319-20 1.77" 1.50" 0.20" 0.10" 0.14"
FF90319-24 2.03" 1.76" 0.20" 0.10" 0.14"
FF90319-32 2.78" 2.52" 0.20" 0.10" 0.14"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
