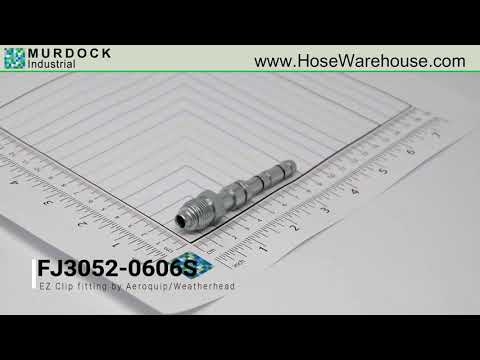

FJ3052-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb| Steel
FJ3052-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3052-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3052-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb| Steel

FJ3052-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel

$18.74 - $18.74
$18.74
$18.74 - $18.74
$18.74

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3052-0606S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Short Pilot, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3052-0606S 5/8-18 -06 3.41" 1.70" 0.62" FF14171 22546-11 FF90178-11
FJ3052-0608S 5/8-18 -08 3.43" 1.70" 0.62" FF14172 22546-11 FF90178-11
FJ3052-0808S 3/4-18 -08 4.37" 2.64" 0.75" FF14172 22546-13 FF90178-13
FJ3052-1010S 7/8-18 -10 3.66" 1.92" 0.88" FF14173 22546-15 FF90178-15
FJ3052-1012S 7/8-18 -12 3.68" 1.92" 0.88" FF14174 22546-15 FF90178-15
FJ3052-1016S 7/8-18 -16 4.33" 2.47" 0.88" FF14401 22546-15 FF90178-15
FJ3052-1212S 1-1/16-16 -12 3.68" 1.92" 1.06" FF14174 22546-17 FF90178-17
FJ3052-1216S 1-1/16-16 -16 4.28" 2.42" 1.06" FF14401 22546-17 FF90178-17
