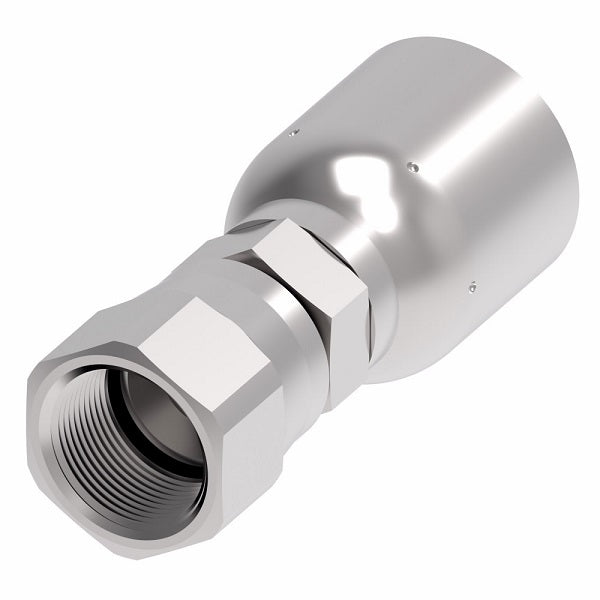

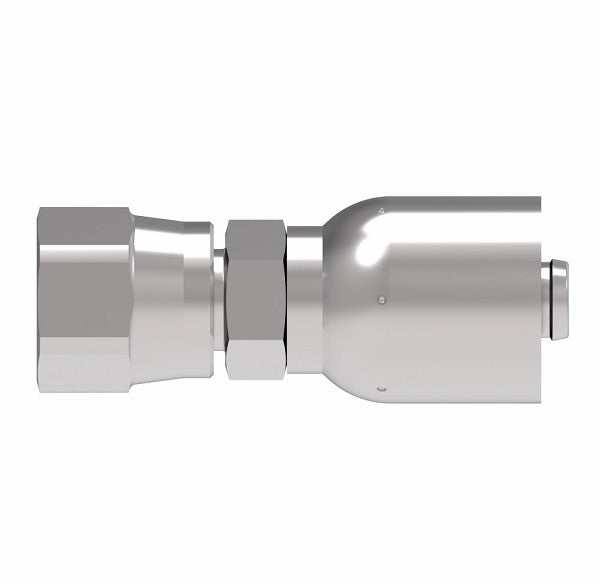

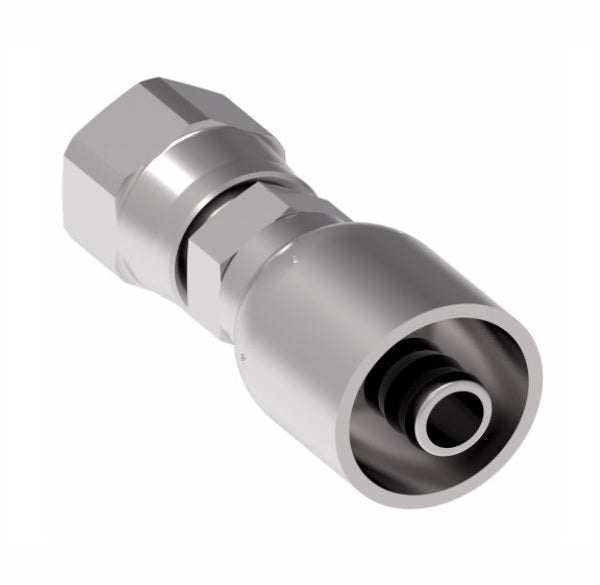

FJ3114-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -06 Hose Barb | Steel

FJ3114-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$105.60 - $105.60

$105.60

$105.60 - $105.60

$105.60

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ3114-0606S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	Hex
FJ3114-0404S	-04	7/16-20	1.88"	1.10"	0.56"
FJ3114-0604S	-04	9/16-18	2.03"	1.25"	0.69"
FJ3114-0405S	-05	7/16-20	1.89"	1.10"	0.56"
FJ3114-0505S	-05	1/2-20	1.94"	1.15"	0.05"
FJ3114-0606S	-06	9/16-18	2.04"	1.25"	0.69"
FJ3114-0806S	-06	3/4-16	2.14"	1.35"	0.88"
FJ3114-0608S	-08	9/16-18	2.12"	1.32"	0.69"
FJ3114-0808S	-08	3/4-16	2.15"	1.35"	0.88"
FJ3114-1008S	-08	7/18-14	2.32"	1.53"	1.00"
FJ3114-0810S	-10	3/4-16	2.29"	1.41"	0.88"
FJ3114-1010S	-10	7/8-14	2.41"	1.53"	1.00"
FJ3114-1012S	-12	7/18-14	2.44"	1.54"	1.00"
FJ3114-1210S	-10	1-1/16-12	2.45"	1.55"	1.00"
FJ3114-1212S	-12	1-1/16-12	2.43"	1.55"	1.25"
FJ3114-1216S	-16	1-1/16-12	2.79"	1.80"	1.25"
FJ3114-1616S	-16	1-5/16-12	2.77"	1.73"	1.50"
FJ3114-2020S	-20	1-5/8-12	2.97"	1.79"	2.00"
FJ3114-2424S	-24	1-5/8-12	3.28"	1.79"	2.00"
FJ3114-3232S	-24	1-7/8-12	3.43"	1.94"	2.25"
