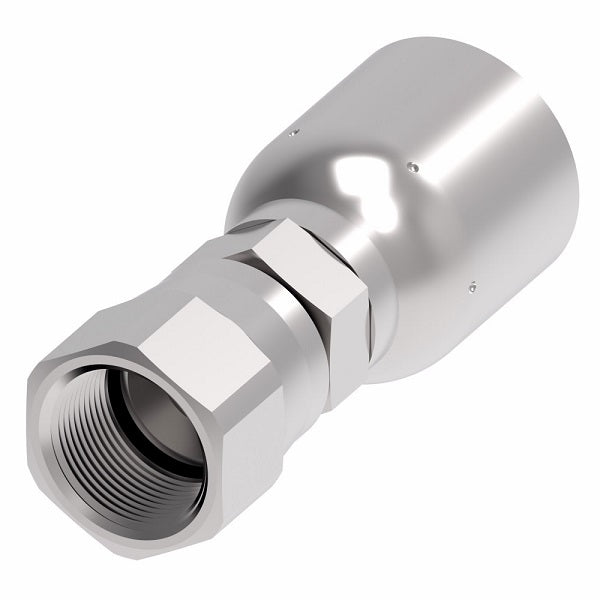

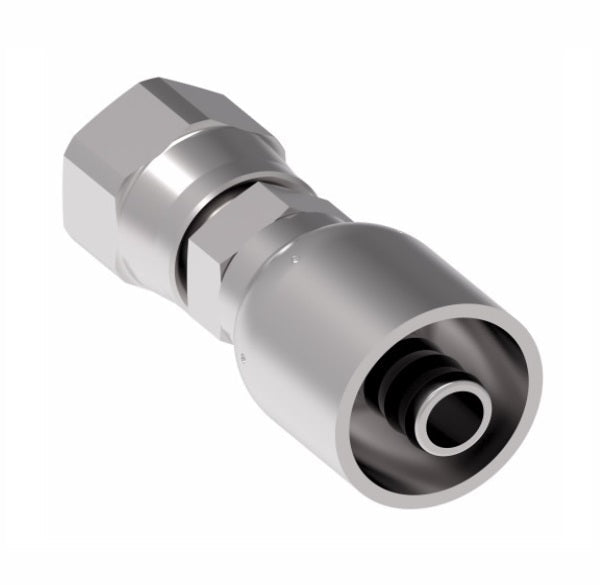

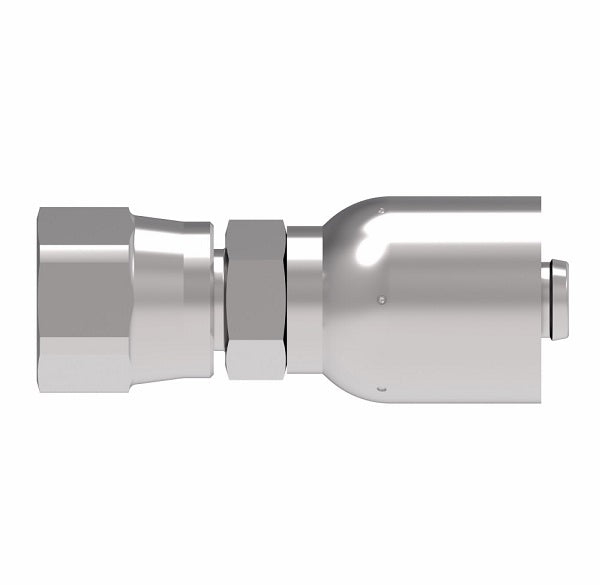

FJ3114-0808S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel
FJ3114-0808S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel | Pack of 10
FJ3114-0808S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel | Pack of 10
FJ3114-0808S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel

FJ3114-0808S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$141.80 - $141.80
$141.80
$141.80 - $141.80
$141.80

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ3114-0808S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D Hex
FJ3114-0404S -04 7/16-20 1.88" 1.10" 0.56"
FJ3114-0604S -04 9/16-18 2.03" 1.25" 0.69"
FJ3114-0405S -05 7/16-20 1.89" 1.10" 0.56"
FJ3114-0505S -05 1/2-20 1.94" 1.15" 0.05"
FJ3114-0606S -06 9/16-18 2.04" 1.25" 0.69"
FJ3114-0806S -06 3/4-16 2.14" 1.35" 0.88"
FJ3114-0608S -08 9/16-18 2.12" 1.32" 0.69"
FJ3114-0808S -08 3/4-16 2.15" 1.35" 0.88"
FJ3114-1008S -08 7/18-14 2.32" 1.53" 1.00"
FJ3114-0810S -10 3/4-16 2.29" 1.41" 0.88"
FJ3114-1010S -10 7/8-14 2.41" 1.53" 1.00"
FJ3114-1012S -12 7/18-14 2.44" 1.54" 1.00"
FJ3114-1210S -10 1-1/16-12 2.45" 1.55" 1.00"
FJ3114-1212S -12 1-1/16-12 2.43" 1.55" 1.25"
FJ3114-1216S -16 1-1/16-12 2.79" 1.80" 1.25"
FJ3114-1616S -16 1-5/16-12 2.77" 1.73" 1.50"
FJ3114-2020S -20 1-5/8-12 2.97" 1.79" 2.00"
FJ3114-2424S -24 1-5/8-12 3.28" 1.79" 2.00"
FJ3114-3232S -24 1-7/8-12 3.43" 1.94" 2.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
