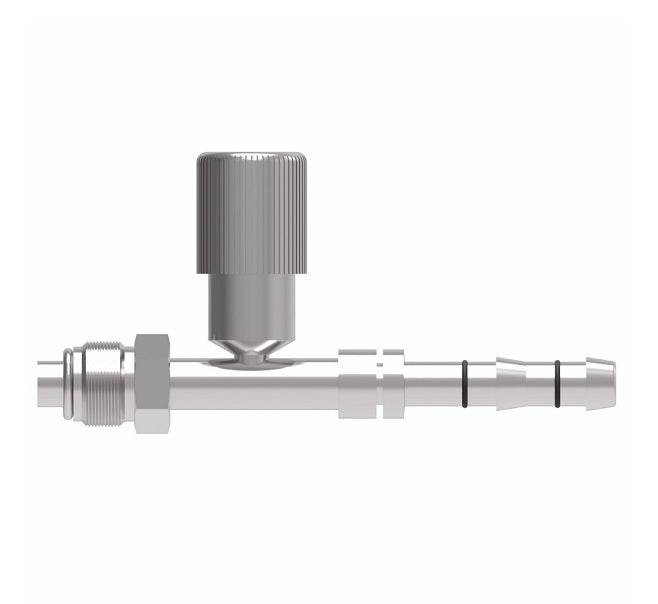

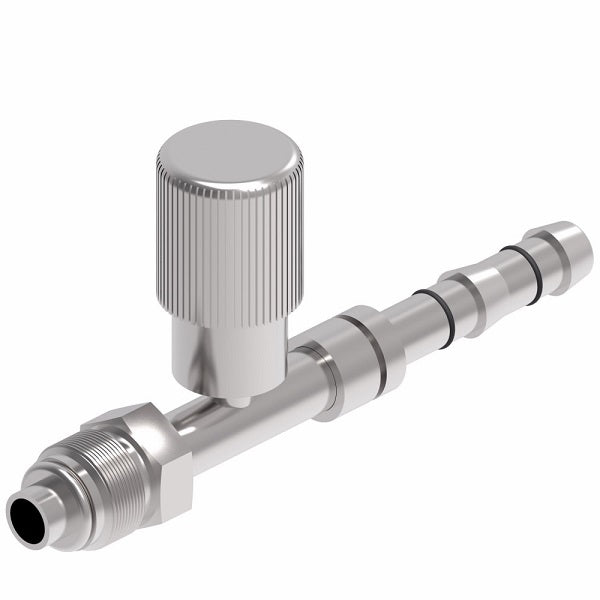

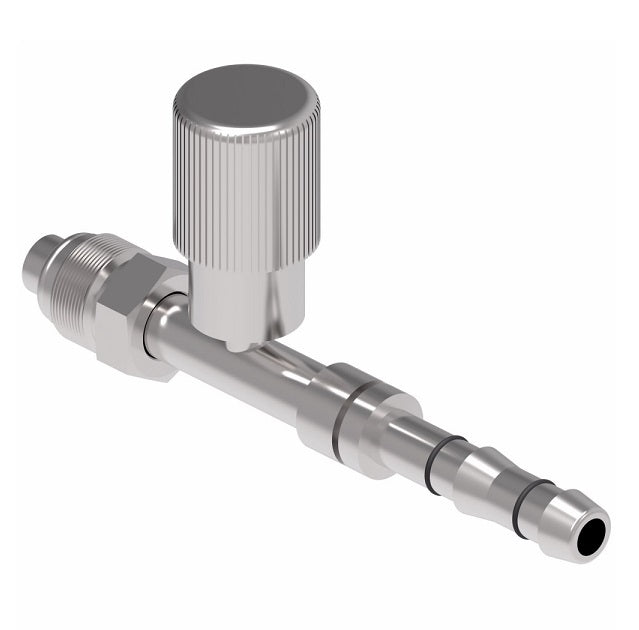

FJ3131-02-0808S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Male O-Ring Short Pilot x -08 Hose Barb | Steel
FJ3131-02-0808S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Male O-Ring Short Pilot x -08 Hose Barb | Steel
FJ3131-02-0808S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Male O-Ring Short Pilot x -08 Hose Barb | Steel
FJ3131-02-0808S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Male O-Ring Short Pilot x -08 Hose Barb | Steel

FJ3131-02-0808S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Male O-Ring Short Pilot x -08 Hose Barb | Steel

$77.94 - $77.94
$77.94
$77.94 - $77.94
$77.94

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) with R134a High Side Port - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3131-02-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Short Pilot, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3131-01-0606S 5/8-18 -06 4.18" 2.47" 0.63" 0.62" FF14171 22546-11 FF90178-11
FJ3131-02-0808S 3/4-18 -08 4.58" 2.85" 0.63" 0.75" FF14172 22546-13 FF90178-13
FJ3131-03-1010S 7/8-18 -10 4.34" 2.61" 0.63" 0.88" FF14173 22546-15 FF90178-15
