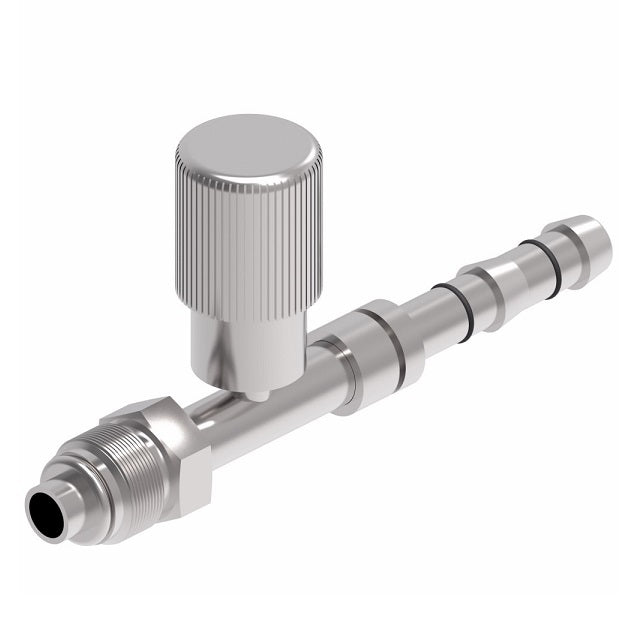

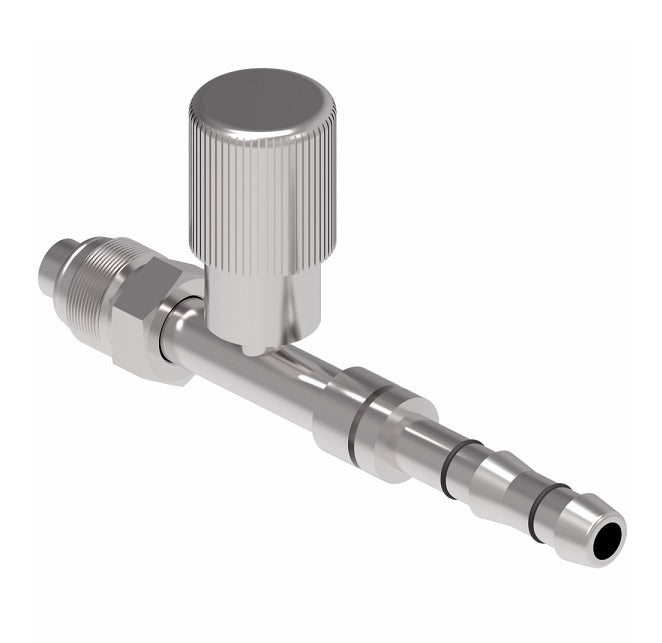

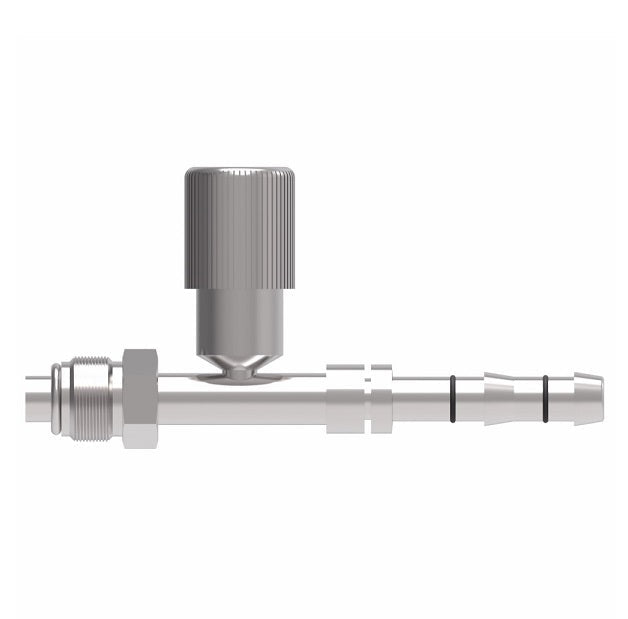

FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb| Steel
FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb| Steel

FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel

$104.20 - $104.20
$104.20
$104.20 - $104.20
$104.20

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) with R134a Low Side Port - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3132-01-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Short Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3132-01-1010S 7/8-18 -10 4.43" 2.70" 0.63" 0.88" FF14173 22546-15 FF90178-15
FJ3132-02-1012S 7/8-18 -12 4.46" 2.70" 0.63" 0.88" FF14174 22546-15 FF90178-15
