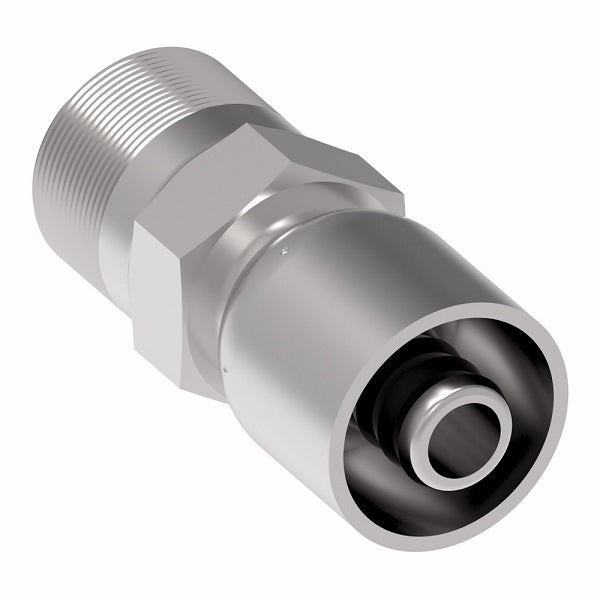

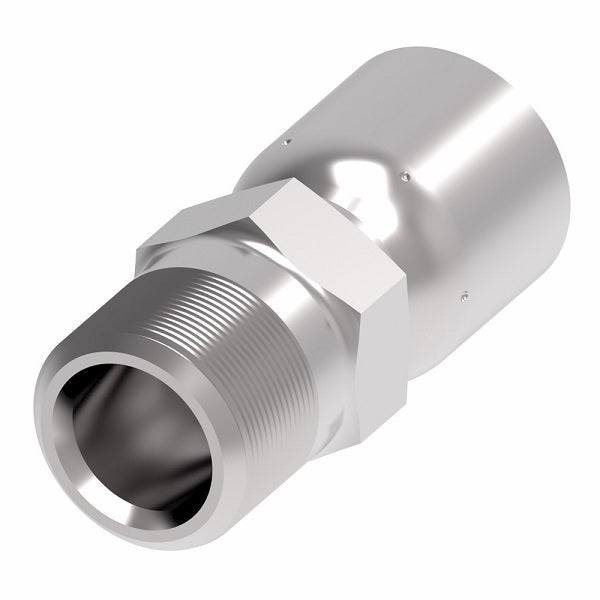

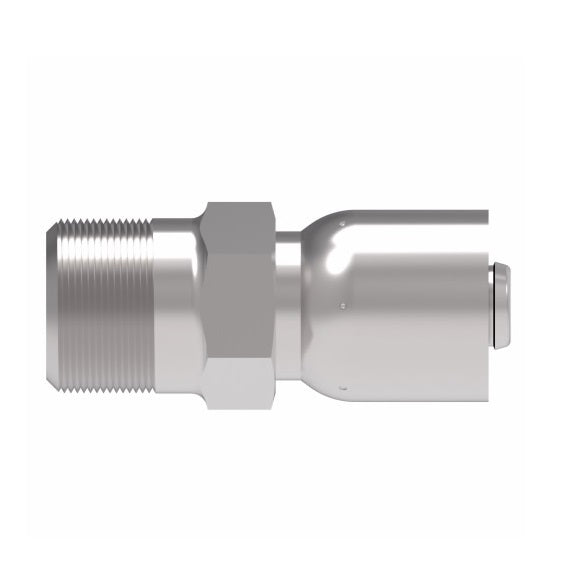

FJ3152-1212S Aeroquip by Danfoss | Male Pipe 100R5 Crimp Fitting | FJ Series | -12 Male Pipe x -12 Hose Barb | Steel

FJ3152-1212S Aeroquip by Danfoss | Male Pipe 100R5 Crimp Fitting | FJ Series | -12 Male Pipe x -12 Hose Barb | Steel

Name: FJ3152-1212S Aeroquip by Danfoss | Male Pipe 100R5 Crimp Fitting | FJ Series | -12 Male Pipe x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3152-1212S Danfoss
Price: 25.8 USD
Availability: InStock

$25.80 - $25.80

$25.80

$25.80 - $25.80

$25.80

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ3152-1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D
FJ3152-0204S	-04	1/8-27	1.78"	1.00"
FJ3152-0404S	-04	1/4-18	1.85"	1.06"
FJ3152-0406S	-06	1/4-18	1.85"	1.06"
FJ3152-0606S	-06	3/8-18	1.85"	1.06"
FJ3152-0808S	-08	1/2-14	2.15"	1.35"
FJ3152-0810S	-10	1/2-14	2.24"	1.36"
FJ3152-1212S	-12	3/4-14	2.24"	1.36"
FJ3152-1216S	-16	3/4-14	2.69"	1.40"
FJ3152-1616S	-16	1-11-1/2	2.61"	1.63"
FJ3152-2020S	-20	1-1/4 - 11-1/2	2.98"	1.79"
FJ3152-2424S	-24	1-1/2-11-1/2	3.38"	1.90"
FJ3152-3232S	-32	2-11-1/2	4.11"	2.19"
