FJ3152-1216S Aeroquip by Danfoss | Male Pipe 100R5 Crimp Fitting | FJ Series | -12 Male Pipe x -16 Hose Barb | Steel

FJ3152-1216S Aeroquip by Danfoss | Male Pipe 100R5 Crimp Fitting | FJ Series | -12 Male Pipe x -16 Hose Barb | Steel

Name: FJ3152-1216S Aeroquip by Danfoss | Male Pipe 100R5 Crimp Fitting | FJ Series | -12 Male Pipe x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3152-1216S Danfoss
Price: 30.3 USD
Availability: InStock

$30.30 - $30.30

$30.30

$30.30 - $30.30

$30.30

Aeroquip® by Danfoss

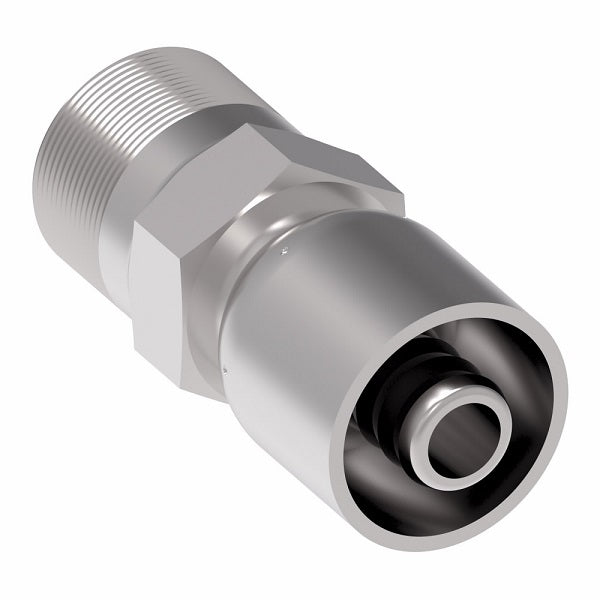

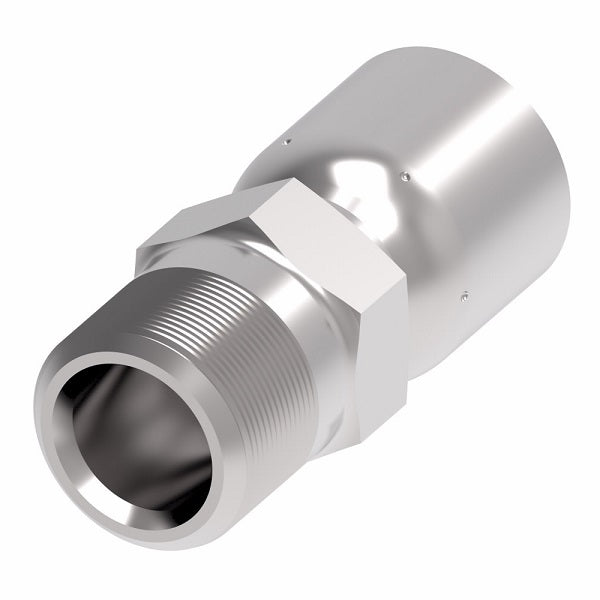

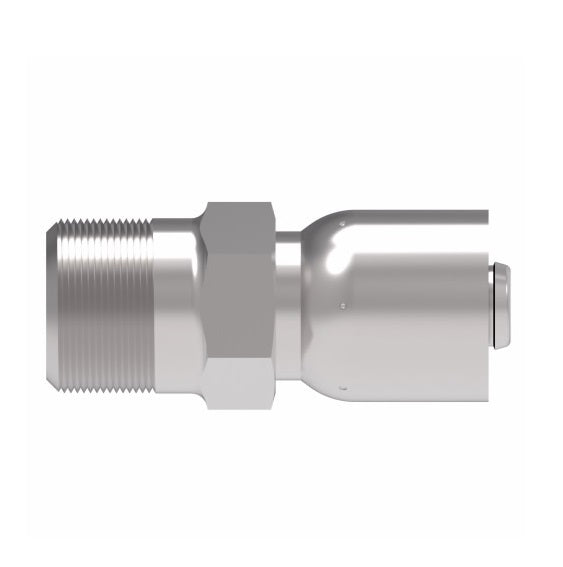

Truck and Fuel 100R5 Crimp Fitting - FJ Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ3152-1216S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D
FJ3152-0204S	-04	1/8-27	1.78"	1.00"
FJ3152-0404S	-04	1/4-18	1.85"	1.06"
FJ3152-0406S	-06	1/4-18	1.85"	1.06"
FJ3152-0606S	-06	3/8-18	1.85"	1.06"
FJ3152-0808S	-08	1/2-14	2.15"	1.35"
FJ3152-0810S	-10	1/2-14	2.24"	1.36"
FJ3152-1212S	-12	3/4-14	2.24"	1.36"
FJ3152-1216S	-16	3/4-14	2.69"	1.40"
FJ3152-1616S	-16	1-11-1/2	2.61"	1.63"
FJ3152-2020S	-20	1-1/4 - 11-1/2	2.98"	1.79"
FJ3152-2424S	-24	1-1/2-11-1/2	3.38"	1.90"
FJ3152-3232S	-32	2-11-1/2	4.11"	2.19"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
