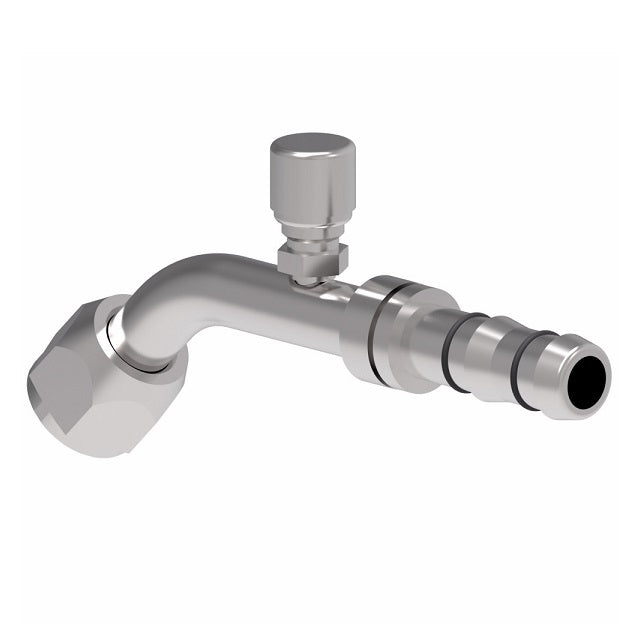

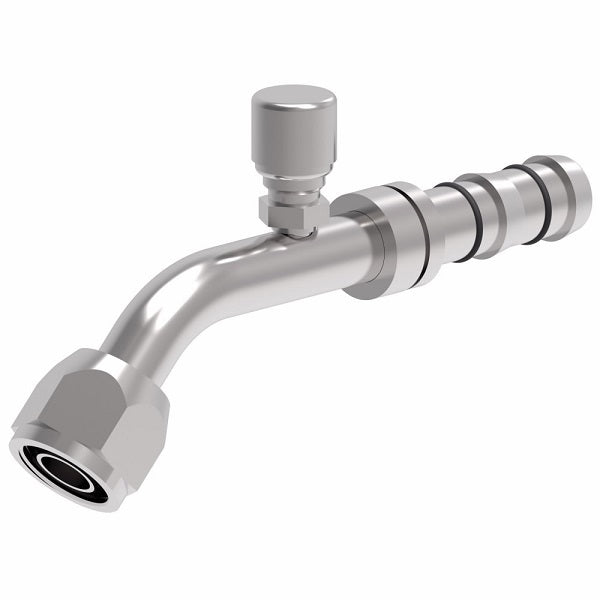

FJ3230-03-0808S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel
FJ3230-03-0808S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel
FJ3230-03-0808S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel
FJ3230-03-0808S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel

FJ3230-03-0808S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel

$58.10 - $58.10
$58.10
$58.10 - $58.10
$58.10

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring 45° Elbow (Long Pilot) with Switch Port (7/16-20 thd) - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3230-03-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female O-Ring Long Pilot, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3230-01-0810S 3/4-16 -10 4.61" 3.06" 0.63" 0.80" 0.88" FF14173 22546-13 FF90178-13
FJ3230-02-1012S 7/8-16 -12 4.73" 3.15" 0.63" 0.89" 1.06" FF14174 22546-15 FF90178-15
FJ3230-03-0808S 3/4-16 -08 4.43" 4.93" 0.63" 0.73" 0.88" FF14172 22546-13 FF90178-13
FJ3230-04-1010S 7/8-14 -10 5.00" 3.45" 0.63" 1.19" 1.06" FF14173 22546-15 FF90178-15
FJ3230-05-1016S 7/8-14 -16 4.88" 3.15" 0.63" 0.89" 1.06" FF14401 22546-15 FF90178-15
