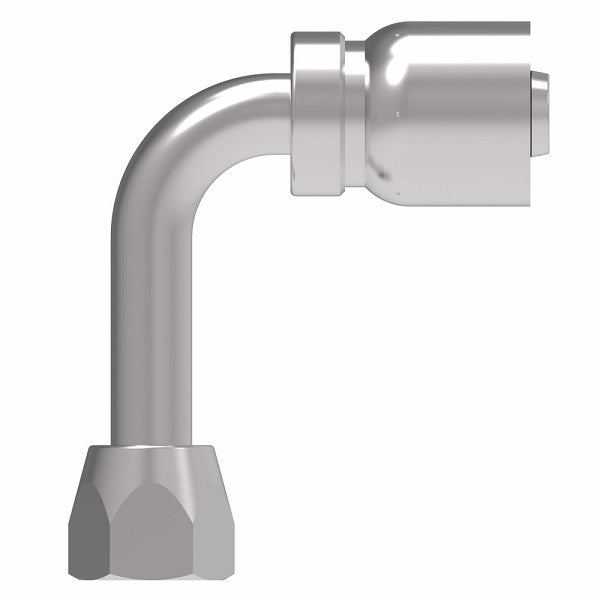

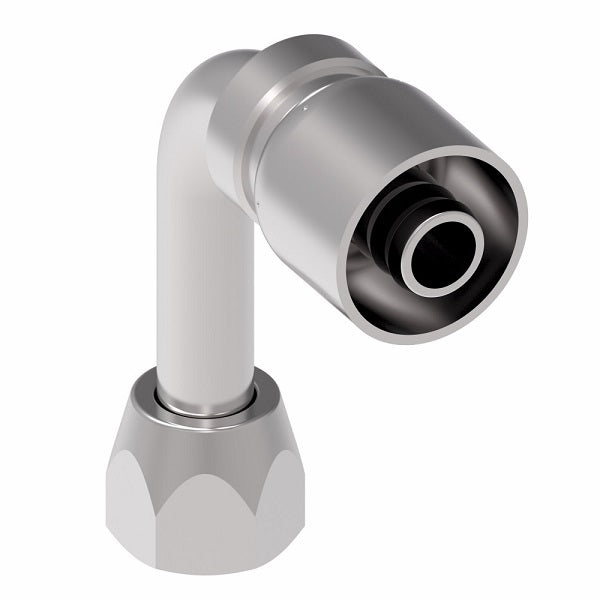

FJ3245-0404S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Hose Barb | Steel
FJ3245-0404S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Hose Barb | Steel | Pack of 10
FJ3245-0404S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Hose Barb | Steel | Pack of 10
FJ3245-0404S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Hose Barb | Steel

FJ3245-0404S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -04 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$335.00 - $335.00
$335.00
$335.00 - $335.00
$335.00

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel Long Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ3245-0404S Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Hose Barb, 1/4in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3245-0404S -04 7/16-20 1.61" 0.83" 1.80" 0.56"
FJ3245-0808S -08 3/4-16 2.19" 1.39" 2.43" 0.88"
FJ3245-0810S -10 3/4-16 2.30" 1.42" 2.43" 0.88"
FJ3245-1010S -10 7/8-14 2.46" 1.57" 2.57" 1.00"
