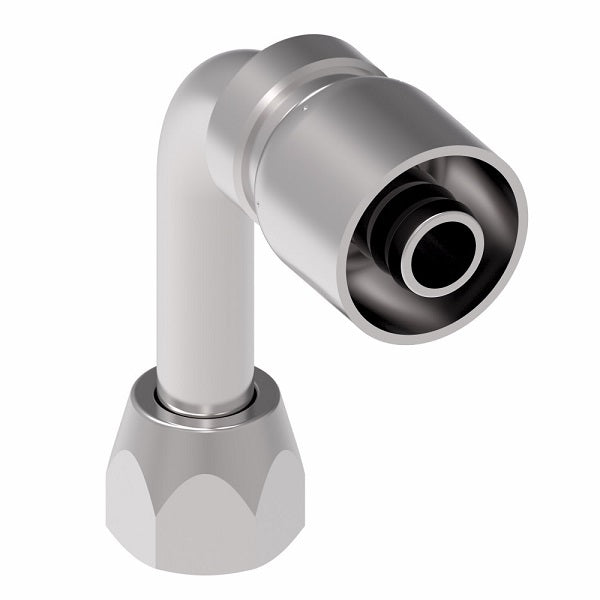

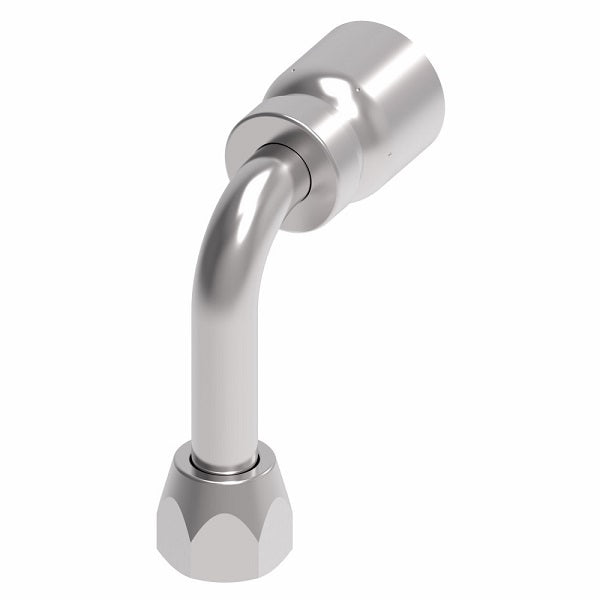

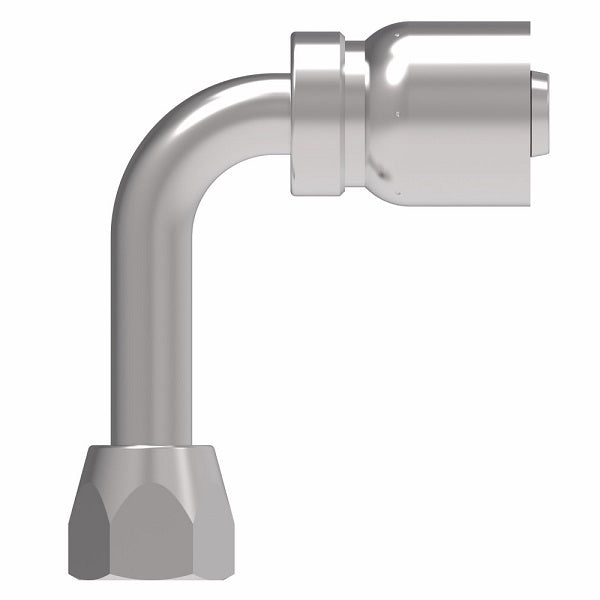

FJ3245-0810S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel

FJ3245-0810S Aeroquip by Danfoss | Female Universal Swivel Long Drop 90° Elbow 100R5 Crimp Fitting | FJ Series | -08 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$606.40 - $606.40

$606.40

$606.40 - $606.40

$606.40

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel Long Drop - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ3245-0810S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 5/8in Hose Barb, 1/2in Female SAE 45 Flare
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3245-0404S	-04	7/16-20	1.61"	0.83"	1.80"	0.56"
FJ3245-0808S	-08	3/4-16	2.19"	1.39"	2.43"	0.88"
FJ3245-0810S	-10	3/4-16	2.30"	1.42"	2.43"	0.88"
FJ3245-1010S	-10	7/8-14	2.46"	1.57"	2.57"	1.00"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
