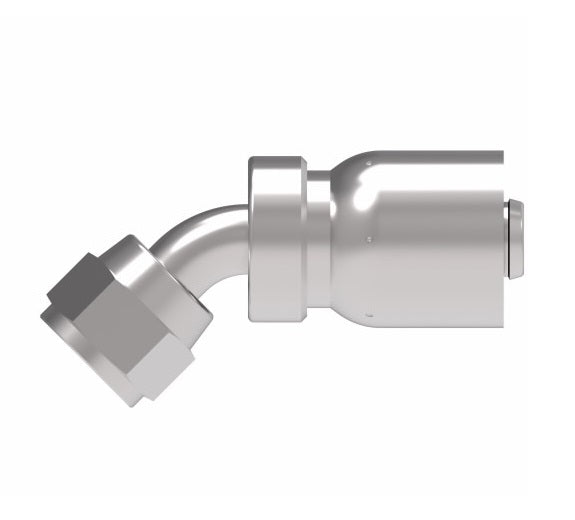

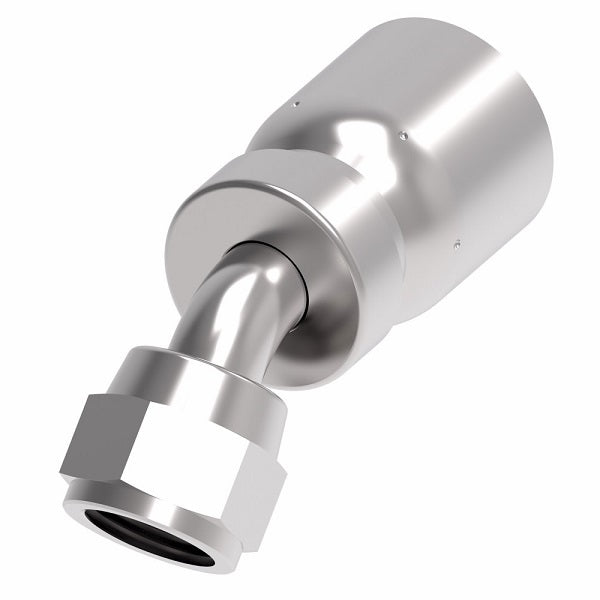

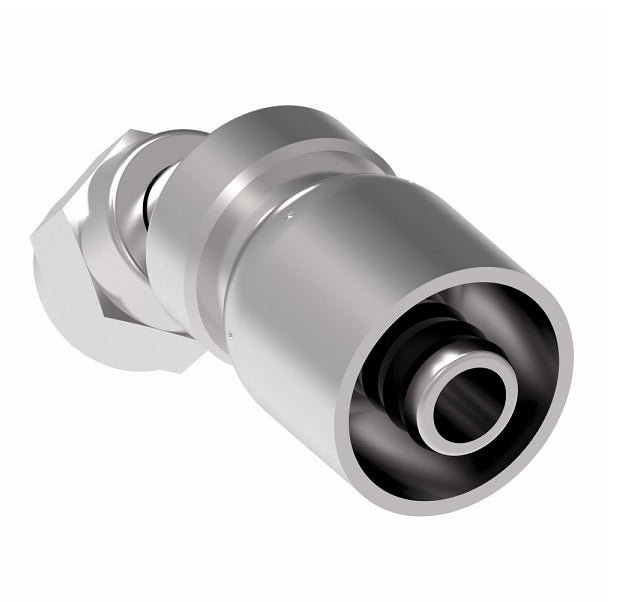

FJ3249-0608S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -08 Hose Barb | Steel

FJ3249-0608S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -08 Hose Barb | Steel

$32.88 - $32.88
$32.88
$32.88 - $32.88
$32.88

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° (JIC) Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ3249-0608S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female JIC, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3249-0606S -06 9/16-18 1.94" 1.15" 0.39" 0.69"
FJ3249-0608S -08 9/16-18 1.96" 1.15" 0.39" 0.69"
FJ3249-1210S -10 1-1/16-12 - 1.94" - 1.25"
FJ3249-1212S -12 1-1/16-12 2.82" 1.94" 0.77" 1.25"
FJ3249-1616S -16 1-5/16-12 3.38" 2.39" 1.07" 1.50"
FJ3249-2020S -20 1-5/8-12 3.96" 2.59" 1.22" 2.00"
