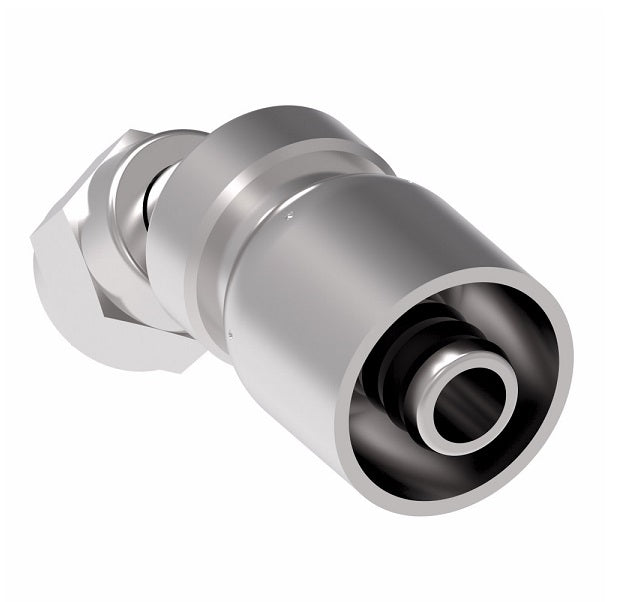

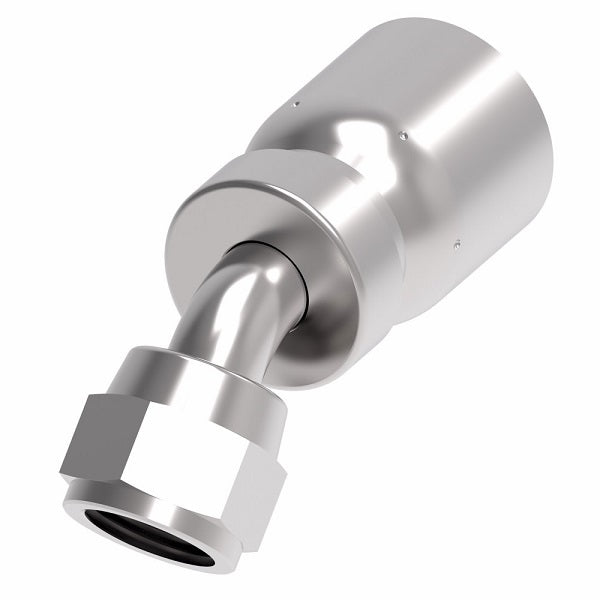

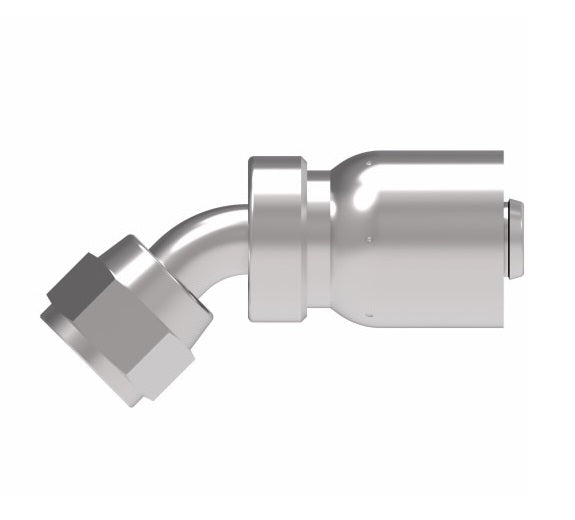

FJ3249-1212S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

Name: FJ3249-1212S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3249-1212S Danfoss
Price: 47.88 USD
Availability: InStock

$47.88 - $47.88

$47.88

$47.88 - $47.88

$47.88

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° (JIC) Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ3249-1212S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3249-0606S	-06	9/16-18	1.94"	1.15"	0.39"	0.69"
FJ3249-0608S	-08	9/16-18	1.96"	1.15"	0.39"	0.69"
FJ3249-1210S	-10	1-1/16-12	-	1.94"	-	1.25"
FJ3249-1212S	-12	1-1/16-12	2.82"	1.94"	0.77"	1.25"
FJ3249-1616S	-16	1-5/16-12	3.38"	2.39"	1.07"	1.50"
FJ3249-2020S	-20	1-5/8-12	3.96"	2.59"	1.22"	2.00"
