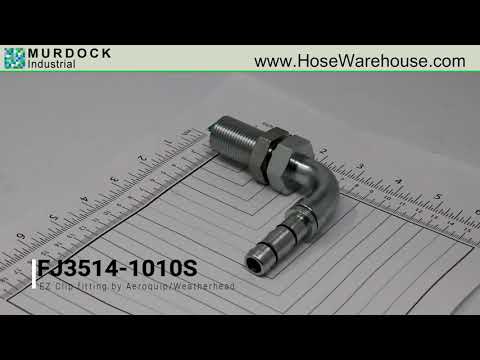

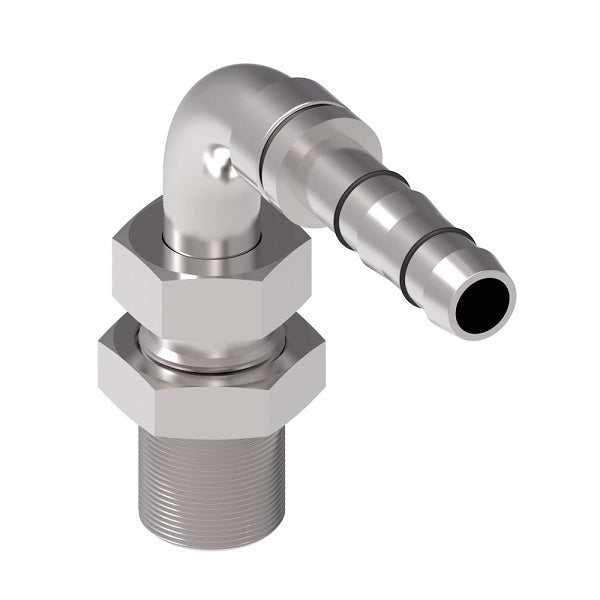

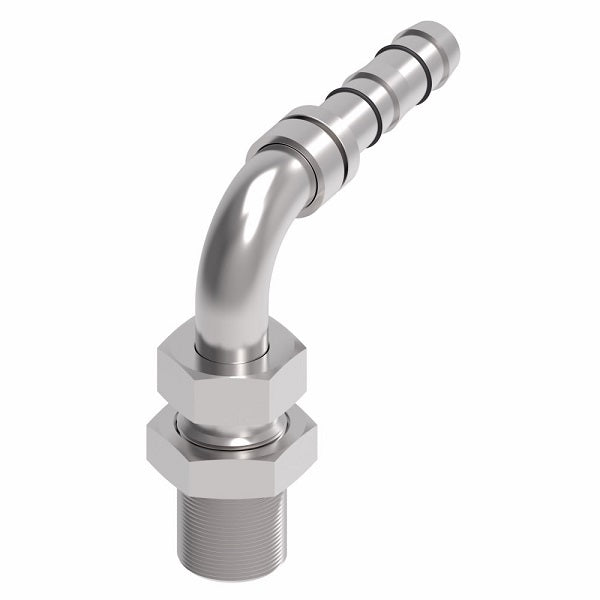

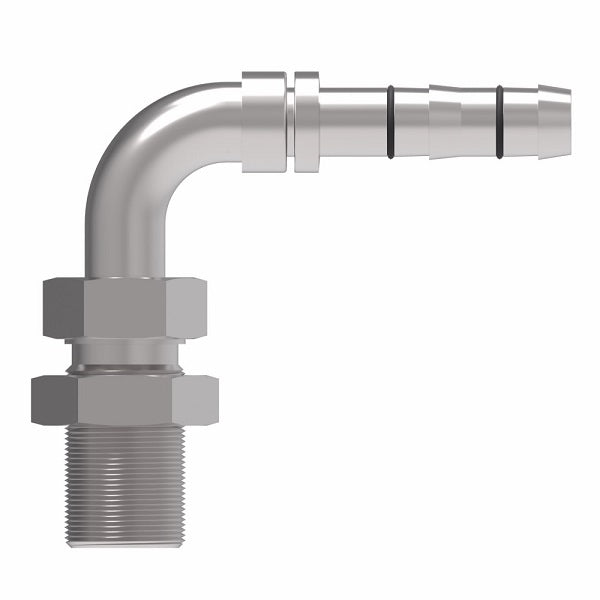

FJ3514-1010S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Pilot x -10 Hose Barb | Steel

FJ3514-1010S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Pilot x -10 Hose Barb | Steel

Name: FJ3514-1010S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Pilot x -10 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3514-1010S Danfoss
Price: 74.76 USD
Availability: InStock

$74.76 - $74.76

$74.76

$74.76 - $74.76

$74.76

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot Bulkhead - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: FJ3514-1010S Danfoss
Brand:	E-Z Clip
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	GH001 Series \| GH134 Series

Additional Information:
E-Z Clip Assembly Instructions & Guide.PDF


Steel Part Number	Thread "T"	Hose Size	A Ref.	D Ref.	H Ref.	Ref.	Clip & Cage Kit (Required)
FJ3514-0606S	5/8-18	-06	2.50"	0.98"	2.15"	0.94"	FF14171
FJ3514-0808S	3/4-16	-08	2.74"	1.20"	2.61"	1.00'	FF14172
FJ3514-0810S	3/4-16	-10	-	-	-	-	FF14173
FJ3514-1010S	7/8-14	-10	3.08"	1.53"	3.26"	1.13"	FF14173
FJ3514-1012S	7/8-14	-12	3.11"	1.53"	3.26"	1.13"	FF14174
FJ3514-1212	1-1/16-14	-12	3.69"	2.11"	3.78"	1.38"	FF14174
FJ3514-1216S	1-1/16-14	-16	3.79"	2.12"	3.80	1.06"	FF14401
