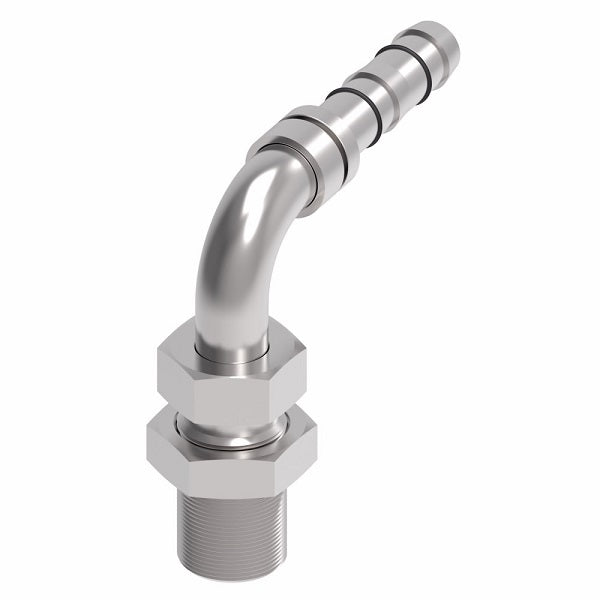

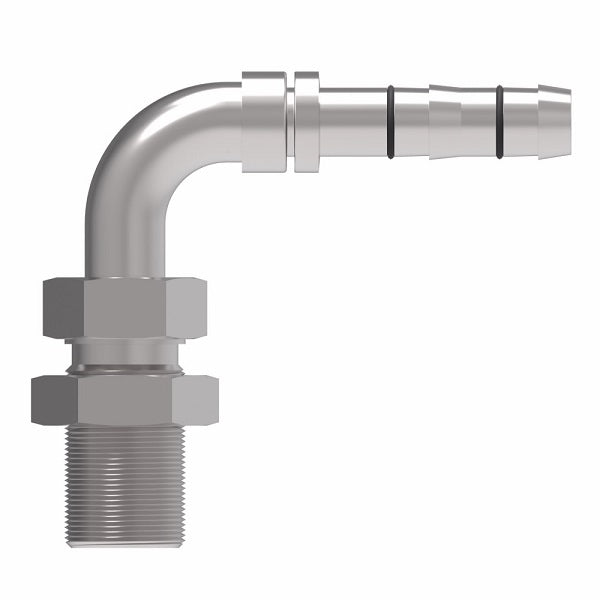

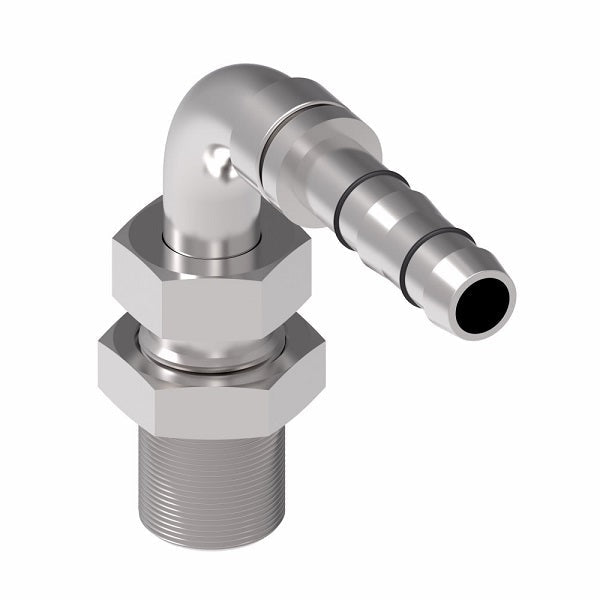

FJ3514-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel
FJ3514-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel | Pack of 10
FJ3514-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel | Pack of 10
FJ3514-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel

FJ3514-1212S E-Z Clip System by Danfoss | Male O-Ring Pilot Bulkhead 90° Elbow | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -12 Hose Barb | Steel | Pack of 10

$1,653.76 - $1,653.76
$1,653.76
$1,653.76 - $1,653.76
$1,653.76

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot Bulkhead - 90° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.


Package Quantity: 10 Units

Specifications for Variant SKU: FJ3514-1212S Danfoss | 10 |
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3514-0606S 5/8-18 -06 2.50" 0.98" 2.15" 0.94" FF14171
FJ3514-0808S 3/4-16 -08 2.74" 1.20" 2.61" 1.00' FF14172
FJ3514-0810S 3/4-16 -10 - - - - FF14173
FJ3514-1010S 7/8-14 -10 3.08" 1.53" 3.26" 1.13" FF14173
FJ3514-1012S 7/8-14 -12 3.11" 1.53" 3.26" 1.13" FF14174
FJ3514-1212 1-1/16-14 -12 3.69" 2.11" 3.78" 1.38" FF14174
FJ3514-1216S 1-1/16-14 -16 3.79" 2.12" 3.80 1.06" FF14401

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
