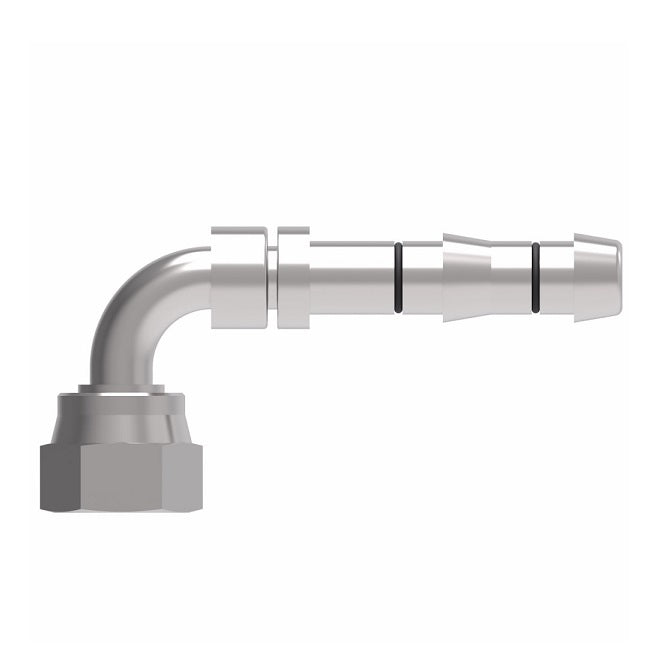

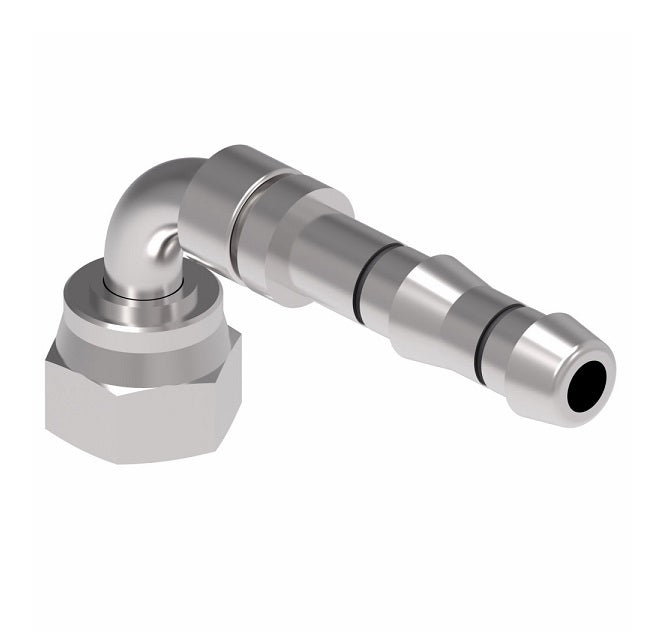

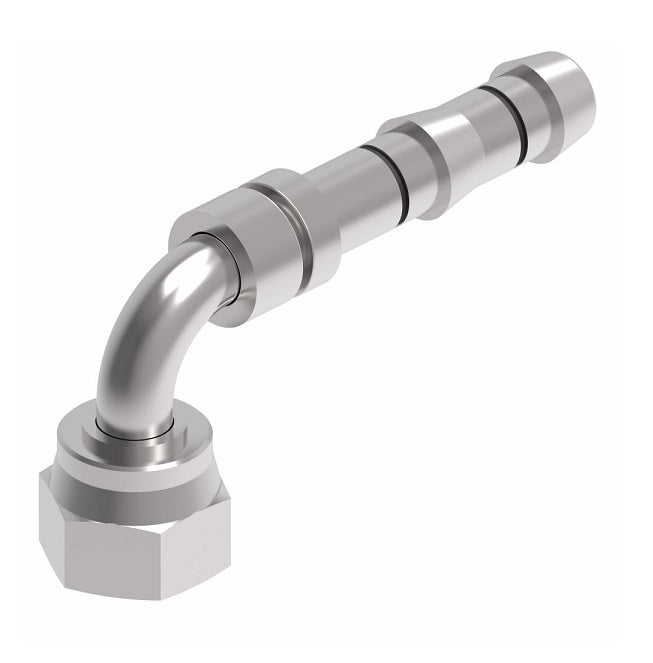

FJ5994-03-1212S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
FJ5994-03-1212S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel | Pack of 10
FJ5994-03-1212S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel | Pack of 10
FJ5994-03-1212S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel

FJ5994-03-1212S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$514.80 - $514.80
$514.80
$514.80 - $514.80
$514.80

Danfoss A/C & Refrigeration
E-Z Clip System - Female ORS Swivel - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ5994-03-1212S Danfoss | 10 |
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ5994-0404S -04 - - - - FF14175
FJ5994-01-0606S 1-1/16-16 -06 2.50" 0.98" 0.91" 0.81" FF14171
FJ5994-02-0808S 13/16-16 -08 2.74" 1.20" 1.15" 0.94" FF14172
FJ5994-04-1010S 1-14 -10 3.09" 1.53" 1.27" 1.12" FF14173
FJ5994-03-1212S 1-3/16-12 -12 3.36" 1.78" 1.90" 1.38" FF14174
FJ5994-05-0406S 9/16-18 -06 2.44" 0.92" 0.82" 0.69" FF14171
FJ5994-05-1012S 1-14 -12 3.11" 1.53" 1.78" 1.13" FF14174
FJ5994-07-0806S 13/16-16 -06 2.66" 1.10" 1.15" 0.94" FF14171
FJ5994-08-1216S 1-3/16-12 -16 - - - - FF14401
FJ5994-10-1616S 1-7/16-12 -16 - - - - FF14401
FJ5994-11-0810S 13/16-16 -10 - - - - FF14173
GA23913-10-12* 1-14 -12 3.67" 2.10" 1.54" 30mm FF14174
GA23913-4-4* 9/16-18 -04 2.04" 1.37" 0.82" 17mm FF14175

* GA Part numbers have a metric hex
