FJ5994-05-0406S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel
FJ5994-05-0406S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10
FJ5994-05-0406S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10
FJ5994-05-0406S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel

FJ5994-05-0406S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$510.20 - $510.20
$510.20
$510.20 - $510.20
$510.20

Danfoss A/C & Refrigeration

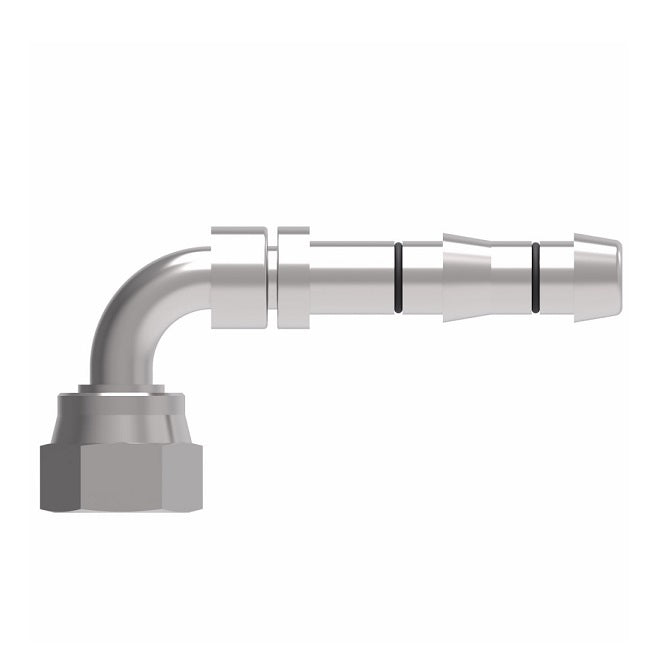

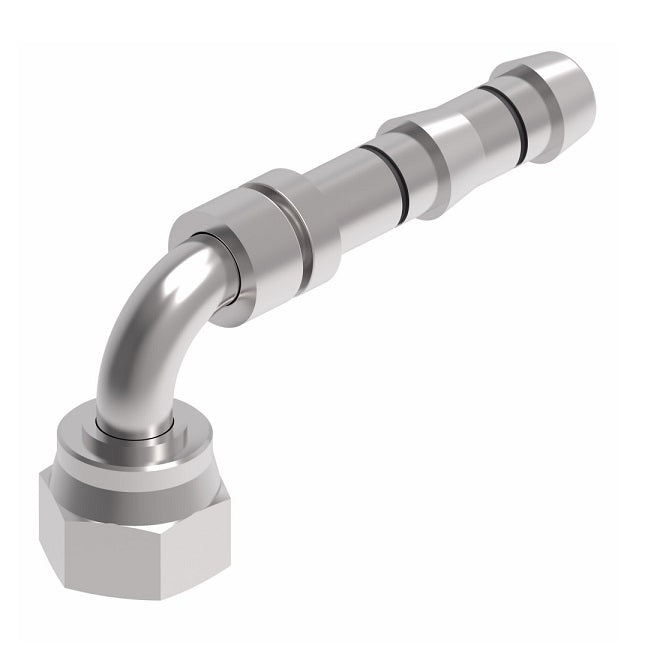

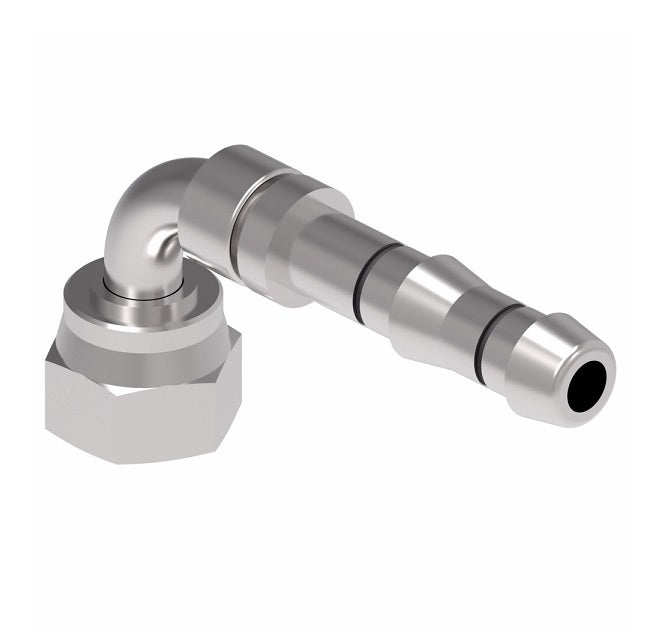

E-Z Clip System - Female ORS Swivel - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ5994-05-0406S Danfoss | 10 |
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ5994-0404S -04 - - - - FF14175
FJ5994-01-0606S 1-1/16-16 -06 2.50" 0.98" 0.91" 0.81" FF14171
FJ5994-02-0808S 13/16-16 -08 2.74" 1.20" 1.15" 0.94" FF14172
FJ5994-04-1010S 1-14 -10 3.09" 1.53" 1.27" 1.12" FF14173
FJ5994-03-1212S 1-3/16-12 -12 3.36" 1.78" 1.90" 1.38" FF14174
FJ5994-05-0406S 9/16-18 -06 2.44" 0.92" 0.82" 0.69" FF14171
FJ5994-05-1012S 1-14 -12 3.11" 1.53" 1.78" 1.13" FF14174
FJ5994-07-0806S 13/16-16 -06 2.66" 1.10" 1.15" 0.94" FF14171
FJ5994-08-1216S 1-3/16-12 -16 - - - - FF14401
FJ5994-10-1616S 1-7/16-12 -16 - - - - FF14401
FJ5994-11-0810S 13/16-16 -10 - - - - FF14173
GA23913-10-12* 1-14 -12 3.67" 2.10" 1.54" 30mm FF14174
GA23913-4-4* 9/16-18 -04 2.04" 1.37" 0.82" 17mm FF14175

* GA Part numbers have a metric hex

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
