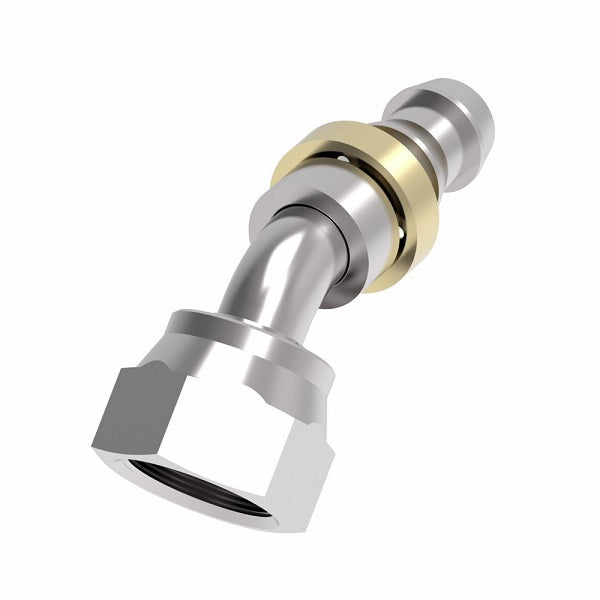

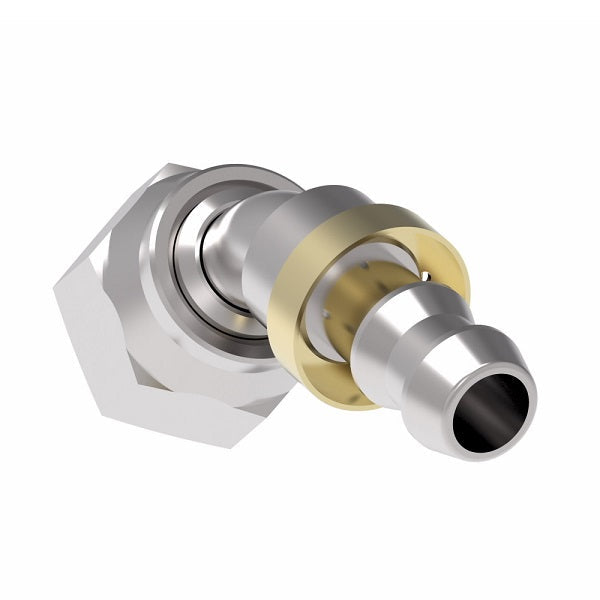

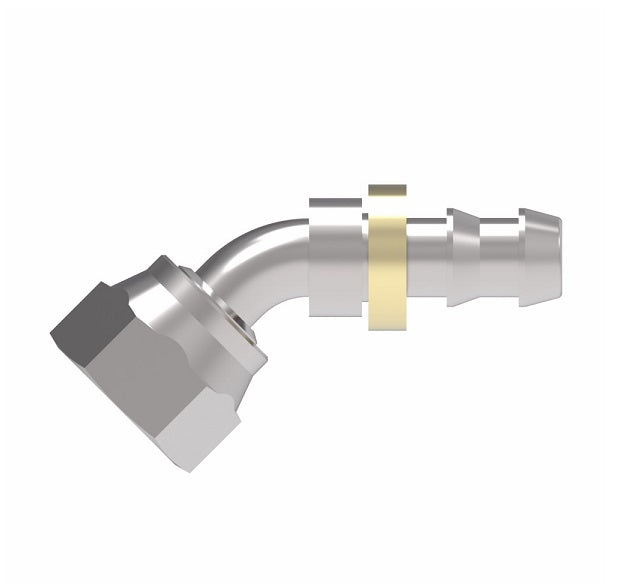

FJ7023-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel
FJ7023-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel
FJ7023-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel
FJ7023-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel

FJ7023-0404S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Push-On Hose Barb | Steel

$197.90 - $197.90
$197.90
$197.90 - $197.90
$197.90

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Female O-Ring Face Seal Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ7023-0404S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Push-On Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2556 Series  |   2565 Series  |   FC332 Series  |   FC647 Series  |   H201 Series  |   35FH Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
FJ7023-0404S -04 9/16-18 1.64" 0.89" 0.17" 0.41"
FJ7023-0606S -06 11/16-16 1.84" 0.97" 0.30" 0.44"
FJ7023-0808S -08 13/16-16 2.34" 1.32" 0.39" 0.59"
FJ7023-1212S -12 1-3/16-12 3.42" 1.90" 0.61" 0.83"
