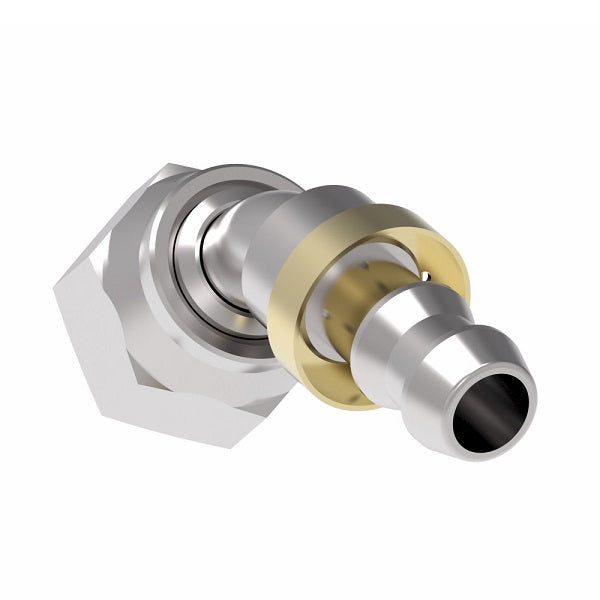

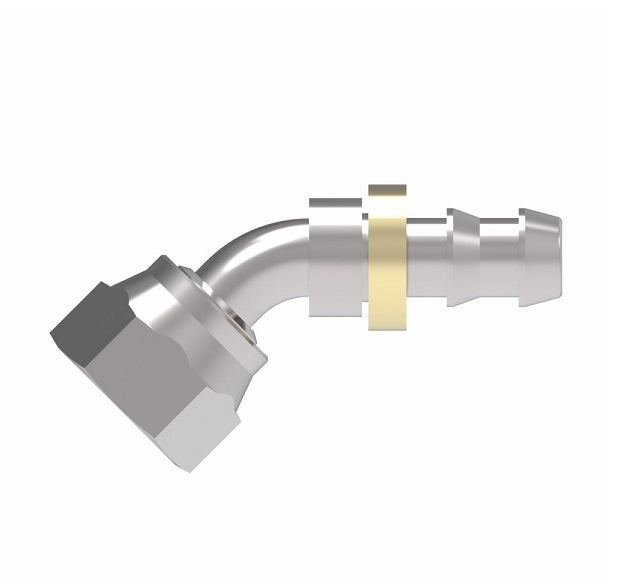

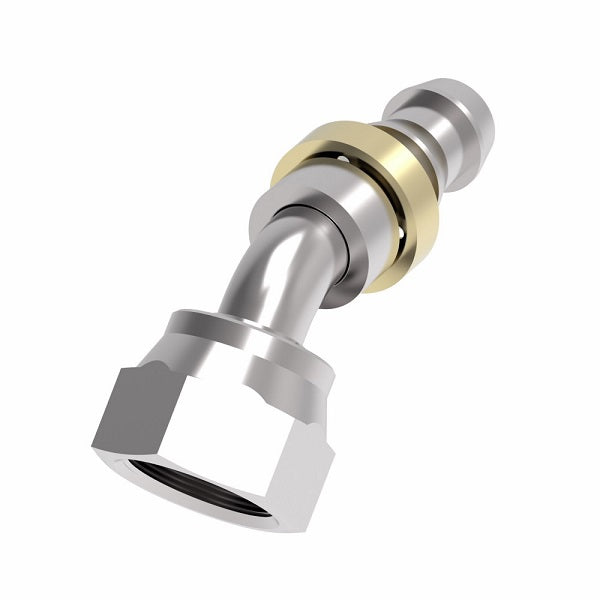

FJ7023-0808S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Push-On Hose Barb | Steel

FJ7023-0808S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Push-On Hose Barb | Steel

Name: FJ7023-0808S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow Socketless Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ7023-0808S Danfoss
Price: 379.58 USD
Availability: InStock

$379.58 - $379.58

$379.58

$379.58 - $379.58

$379.58

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Female O-Ring Face Seal Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ7023-0808S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Push-On Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series \| 35FH Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FJ7023-0404S	-04	9/16-18	1.64"	0.89"	0.17"	0.41"
FJ7023-0606S	-06	11/16-16	1.84"	0.97"	0.30"	0.44"
FJ7023-0808S	-08	13/16-16	2.34"	1.32"	0.39"	0.59"
FJ7023-1212S	-12	1-3/16-12	3.42"	1.90"	0.61"	0.83"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
