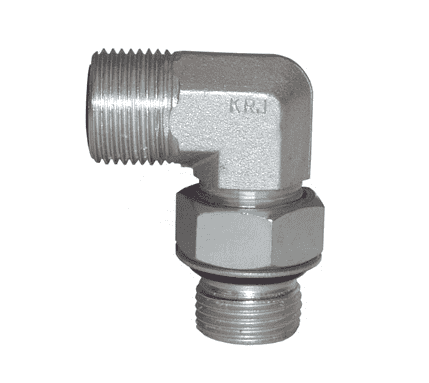

FS6801-12-12 Dixon Zinc Plated Steel 1-3/16"-12 Male Flat Face x 1-1/16"-12 Male SAE O-Ring Boss 90 deg. Elbow

FS6801-12-12 Dixon Valve Zinc Plated Steel 1-3/16"-12 Male Flat Face x 1-1/16"-12 Male SAE O-Ring Boss 90 deg. Elbow

Save $1.62 Save $1.62
$14.58
$14.58 - $14.58
$14.58
$12.96
$12.96 - $12.96
$12.96

Flat Face Fittings - Male Flat Face x Male SAE O-Ring Boss 90 deg. Elbow - Zinc Plated Steel
Specifications for Variant SKU: FS6801-12-12 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Boss
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male Flat Face Male SAE O-Ring Boss Working Pressure Weight (Lbs.)
FS6801-4-4 9/16"-18 7/16"-20 5000 PSI 0.1300
FS6801-6-6 11/16"-16 9/16"-18 5000 PSI 0.2200
FS6801-8-8 13/16"-16 3/4"-16 4500 PSI 0.2900
FS6801-10-10 1"-14 7/8"-14 3500 PSI 0.5800
FS6801-12-12 1-3/16"-12 1-1/16"-12 3500 PSI 0.8600
FS6801-16-16 1-7/16"-12 1-5/16"-12 3000 PSI 1.2600
