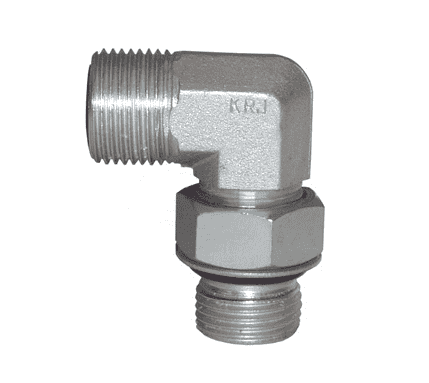

FS6801-8-8 Dixon Zinc Plated Steel 13/16"-16 Male Flat Face x 3/4"-16 Male SAE O-Ring Boss 90 deg. Elbow

FS6801-8-8 Dixon Valve Zinc Plated Steel 13/16"-16 Male Flat Face x 3/4"-16 Male SAE O-Ring Boss 90 deg. Elbow

Save $4.07 Save $4.07
$10.18
$10.18 - $10.18
$10.18
$6.11
$6.11 - $6.11
$6.11

Flat Face Fittings - Male Flat Face x Male SAE O-Ring Boss 90 deg. Elbow - Zinc Plated Steel
Specifications for Variant SKU: FS6801-8-8 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male Flat Face Male SAE O-Ring Boss Working Pressure Weight (Lbs.)
FS6801-4-4 9/16"-18 7/16"-20 5000 PSI 0.1300
FS6801-6-6 11/16"-16 9/16"-18 5000 PSI 0.2200
FS6801-8-8 13/16"-16 3/4"-16 4500 PSI 0.2900
FS6801-10-10 1"-14 7/8"-14 3500 PSI 0.5800
FS6801-12-12 1-3/16"-12 1-1/16"-12 3500 PSI 0.8600
FS6801-16-16 1-7/16"-12 1-5/16"-12 3000 PSI 1.2600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
