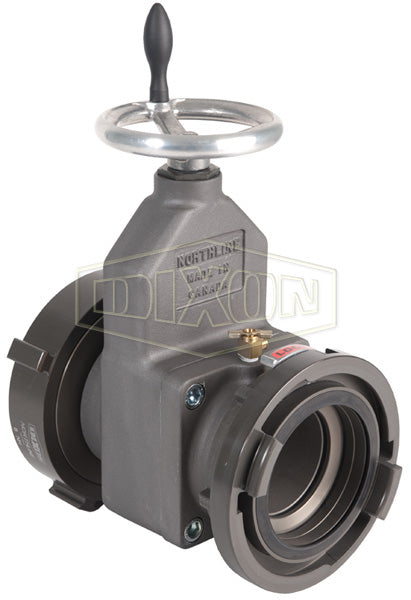

FSGV550F Dixon Aluminum Alloy Large Diameter (LDH) Gate Valve - 5" Storz Inlet x 5" Female NST(NH) Swivel Outlet

FSGV550F Dixon Aluminum Alloy Large Diameter (LDH) Gate Valve - 5" Storz Inlet x 5" Female NST(NH) Swivel Outlet

Save $1,153.30 Save $1,153.30
$2,883.25
$2,883.25 - $2,883.25
$2,883.25
$1,729.95
$1,729.95 - $1,729.95
$1,729.95

Dixon Fire Fittings
Large Diameter (LDH) Gate Valve

Used on the suction intake and discharge sides of a pumper or on a hydrant.
Specifications for Variant SKU: FSGV550F Dixon
Shape (Orientation): Straight
Ends Configuration: 5in Storz, 5in Female NST
Material(s): Aluminum
Features:
  • 30° elbow needs only 8 easy turns to open and close.
  • Non-rising stem, with an air bleed off.
  • Finish anodized throughout - minimum thickness 0.001". (Aluminum Alloy, 356-T6)
  • Maximum operating pressure: 280 PSI at 70°F (21°C), without relief valve.
  • 4-1/2" minimum waterway.
Part Number Inlet Outlet Length Width Height
Storz x Storz
SGV440 4" Storz 4" Storz 9" 6-1/4" 19-1/2"
SGV450 4" Storz 5" Storz 9" 7-3/4" 19-1/2"
SGV540 5" Storz 4" Storz 9" 7-3/4" 19-1/2"
SGV550 5" Storz 5" Storz 9" 7-3/4" 19-1/2"
Storz x Storz 30° with Air Bleeder
SGV30-440 4" Storz 4" 30° Storz 9" 6-1/4" 20"
SGV30-450 4" Storz 5" 30° Storz 9" 7-3/4" 20"
SGV30-540 5" Storz 4" 30° Storz 9" 7-3/4" 20"
SGV30-550 5" Storz 5" 30° Storz 9" 7-3/4" 20"
Storz x Female Swivel
FSGV440F 4" Storz 4" Female NST(NH) 9" 6" 19-1/2"
FSGV445F 4" Storz 4-1/2" Female NST(NH) 9" 6-1/2" 19-1/2"
FSGV450F 4" Storz 5" Female NST(NH) 9" 7" 19-1/2"
FSGV460F 4" Storz 6" Female NST(NH) 9" 8" 19-1/2"
FSGV540F 5" Storz 4" Female NST(NH) 9" 6" 19-1/2"
FSGV545F 5" Storz 4-1/2" Female NST(NH) 9" 6-1/2" 19-1/2"
FSGV550F 5" Storz 5" Female NST(NH) 9" 7" 19-1/2"
FSGV560F 5" Storz 6" Female NST(NH) 9" 8" 19-1/2"

All measurements include handles
