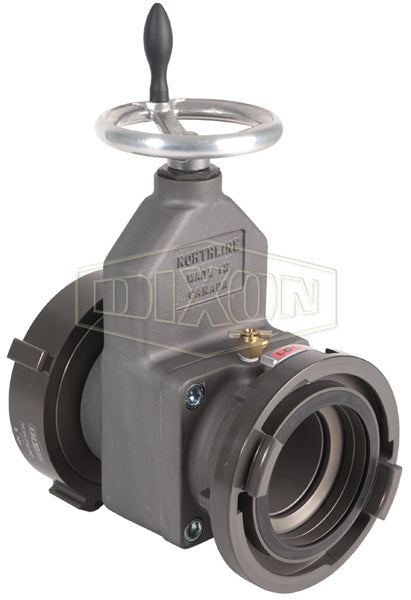

FSGV560F Dixon Aluminum Alloy Large Diameter (LDH) Gate Valve - 5" Storz Inlet x 6" Female NST(NH) Swivel Outlet

Name: FSGV560F Dixon Aluminum Alloy Large Diameter (LDH) Gate Valve - 5" Storz Inlet x 6" Female NST(NH) Swivel Outlet
Brand: Dixon
SKU: FSGV560F Dixon
Price: 1687.41 USD
Availability: InStock

Save $201.51

$1,888.92

$1,888.92 - $1,888.92

$1,888.92

$1,687.41

$1,687.41 - $1,687.41

$1,687.41

Dixon Fire Fittings
Large Diameter (LDH) Gate Valve

Used on the suction intake and discharge sides of a pumper or on a hydrant.

Quantity

Specifications for Variant SKU: FSGV560F Dixon
Shape (Orientation):	Straight
Ends Configuration:	5in Storz, 6in Female NST
Material(s):	Aluminum

Features:
30° elbow needs only 8 easy turns to open and close. Non-rising stem, with an air bleed off. Finish anodized throughout - minimum thickness 0.001". (Aluminum Alloy, 356-T6) Maximum operating pressure: 280 PSI at 70°F (21°C), without relief valve. 4-1/2" minimum waterway.

Part Number	Inlet	Outlet	Length	Width	Height
Storz x Storz
SGV440	4" Storz	4" Storz	9"	6-1/4"	19-1/2"
SGV450	4" Storz	5" Storz	9"	7-3/4"	19-1/2"
SGV540	5" Storz	4" Storz	9"	7-3/4"	19-1/2"
SGV550	5" Storz	5" Storz	9"	7-3/4"	19-1/2"
Storz x Storz 30° with Air Bleeder
SGV30-440	4" Storz	4" 30° Storz	9"	6-1/4"	20"
SGV30-450	4" Storz	5" 30° Storz	9"	7-3/4"	20"
SGV30-540	5" Storz	4" 30° Storz	9"	7-3/4"	20"
SGV30-550	5" Storz	5" 30° Storz	9"	7-3/4"	20"
Storz x Female Swivel
FSGV440F	4" Storz	4" Female NST(NH)	9"	6"	19-1/2"
FSGV445F	4" Storz	4-1/2" Female NST(NH)	9"	6-1/2"	19-1/2"
FSGV450F	4" Storz	5" Female NST(NH)	9"	7"	19-1/2"
FSGV460F	4" Storz	6" Female NST(NH)	9"	8"	19-1/2"
FSGV540F	5" Storz	4" Female NST(NH)	9"	6"	19-1/2"
FSGV545F	5" Storz	4-1/2" Female NST(NH)	9"	6-1/2"	19-1/2"
FSGV550F	5" Storz	5" Female NST(NH)	9"	7"	19-1/2"
FSGV560F	5" Storz	6" Female NST(NH)	9"	8"	19-1/2"

All measurements include handles

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
