FT600P by Dixon Valve | API Compatible Rack Cord Thermistor Assembly | 8-Pin, 2J, API Thermistor Plug, & 30' Safety Orange Coiled Cable with 13-Pin Plug-n-Play

FT600P by Dixon Valve | API Compatible Rack Cord Thermistor Assembly | 8-Pin, 2J, API Thermistor Plug, & 30' Safety Orange Coiled Cable with 13-Pin Plug-n-Play

Save $52.66 Save $52.66
$1,260.73
$1,260.73 - $1,260.73
$1,260.73
$1,208.07
$1,208.07 - $1,208.07
$1,208.07

Dixon Valve
API-Compatible Rack Cord Thermistor Assembly

API loading rack cords are used to connect the loading rack monitor to the socket on the fuel tanker.
Specifications for Variant SKU: FT600P Dixon
Compatibility & Interchange Data:
  • Cord sets are interchangeable with Civacon and Scully.
  • Compatible with API thermistor configurations.
  • All wiring is compatible with standard SCully color codes and wiring number configurations.
  • The 9-pin conductor is shielded to be compatible with the Scully VIP system.
Features:

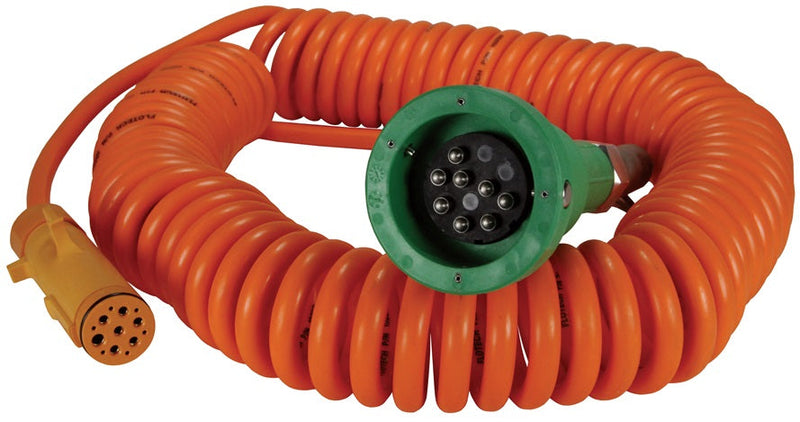

  • Green plug with 8 contact pins and 4 J slots on a 30' orange coiled cord and 13 pin connector nylon J560 plug.
  • The cord is bonded mechanically and has superior abrasion and oil resistance.
  • The cord features a heavy, highly visible, safety orange jacket to meet trip hazard requirements.
Construction:
  • Plug body is reinforced nylon.
  • Button contacts are 316 stainless steel to prevent corrosion or galling.
Part Number Description Details
FT7000 API-Compatible Rack Monitor Auto Switch Between 2-Wire / 5-Wire Sensors, Ground Verification, & Trailer Identification Modules; API RP 1004 / EN13922
Other API-Compatible Systems
Part Number Description Details
Safe-T Connect Junction Box Description
FT7600 API-Compatible FloTech® Junction Box 8-Pin, 2J, Green API Plug, & 30' Safety Orange Coiled Cable
FT7600P API-Compatible FloTech® Junction Box 8-Pin, 2J, Green API Plug, 30' Safety Orange Coiled Cable, & Plug-n-Play Connector
FT7600S API-Compatible FloTech® Junction Box 8-Pin, 2J, Green API Plug, & 20' Safety Orange Straight Cable
FT7620 API-Compatible FloTech® Junction Box 6-Pin, 3J, Blue API Plug, & 30' Blue Coiled Cable
FT7620P API-Compatible FloTech® Junction Box 6-Pin, 3J, Blue API Plug, 30' Blue Coiled Cable, & Plug-n-Play Connector
FT7620S API-Compatible FloTech® Junction Box 6-Pin, 3J, Blue API Plug, 30' Blue Coiled Cable, & Plug-n-Play Connector
FT7630 API-Compatible FloTech® Junction Box 10-pin, 4J, Black Plug Per EN13922, & 30' Blue Shielded Coiled Cable
FT7630D API-Compatible FloTech® Junction Box 10-pin, 4J, Black Plug Per EN13922, & 30' Blue Shielded Coiled Cable with Dixon Bayco® Break-Away
Junction Box Description
FT7500 API-Compatible Single Cord Junction Box -
FT7501 API-Compatible Dual Cord Junction Box -
FT7502 API-Compatible Pull-Away Socket Junction Box with Cole Hersee Yellow 13-Pin Break-Away
FT7503 API-Compatible Junction Box with D-type Pigtail Break-Away
Rack Cord Description
FT600 API-Compatible Rack Cord Thermistor Assembly 8-Pin, 2J, API Thermistor Plug, & 30' Safety Orange Coiled Cable
FT600C API Compatible Rack Cord Thermistor Assembly 10-Pin, 4J, API Thermistor Plug, & 30' Safety Orange Coiled Cable
FT600P API Compatible Rack Cord Thermistor Assembly 8-Pin, 2J, API Thermistor Plug, & 30' Safety Orange Coiled Cable with 13-Pin Plug-n-Play
FT600S API Compatible Rack Cord Thermistor Assembly 8-Pin, 2J, API Thermistor Plug, & 20' Safety Orange Straight Cable
FT620 API Compatible Rack Cord Optic Assembly 6-Pin, 3J, API Optic Plug, & 30' Blue Coiled Cable
FT620P API Compatible Rack Cord Optic Assembly 6-Pin, 3J, API Optic Plug, 30' Blue Coiled Cable & Plug-n-Play Connector
FT620S API Compatible Rack Cord Optic Assembly 6-Pin, 3J, API Optic Plug, & 20' Blue Straight Cable
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
