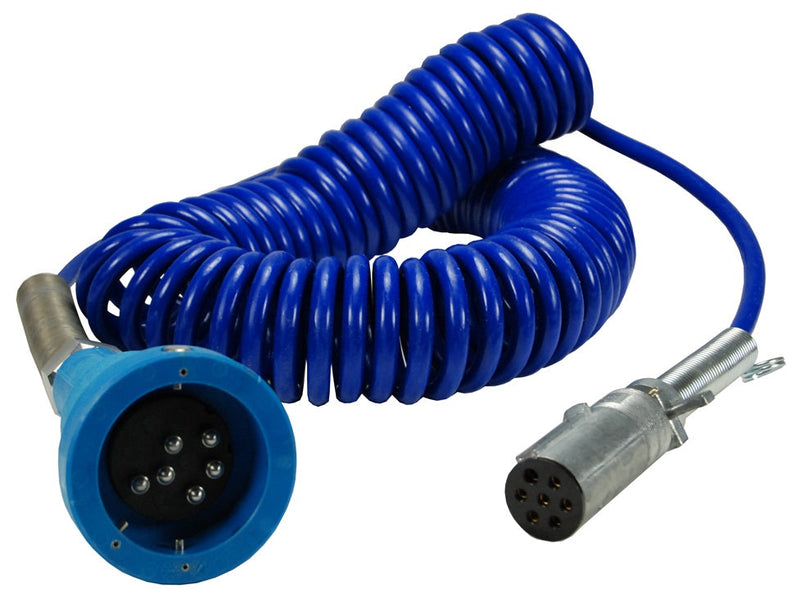

FT620P by Dixon Valve | API Compatible Rack Cord Optic Assembly | 6-Pin, 3J, API Optic Plug, 30' Blue Coiled Cable & Plug-n-Play Connector

FT620P by Dixon Valve | API Compatible Rack Cord Optic Assembly | 6-Pin, 3J, API Optic Plug, 30' Blue Coiled Cable & Plug-n-Play Connector

Save $138.33 Save $138.33
$1,346.16
$1,346.16 - $1,346.16
$1,346.16
$1,207.83
$1,207.83 - $1,207.83
$1,207.83

Dixon Valve
API Compatible Rack Cord Optic Assembly

API loading rack cords are used to connect the loading rack monitor to the socket on the fuel tanker.
Specifications for Variant SKU: FT620P Dixon
Compatibility & Interchange Data:
  • Compatible with API optic configurations.
  • Cord sets are interchangeable with Civacon and Scully.
  • All wiring is compatible with standard Scully color codes and wiring number configurations.
  • The 9-pin conductor is shielded to be compatible with the Scully VIP system.
Features:
  • 6 pin, 3J, optic plug, and 30' blue coiled cable, with Plug-n-Play connector.
  • The cord features a heavy, highly visible, safety blue jacket to meet trip hazard requirements.
  • The cord is bonded mechanically and has superior abrasion and oil resistance.
Construction:
  • Button contacts are 316 stainless steel to prevent corrosion or galling.
Part Number Description Details
FT7000 API-Compatible Rack Monitor Auto Switch Between 2-Wire / 5-Wire Sensors, Ground Verification, & Trailer Identification Modules; API RP 1004 / EN13922
Other API-Compatible Systems
Part Number Description Details
Safe-T Connect Junction Box Description
FT7600 API-Compatible FloTech® Junction Box 8-Pin, 2J, Green API Plug, & 30' Safety Orange Coiled Cable
FT7600P API-Compatible FloTech® Junction Box 8-Pin, 2J, Green API Plug, 30' Safety Orange Coiled Cable, & Plug-n-Play Connector
FT7600S API-Compatible FloTech® Junction Box 8-Pin, 2J, Green API Plug, & 20' Safety Orange Straight Cable
FT7620 API-Compatible FloTech® Junction Box 6-Pin, 3J, Blue API Plug, & 30' Blue Coiled Cable
FT7620P API-Compatible FloTech® Junction Box 6-Pin, 3J, Blue API Plug, 30' Blue Coiled Cable, & Plug-n-Play Connector
FT7620S API-Compatible FloTech® Junction Box 6-Pin, 3J, Blue API Plug, 30' Blue Coiled Cable, & Plug-n-Play Connector
FT7630 API-Compatible FloTech® Junction Box 10-pin, 4J, Black Plug Per EN13922, & 30' Blue Shielded Coiled Cable
FT7630D API-Compatible FloTech® Junction Box 10-pin, 4J, Black Plug Per EN13922, & 30' Blue Shielded Coiled Cable with Dixon Bayco® Break-Away
Junction Box Description
FT7500 API-Compatible Single Cord Junction Box -
FT7501 API-Compatible Dual Cord Junction Box -
FT7502 API-Compatible Pull-Away Socket Junction Box with Cole Hersee Yellow 13-Pin Break-Away
FT7503 API-Compatible Junction Box with D-type Pigtail Break-Away
Rack Cord Description
FT600 API-Compatible Rack Cord Thermistor Assembly 8-Pin, 2J, API Thermistor Plug, & 30' Safety Orange Coiled Cable
FT600C API Compatible Rack Cord Thermistor Assembly 10-Pin, 4J, API Thermistor Plug, & 30' Safety Orange Coiled Cable
FT600P API Compatible Rack Cord Thermistor Assembly 8-Pin, 2J, API Thermistor Plug, & 30' Safety Orange Coiled Cable with 13-Pin Plug-n-Play
FT600S API Compatible Rack Cord Thermistor Assembly 8-Pin, 2J, API Thermistor Plug, & 20' Safety Orange Straight Cable
FT620 API Compatible Rack Cord Optic Assembly 6-Pin, 3J, API Optic Plug, & 30' Blue Coiled Cable
FT620P API Compatible Rack Cord Optic Assembly 6-Pin, 3J, API Optic Plug, 30' Blue Coiled Cable & Plug-n-Play Connector
FT620S API Compatible Rack Cord Optic Assembly 6-Pin, 3J, API Optic Plug, & 20' Blue Straight Cable
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
