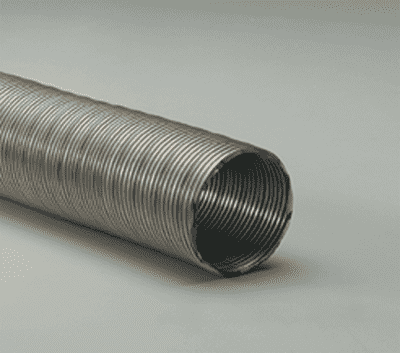

5-Bendway-Plus-25 Flexaust Bendway Plus 5 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft
5-Bendway-Plus-25 Flexaust Bendway Plus 5 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft
5-Bendway-Plus-25 Flexaust Bendway Plus 5 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft
5-Bendway-Plus-25 Flexaust Bendway Plus 5 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

5-Bendway-Plus-25 by Flexaust | #5350500025 | Bendway Plus | Air, Fume, Dust, and Material Handling Duct Hose | 5 inch | 25ft

Save $79.81 Save $79.81
$798.14
$798.14 - $798.14
$798.14
$718.33
$718.33 - $718.33
$718.33

Flexaust Bendway® Plus Air and Fume Duct Hose Manufactured using 316Ti Stainless Steel in a patented roll lock construction

Package Quantity: 25 FT

Specifications for Variant SKU: 5-Bendway-Plus-25 Flexaust | 25 |
Brand: Bendway
Series: Bendway Plus
Hose Color(s): Metallic
Internal Diameter: 5in
Tubing Construction: 316 Stainless Steel

SPECIFICATIONS

Applications: Brick Kilns, Chemical Fume Extraction, Chemical Plants, Circuit Board Cooling, Diesel/Engine Exhaust, Dynamometer Testing, Foundries, Fume Exhaust, Jet Fuel Vapor Venting, Paper Trim Conduit, Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: 316Ti Stainless Steel
Reinforcement: N/A Cover: N/A
Temperature Range: 0 deg. F to 1650 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Durable corrugations allow product to be dragged, bent, & reshaped numerous times without damage or breaking.
  • Suitable for fume & air exhaust applications with extremely high temperatures.
  • Very flexible.
  • Titanium stabilized 316 stainless alloy for superior high temperature corrosion resistance.
  • Suitable for chemical fume exhausting, high temperature, & corrosive applications where both positive & negative pressures are involved.
Part Number 25 ft Reels Part Number 15 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 15ft (Lbs/Ft)
Bendway Plus 3in N/A 3" .006" 13" N/A 29 18 11.75 lbs N/A
Bendway Plus 4in N/A 4" .006" 15" N/A 29 15 16 lbs N/A
Bendway Plus 5in N/A 5" .006" 17" N/A 29 13 20 lbs N/A
Bendway Plus 5.5in N/A 5.5" .006" 19" N/A 29 12 21.25 lbs N/A
Bendway Plus 6in N/A 6" .006" 24" N/A 29 11 23 lbs N/A
Bendway Plus 7in N/A 7" .006" 26" N/A 29 9.5 26.5 lbs N/A
Bendway Plus 8in N/A 8" .006" 28" N/A 29 8.5 30 lbs N/A
N/A Bendway Plus 9in 9" .006" 30" N/A 29 18 N/A 20.7 lbs
N/A Bendway Plus 10in 10" .006" 32" N/A 29 6 N/A 23.25 lbs
N/A Bendway Plus 11in 11" .006" 34" N/A 29 5.5 N/A 25.35 lbs
N/A Bendway Plus 12in 12" .006" 37" N/A 29 5 N/A 27.45 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
