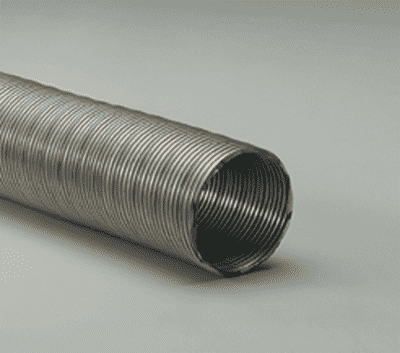

7-Bendway-Plus-25 Flexaust Bendway Plus 7 inch Air, Fume, Dust, and Material Handling Duct Hose - 25ft

7-Bendway-Plus-25 by Flexaust | #5350700025 | Bendway Plus | Air, Fume, Dust, and Material Handling Duct Hose | 7 inch | 25ft

Save $652.50

$1,631.25

$1,631.25 - $1,631.25

$1,631.25

$978.75

$978.75 - $978.75

$978.75

Flexaust Bendway® Plus Air and Fume Duct Hose Manufactured using 316Ti Stainless Steel in a patented roll lock construction

Package Quantity: 25 FT

Specifications for Variant SKU: 7-Bendway-Plus-25 Flexaust \| 25 \|
Brand:	Bendway
Series:	Bendway Plus
Hose Color(s):	Metallic
Internal Diameter:	7in
Tubing Construction:	316 Stainless Steel

SPECIFICATIONS

Other Features:
Applications:	Brick Kilns, Chemical Fume Extraction, Chemical Plants, Circuit Board Cooling, Diesel/Engine Exhaust, Dynamometer Testing, Foundries, Fume Exhaust, Jet Fuel Vapor Venting, Paper Trim Conduit, Ventilation	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	316Ti Stainless Steel
Reinforcement:	N/A	Cover:	N/A
Temperature Range:	0 deg. F to 1650 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Durable corrugations allow product to be dragged, bent, & reshaped numerous times without damage or breaking. Suitable for fume & air exhaust applications with extremely high temperatures. Very flexible. Titanium stabilized 316 stainless alloy for superior high temperature corrosion resistance. Suitable for chemical fume exhausting, high temperature, & corrosive applications where both positive & negative pressures are involved.

Part Number 25 ft Reels	Part Number 15 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 15ft (Lbs/Ft)
Bendway Plus 3in	N/A	3"	.006"	13"	N/A	29	18	11.75 lbs	N/A
Bendway Plus 4in	N/A	4"	.006"	15"	N/A	29	15	16 lbs	N/A
Bendway Plus 5in	N/A	5"	.006"	17"	N/A	29	13	20 lbs	N/A
Bendway Plus 5.5in	N/A	5.5"	.006"	19"	N/A	29	12	21.25 lbs	N/A
Bendway Plus 6in	N/A	6"	.006"	24"	N/A	29	11	23 lbs	N/A
Bendway Plus 7in	N/A	7"	.006"	26"	N/A	29	9.5	26.5 lbs	N/A
Bendway Plus 8in	N/A	8"	.006"	28"	N/A	29	8.5	30 lbs	N/A
N/A	Bendway Plus 9in	9"	.006"	30"	N/A	29	18	N/A	20.7 lbs
N/A	Bendway Plus 10in	10"	.006"	32"	N/A	29	6	N/A	23.25 lbs
N/A	Bendway Plus 11in	11"	.006"	34"	N/A	29	5.5	N/A	25.35 lbs
N/A	Bendway Plus 12in	12"	.006"	37"	N/A	29	5	N/A	27.45 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
